Secure Method Invocation in JASON
In this paper we describe the Secure Method Invocation (SMI) framework implemented for JASON, our Javacard As Secure Objects Networks platform. JASON realises the secure object store paradigm, that reconciles the card-as-storage-element and card-as-processing-element views. In this paradigm, smart cards are viewed as secure containers for objects, whose methods can be called straightforwardly and securely using SMI. JASON is currently being developed as a middleware layer that securely interconnects an arbitrary number of smart cards, terminals and back-office systems over the Internet.
JavaCard1 [Che00] technology makes it possible to develop software for a smart card using a high level language: JAVA. This technology is platform independent, it can handle multiple applications (each running securely within its own sandbox) on one smart card, post-issuance applications can be added to it and it is compatible with international standards like ISO7816 [ISO7816].
In fact, the JavaCard platform brought high level, Object Oriented Programming (OOP) to the smart card developer. Unfortunately, the OOP paradigm is only applied to the software within the smart card itself: invoking methods implemented by objects on the smart card still requires the developer to send commands to the smart card using Application Protocol Data Units (APDU's) [ISO7816], which have to be processed and transformed into method calls `by hand'.
It would be much more natural to view an object stored on a JavaCard as a remote object, accessible through a remote method invocation mechanism. In fact, if we look at a smart card application at a higher level of abstraction, we basically see a large collection of interconnected objects. Some of these objects are stored in back offices, others in terminals or PC's and many more stored securely on millions of smart cards. This network is highly dynamic: smart cards are usually offline, and only connect to the network when they are inserted into a terminal (or when they connect to a terminal over a wireless interface in the case of contactless cards). Much more importantly, this network needs to be highly secure. Access to certain objects should be restricted, and the confidentiality and authenticity of the communication between the objects has to be guaranteed.
Hartel [HJF95] pose that a smart card should be seen as a processing element rather than a storage element (as is traditionally done). In our opinion these views are not contradictory at all, but rather supplement each other nicely in the secure object store paradigm. In this paradigm, smart cards are viewed as secure containers for objects, whose methods can be called straightforwardly and securely using Secure Method Invocation (SMI). We are currently developing the Javacards As Secure Objects Network (JASON) platform as a middleware layer (on these smart cards, terminals, PC's and back office systems) to support this paradigm. By simplifying the communication with a smart card, and by providing extensive support to secure this communication, JASON aims to greatly simplify the development of smart card applications.
In this paper we will describe the JASON Secure Method Invocation (SMI) scheme. In this scheme, a JASON definition file (JDF) (resembling a JAVA interface with some additional keywords) is used to specify the access conditions on methods of an object. It also specifies how the parameters of a method call and the result should be protected when transmitted between caller and callee. The JDF is compiled into a stub (used by the caller to set up a connection with the object and to call its methods) and a skeleton (used by the callee to accept incoming method invocation requests and to handle the security requirements). The big advantage is that the smart card application developer only needs to specify the security requirements, but does not have to implement the security protocols himself. This is done automatically, given the requirements.
The remainder of this paper is organised as follows. We first present related research in the next section. Then, the main requirements for the JASON platform are presented in Sect. 2. The design (in terms of the application programmers view on JASON) is given in Sect. 3. Section 4 discusses the architecture and the way the JASON SMI is actually implemented, while Sect. 5 presents a small example of using JASON to implement a basic electronic purse. Finally, conclusions and issues for further research appear in Sect. 6
Itoi [IFH00] add security to the Internet infrastructure for smart cards developed by Guthery [Gut00,GBPR00] and Rees [RH00], adding the Simple Password Exponential Key Exchange (SPEKE) protocol and using the DNS as a location independent naming scheme for the smart cards involved. These aspects will be taken into account in the networking and naming part of the JASON platform.
Hagimont and Vandewalle [DH00] apply a different approach to enforcing access control on (remote) objects. Their JCCAP system uses capabilities to specify which methods of an object can be accessed by the owner of that capability. Capabilities are implemented through Java interfaces, and provide a limited view on the full interface of an associated object. This makes their system dynamic (in the sense that capabilities can be added and removed from the system independent of the actual implementation of the object, and that capabilities can be delegated between objects. On the other hand, they do not consider the general case of caller and callee residing on different systems separated by a network (as well as the terminal/card line interface). Moreover, the very important matter of protecting the data transfered with an actual method call is not considered in their work.
The latest JavaCard specification (2.2) includes a lightweight version of Sun's Remote Method Invocation (RMI) [Sun99]. It provides a mechanism for a client application running on the terminal to invoke a method on a remote object stored on the card just like an invocation within the same virtual machine. The parameters of a remote method should be primitive (byte, boolean, short, int) or a single-dimension array of a primitive type (byte, boolean, short, int). Unlike standard Java RMI, object parameters (whether remote or not) are not allowed. The method result is of primitive type, a single-dimension array of primitive type, a remote interface object or void. All parameters and return values are transmitted by value, except for the remote object. The remote object is transmitted by reference. We have investigated several approaches to implementing our JASON Secure Method Invocation (SMI) system using RMI, but none are quite satisfactory. We discuss this in Sect. 4.4.
Keht [KRV00] describe the JiniCard architecture, which allows seamless integration of smart card services in a spontaneous network environment. The approach taken is to keep all functionality required to interact with a certain smart card remotely on the network, and to download this functionality into the card reader based on the ATR (Answer To Reset) of the particular card inserted into it. They also discuss the service-as-object metaphor, but as far as security is concerned, they consider SSL sessions between card and terminal objects over which RMI calls are being sent. We, on the other hand, introduce a much finer security granularity at the method level.
There are also a number of related industry initiatives that deserve to be mentioned here.
The Global Platform Specification2(formerly VISA's Open Platform specification) is concerned with the secure and platform independent installing and deletion of applications on multi-application smart cards.
The Open Card Framework3 (and the similarly motivated PC/SC Workgroup4) aims to allow software developers to build smart card-aware products without having to worry about platform, card terminal, or smart card-specific interfaces. It supplies an API for handling the communication between a PC application and a smart card reader. Since OCF is developed by the major smart card companies, it supports all kinds of smart cards and card readers. The application does not even have to know which smart card reader is being used during a communication session with a card. OCF does not specify the card side. The choice of a particular type of smart card is free and may change without changing the PC application.
With the JASON SMI system we want to achieve:
The JASON platform implements the secure object store paradigm using the following layers.

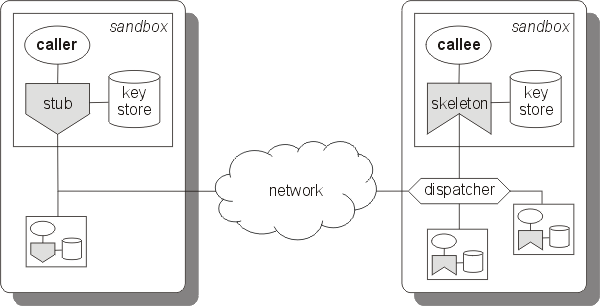

The Secure Method Invocation (SMI) layer allows a caller object to securely call a method implemented by a callee object. Both caller and callee are assumed to be stored and run in a protected environment (a sandbox) that disables access to all objects and data within the sandbox except through published interfaces.
The JASON SMI layer provides the following services:
To establish a connection, the caller needs a stub corresponding to the object to connect to. Similarly, the callee needs a skeleton that receives incoming connections, performs access control decisions and protects the method parameters and results. The role keys used to authenticate the caller to the callee are stored in a separate keystore object belonging to the same sandbox. This design is sketched in Fig. 1.
The stub and skeleton necessary to securely call the methods of an object are generated automatically from a so called JASON definition file. This file specifies the security requirements for the callee object. The contents and structure of this file are described next. Note that the issue of key management falls beyond the scope of this paper. We are currently investigating the proper tools to support key management within the JASON framework. As far as the JASON SMI platform is concerned, the keystore contains valid and proper keys.
The JASON SMI system has a strict separation between the card application and its security. An application developer has two tasks.
A sample JASON definition file appears in Fig. 2 (describing the interface of a simple electronic purse application, that will be studied further in Sect. 5). The JASON pre-compiler will process the definition file and generates three files.
In JAVA the keywords private, protected and public are used to limit access to methods and fields to certain classes. An object can only access it's own private members, protected members of it's superclasses or classes in the same package and all public members. These keywords work fine if used inside a single virtual machine. However, when using a distributed system a more fine grained solution is necessary.
In the JASON SMI system, access control is role based. Moreover, the communication between caller and callee has to be protected as well. To specify these requirements, the JAVA interface description is extended with the following keywords.
Access to a method can be limited by using the accessible keyword. Access is only to be granted if the caller can be identified (using the corresponding keys in the keystore) as a role in role-list. The predefined role ALL indicates that access is allowed for all roles defined for this object (through the roles keyword). The predefined role ANYBODY specifies a role that can be assumed by anybody (a role whose identity is not verified). For security reasons only methods are accessible from off-the-card applications. Variables should be accessed through corresponding set and get methods.
Parameters and return values can be specified as confidential, meaning that the data involved should be sent encrypted between caller and callee. This guarantees that nobody else can eavesdrop the value. In the negotiation phase (see below) a (symmetric) session key is exchanged and an encryption algorithm chosen.
To call a method using the SMI framework, the caller has to perform the following two steps (see also Fig. 3 for an example connecting to the purse object whose interface was given previously).
Note that even for a single call to a method, a connection has to be set up. This may be wasteful for certain applications where transaction speed is very important (public transport). We are investigating the possibility of calling a single method without connecting to the object first (in fact merging the connection and the calling into one step).
In this section we describe how the JASON SMI platform is actually implemented, and how the security requirements are actually met using several cryptographic protocols. In particular we show how a secure connection is setup, how the ownership of roles is verified, and how the security context is established. Secondly, we show how a method is called securely using the information and session keys in the current security context. But first we will discuss the keys stored in the keystore in a little more detail.
The keys in the keystore correspond one-to-one to the roles declared in the JASON definition file. The keystore also contains keys for key-management. This is discussed in a forthcoming paper.
JASON supports the use of different types of keys in the keystore, depending on the security requirements of the application (or indeed individual objects on particular smart cards). Currently, the following types of keys are supported.
ki=encrypt(kM,i)Note that in this case ki performs the role of a public key (from which the corresponding private key cannot be derived), but with additional property that it proves to the caller the identity of the callee.
Depending on the type of key stored in the keystore, the appropriate authentication protocol is run. Note that the caller keystore contains the keys necessary to prove its role (private keys), while the callee keystore contains the keys necessary to verify a role (public keys). If an entry in the caller keystore is null or invalid, the caller cannot assume the corresponding role. If an entry in the callee keystore is null or invalid, the role cannot be verified and all connections for that role will be refused.
Finally, the keystore contains, for each role key, information about the type of cipher that should be used to protect the session once the caller has been authenticated and accepted.
Connecting to an object exchanges and verifies the identity and role of the caller and the callee. Furthermore, a security context is established (containing a shared secret key) that is used to protect all calls to methods of the object. To connect to an object and establish a session the following steps are taken (assuming RSA style authentication).
The session context also contains two counters, one to count the number of messages sent in this session, and one to count the number of messages received. Both are reset to 0 at the start of a session, and incremented for each message sent or received. These numbers are used to protect against replay, as explained below.
Informally speaking, after session setup the stub and the skeleton are connected by a (secure) byte stream. The byte stream is routed by the communications layer to the correct skeleton. In fact, when a stub's method is invoked, it does the following:
In the remote JVM, each remote object has a corresponding skeleton. The skeleton is responsible for dispatching the call to the actual remote object implementation. When a skeleton receives an incoming method invocation it does the following:
The byte stream sent from stub to skeleton contains the following elements.
The return stream from skeleton to stub to communicate results has the following structure.
Because the caller and callee are physically separated by a network, the call to a remote method must be transferred to the remote object over the network before it can be executed there. The most natural approach would be to use Java's Remote Method Invocation mechanism to achieve this. At the caller side, the SMI stub first converts the parameters to a protected bytestream, as explained in Sect. 4.3. The RMI layer than transmits this bytestream to the callee, and invokes the corresponding method of the callee SMI skeleton. There, the access permissions are checked and the bytestream is unpacked before the original callee method is invoked.
However, this scenario is complicated by the fact that JavaCard (as of version 2.2) uses a different RMI system, if only because a JavaCard is not connected to a network directly, but instead communicates with the outside world through a terminal using an APDU stream. This would imply that the terminal has to convert an incoming RMI request to a JavaCard specific JC-RMI request (and similarly for the responses). This does not appear to be straightforward, because the RMI wire protocols are different. The only option is to create - for each skeleton on the callee smart card - a separate skeleton (and stub) for the terminal, that receives the incoming RMI request and simply calls the remote method on the smart card using JC-RMI. This means the terminal potentially needs access to a huge number of skeletons and stubs, simply to pass bytestreams verbatim!
Moreover, we note that RMI's support for marshalling and unmarshalling of method parameters and results becomes totally superfluous in this approach, because the SMI layer already converts the parameters to a bytestream in the first place.
To solve the first problem RMI and JC-RMI need to be brought more in line, such that their wire protocols become sufficiently compatible to allow translations between them using a generic translation mechanism running in the terminal. To solve the second problem, the RMI system should provide versatile hooks to allow the outgoing bytestream to be protected in the fine grained manner required by JASON. Or, SMI should be incorporated into the RMI layer.
Fig. 2 in section 3.2 shows the security requirements of a simple purse application. It corresponds to the actual implementation given in Fig 5. Clearly the implementation is quite straightforward. Also, the strictness of the separation between implementation and its security is apparent. The implementation does not contain a single line of code concerning security. All the security is contained in the generated stub and skeleton. The skeleton calls the implementation and adds security to it. Note that each method is defined with the default JAVA visibility, to allow the skeleton to access them, but not giving access to subclasses outside the package.
We are currently implementing the JASON SMI framework on a JavaCard 2.2 platform. The final implementation will be available under the GNU General Public License (GPL) through https://www.cs.kun.nl/~jhh/jason.html within a few months.
We intend to extend JASON's SMI functionality with logging and auditing functions, as well as transaction (and rollback) support. Related to the logging and auditing issue, is the fact that the current implementation does not provide non-repudiation. The ramifications for implementing non-repudiation are the subject of further investigations. Also, one could argue that the authentic keyword is overloaded (in the sense that it gives too many guarantees, especially freshness, at the cost of a more complex and resource consuming protection mechanism). Using JASON to develop several real-world smart card applications will tell whether a more fine grained set of security specification keywords is required.
Finally, to make the JASON vision of a smart card application consisting of millions of distributed objects a reality, object broker functionality has to be added that is consistent with the high security requirements of typical smart card applications, and the highly dynamical nature of the smart card network.
We thank the anonymous referees for the valuable comments and suggestions, and especially for bringing to our attention that the JavaCard 2.2 standard contains support for RMI.
