The most obvious source for indeterministic execution is the use of garbage collection in Java.  Realtime embedded systems such as in industrial automation, avionics or automotive applications often require short response times. Blocking garbage collectors cause long pauses that are hard to predict and unacceptable for these applications.

Although incremental garbage collection techniques can help to reduce the likelihood for a blocking garbage collection pause, they can not guarantee it. It can still occur that the collector does not make sufficient progress and does not catch up with the application. Consequently, the system can fail or require long blocking pauses to recycle memory or defragment the heap.

A deterministic implementation of Java must provide means to determine worst-case execution times for Java’s primitive operations. The dynamic structure of Java, with inheritance, virtual method calls and multiple-inheritance for interfaces, poses several difficulties for the implementation. The time required for calls or type checks must be limited and statically determinable.

Further difficulties are caused by the dynamic nature of Java’s class loading and initialization mechanism. Finally, Java’s synchronization primitives that permit to have a monitor associated with any Java object and Java’s exception mechanism pose further difficulties for a deterministic implementation.

2. RELATED WORK

For the use of Java in realtime applications, Nilsen identifies the analysis of conservative worst-case execution times for code sequences that exclude recursion and unbounded loops as a key enabling technology [Nilsen96, NR95]. This analysis is not straightforward for all of Java’s primitive operations; this paper will describe how a Java implementation can permit this analysis. The other enabling technologies listed by Nilsen are execution time measurement, rate-monotonic analysis [LL73], static cyclic schedules and realtime garbage collection.

A number of publications describe technologies to efficiently implement object-oriented languages or Java specific features like monitors, improving the average-case runtime and memory costs.

Different approaches for the implementation of dynamic dispatching in the context of single- and multiple-inheritance have been proposed. Zendra et. al. suggest using specific dispatch functions instead of virtual function tables to make better use of modern processor architectures [ZCC97]. Typical implementations of C++ [Strou87] use several virtual function tables per object and direct references to sub-objects to implement multiple inheritance. To improve the average performance of virtual calls, inline caching has been suggested [DS84].
Yang et. al. [Yang99] and Bacon et. al. [BKMS98] presented techniques to inline monitors in objects and reduce the average runtime cost for monitor operations to a minimum. However, their approaches cannot avoid high worst-case overhead in the case of contention.

3. THE JAMAICA VIRTUAL MACHINE IMPLEMENTATION

Jamaica uses a builder utility to create stand-alone applications out of a set of Java class files and the Jamaica virtual machine. The builder can perform smart linking and compilation of the Java application into optimized C code using a static Java bytecode compiler. The compiler implements several optimizations similar to those described by Weiss et. al. [Weiss98]. The generated C code is then translated into machine code by a C-compiler such as gcc.

To reduce the footprint of Java applications, interpreted compact byte code and compiled machine code can be mixed. Profiling data can be used to guide the compiler to compile only the hot spots of the applications and achieve the best speedup with a small increase in code size.

3.1 Executing Bytecodes

The bytecode instructions for which a deterministic implementation is not straightforward will be described in detail in this section.

3.1.1 Loading String Constants

3.1.2 Class Initialization

This problem is not easy to solve without changing Java’s semantics. The Java virtual machine specification [LY99] explicitly allows early loading and resolution of classes, as long as the semantics of Java are respected. However, this does not allow early execution of static initializers, since this would change the control flow and hence the semantics of the implementation.

To avoid the overhead of loading and linking a class during class resolution, the Jamaica virtual machine recursively loads and links all classes that are referenced by the root class at system initialization. If later during execution of the system additional classes are loaded using methods like java.lang.Class.forName() or the reflection API, this process is repeated and all referenced classes are loaded as well.

What is left at the first reference to a class is the execution of its static initializer. The user is free to perform arbitrarily complex calculations within the static initializer, so a worst-case execution time for this operation can not be guaranteed by the Java implementation unless the static initializer is relatively simple, e.g., code that contains no method calls or loops.
Even for simple static initializers, the call overhead causes fairly bad worst-case execution times for simple operations like an access to a static field. The user can avoid this overhead by explicitly causing early initialization of the referred class during system startup.

The resulting overhead for operations that cause class resolution is then reduced to the overhead of checking the initialization state of the class. This can be done by reading a single field in the class’ descriptor and a conditional branch.

We plan to improve the Jamaica compiler such that explicit early initialization can be detected statically such that the test can be avoided in most cases.

3.1.3 Method Invocation

Static Calls

Virtual Calls

The standard method of implementation provides deterministic execution time. A virtual call is implemented with a method table that is part of the type descriptor of each object (Figure 1). Each method is assigned a unique index in the method table. Inherited methods keep their unique indices in the new class. Methods defined within a class are assigned the next available index, while methods that redefine inherited methods inherit the index of the original method. Every method is recorded in the method table at its index, while inherited methods that were redefined are replaced by their redefined versions.

This technique permits one to find the target method of a virtual call very efficiently. All that is required is a lookup in the method table at the method’s index. If the method has been redefined, the redefined method’s entry will use the same index as the original method and the redefined method will be found. Using this technique, a virtual call can be performed in constant time.

Interface Calls

The representation of classes and interfaces that was chosen for the Jamaica implementation permits constant-time calls to interface methods. Every interface is assigned a unique identifier interface_id, starting at 0 for the first interface loaded. Each method within an interface is assigned an interface_method_index similar to the methods of normal classes. The class descriptor of every class that implements one or several interfaces contains a reference to an array of references. This array is referred to as implements array. For each interface that is implemented, the implements array contains a valid reference at the interface’ interface_id. This reference points to an array of the methods defined in the interface and implemented in the class, with each method at its interface_method_index (Figure 2). All entries in the implements array that correspond to interfaces that are not implemented by the class are set to null. For the call of an interface method, all that is needed is to read the implements array from the target object’s type descriptor, index this array at the interface’ interface_id and finally read the method at the interface_method_index. Compared to virtual methods, there is only one additional indirection needed, calls to interface methods are performed in constant time.

Nevertheless, there is an important disadvantage of this approach: the size of the implements array is linear in the number i of interfaces, and the total memory required for a system with c classes is therefore in O(c·i). The memory usage is quadratic in the size of the code. With the applications executed using Jamaica, this has not caused any difficulties, but it might be a problem for very large applications.

The memory overhead can be reduced using some simple optimizations. It is sufficient if the size of the implements array is reduced to interface_id+1 for the largest interface_id of all the interfaces implemented. In addition, all classes that do not implement any interfaces can share one single empty implements array. Jamaica makes use of these optimizations.
Dynamic loading of interface classes can also be handled using this mechanism. New interface classes will be assigned new interface_ids and classes implementing this interfaces will get sufficiently large implements arrays. In the context of class garbage collection, care must be taken to ensure that unused interface_ids will be reused, so that the size of the implements arrays does not grow without limit.

One can imagine that the typically high additional overhead for calls due to multiple inheritance might be the only reason for the existence of interfaces. Using the scheme presented here, the overhead is minimal compared to a virtual call using single inheritance. If Java allowed multiple inheritance for normal classes, there would be no need for interfaces at all. A single concept, the class, could be used to model interfaces and classes. This would remove the often difficult decision whether to model a concept using an abstract class or an interface. The former is more powerful by allowing the implementation of some methods, while the latter is more flexible and allows multiple inheritance. Object-oriented programming languages like Eiffel have shown that a single concept using multiple inheritance is sufficient and that efficient implementation of multiple inheritance is possible [Meyer92].

Additional Call and Return Overhead

3.1.4 Type Checking

Type Checking for Classes

if (r instanceof A) {
  System.out.
    print(“r is of class A“);
}

The straightforward implementation of this type check would traverse the inheritance-chain of the object referenced by r until either class A is found or the root object java.lang.Object has been reached. This implementation requires time linear in the depth of the inheritance tree, a worst-case execution time for the type check is difficult to determine.

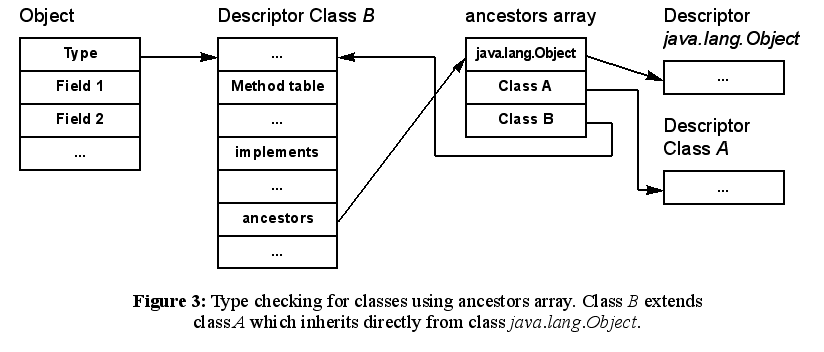

A simple modification of the representation of inherited classes permits constant-time type checking for classes. Every class has a fixed position in the inheritance tree and a fixed distance to class java.lang.Object. All classes in the inheritance tree that are on the path from a class C to java.lang.Object are referred to as C’s ancestors. C’s ancestors include the classes C and java.lang.Object. The number of ancestors of class C is the depth of C in the inheritance tree. Any class descriptor can now be equipped with a reference to an array of all ancestors, as shown in Figure 3.

Each ancestor that resides at position depth in the inheritance tree is stored at position depth-1 in this ancestors array. Now, the type check can be done in constant time. All that is needed is a check of the ancestors array’s entry at the position corresponding to the class’ depth.

C-code that performs the instanceof-check shown above would look like this.

if ((r!=null                      )
 && (r->type->
        ancestors.length>=A->depth)
 && (r->type->
        ancestors[A->depth-1] == A))
{
  System.out.
    print(“r is of class A“);
}

The code requires reading the referenced object’s class descriptor, the ancestors array, the array length and one element in the array. The depth of class A and the class descriptor of class A are also required in this test, but these values are runtime constants and can be inlined by a compiler.

Type Checking for Interfaces

if (r instanceof I) {
  System.out.
    print(“r is of interface I“);
}

all that is needed is to check whether the implements array of r has an entry for interface I. In C-like code, this might look as follows.

if ((r!=null                      )
 && (r->type->
        implements.length >  I->id)
 && (r->type->
        implements[I->id] != null ))
{
  System.out.
    print(“r is of interface I“);
}

The code requires reading the class descriptor reference, the implements array, its length and the entry corresponding to the interface I. The interface_id that is required is a runtime constant.

Type Checking for Arrays

if (r instanceof A[][][]) {
  System.out.
    print(“r is of type A[][][]“);
}

All that is required for this test is to check whether the object referred to by r is an array of dimension three and the base element type A. The C-code might look like this:

if ((r!=null                       )
 && (r->type->dimensions == 3      )
 && (r->type->elemnt->
        ancestors.length >=A->depth)
 && (r->type->elemnt->
        ancestors[A->depth-1] == A))
{
  System.out.
    print(“r is of type A[][][]“);
}

The code checks the correct number of dimensions of the array and then does a type check for the element class as described above.

Care needs to be taken when checking arrays of class java.lang.Object or interfaces java.lang.Cloneable and java.io.Serializable. The class java.lang. Object is an ancestor of all arrays and the two interfaces are implemented by all arrays. To implement the type check for these arrays correctly, the check must additionally succeed whenever the dimension of the examined type is higher than that with which the array type it is compared.

3.1.5 Switch Statement

For case-entries that extend over a large range of values with unused intervals tableswitch would require a large table. In this case, lookupswitch is used in the bytecode. This instruction uses a sorted table of case-value and target address pairs. The lookup requires a binary search of this table, hence the runtime is logarithmic in the number of case-labels in the switch statement.

The Java implementation of the interpreter has little choice here but to implement the binary search, converting a lookupswitch into a constant-time tableswitch might require too much memory for the table. The user of the system must therefore be careful when using switch-statements with case-entries that stretch over a large range of values.

A Java compiler that generates native code can use perfect hashing here. During compilation time, a conflict-free hash function is computed which maps the case-values to target addresses. The jump is then executed in O(1). As shown by Mehlhorn, such a hash table of size 3n, where n is the number of case-labels, can be computed in cubic time [Mehlh84]. Future versions of Jamaica that generate native code will use perfect hashing here. The currently generated C code uses C’s switch statement and relies on the C compiler’s implementation.

3.1.6 Memory Allocation

To avoid fragmentation, compacting or moving garbage collection techniques are typically employed. These techniques nevertheless cause several difficulties for an efficient implementation. For example, references to moved objects must be updated to the new location of a moved object. This updating must include references in local variables or processor registers.

The Jamaica implementation uses a new approach to avoid fragmentation altogether. The heap is regarded as an array of blocks of a fixed size (typically 32 bytes per block). On allocation of an object, at least one such block is used. If this is not sufficient, a linear list of possibly non-contiguous blocks is used to represent the object. Arrays are represented as a tree of blocks with the array elements just in the leaf nodes. The use of this object and array model allows the use of non-contiguous regions of memory for allocation. There is no need to defragment memory and move objects. This technique to avoid fragmentation has been described in detail in an earlier publication [Siebert00].

In classic Java implementations, the garbage collection activities occur unpredictably whenever the system memory runs low or certain thresholds are reached. Additionally, these implementations typically cannot guarantee that the garbage collector performs sufficient recycling work to catch up with the allocation of the application. This approach is not applicable for a deterministic implementation.

Jamaica couples garbage collection activity with allocation. Whenever a block of memory is allocated, a certain number of blocks are scanned by the garbage collector. As has been shown earlier [Siebert98], this approach can guarantee sufficient garbage collection progress for the system not to run out of memory and it can guarantee upper bounds for the amount of garbage collection work that is required for the allocation of one block of memory as long as the amount of reachable memory used by the application is limited.

For an application that uses not more than a fraction k of the total heap size as reachable memory, the upper bound Pmax of the number of units of garbage collection work that need to be performed for the allocation of one block of memory can be determined statically. Several values for k and the corresponding values of Pmax are presented in Table 1. On the PowerPC architecture, one unit of garbage collection work for a block size of 32 bytes corresponds to 266 machine instructions in the worst case. This permits the determination of a worst-case execution time for the allocation time of Java objects and arrays.

k:	0.0	0.3	0.4	0.5	0.6	0.7	0.75	0.8	0.85	0.9	0.95	0.975	1.0
Pmax:	1.0	6.173	8.085	10.67	14.47	20.71	25.67	33.10	45.45	70.11	144.0	291.8	oo

3.1.7 Memory Accesses

Field Accesses

Fortunately, most Java objects are very small and even for larger objects the fields that are accessed most frequently are typically the first fields with the lowest offsets [Siebert00]. For any field, the position is known statically and hence the number of memory accesses required can be determined statically.

Array Accesses

dmax = ceil(ln8( h / 32 ))

This enables the determination of a worst-case execution time for array accesses. Even though this time is much higher than that of a classical linear array representation, it will be shown below that the overall performance of the system is comparable to that of traditional Java implementations.

3.2 Monitors

Bacon et. al. [BKMS98] reserve 24 bits per object for the monitor. They distinguish two different representations for monitors: inlined and inflated. Inlined monitors use the monitor value to store an identifier for the owner thread and a nest count. Inflated monitors use the 24 bits as a monitor id that functions as a reference to a monitor object on the heap. Monitors that are never subject to contention remain in inlined representation, while monitors that are subject to contention will be converted to their inflated representation and will remain in this representation until the object dies.

The disadvantage of these monitor representations is their unpredictable runtime behaviour due to the use of heap allocation or a hashtable for monitors that are subject to contention.

The Jamaica monitor implementation avoids the need to dynamically allocate monitor storage on the heap or stack altogether. Monitors are always inlined, using 16 or 32 bits per object (16 bits are sufficient in systems with few threads and a limited nest count). As long as no threads are waiting for a monitor, it is sufficient to record the owning thread’s identifier and the nest count in the inlined monitor (Figure 4). As soon as a thread tries to acquire a monitor that is owned by a different thread, a queue of waiting threads needs to be created.

An important observation one can make is that no thread can ever be waiting for more than a single monitor. Hence, instead of creating independent node objects for the waiting queue, one might as well reserve some additional fields in the thread object itself and create a queue of thread objects for all waiting threads. Since a thread might own several monitors simultaneously, the owning thread itself must not be part of this queue, only the waiting threads can be linked to the monitor. One bit in the inlined monitor indicates that a waiting queue exists. In this case, the nest count and owning thread’s identifier are copied into reserved fields of the threads in the waiting queue. The identifier of the first thread in the queue is stored in the inlined monitor (Figure 5).

The result is a monitor implementation that is very efficient for the most frequent cases of monitor operations. Entering a monitor that is not owned by any thread or that has already been acquired by the current thread and exiting a monitor that has no other threads waiting. The operations that involve waiting threads do not require dynamic creation of a monitor object, all that needs to be done is queuing and unqueuing the waiting threads and performing the actual wait or resume.

3.3 Exceptions

The execution time for an exception is therefore not constant and it is at least difficult to find a constant-time implementation for exception handling. Using a mechanism like C’s setjmp and longjmp enables constant-time change of the control flow that is required for exceptions, but it does not provide means to remove the information required for accurate garbage collection.

In the Jamaica implementation, the execution time of throwing an exception is therefore linear in the size of the stack frames between the exception throwing point and the corresponding exception handler. Since exceptions are not supposed to be used for normal control flow, but for exceptional control flow only, this behaviour should be acceptable even when deterministic execution in the non-exceptional case is required.

4. PERFORMANCE COMPARISON

For execution, the test programs were compiled and smart linked using the Jamaica builder. The programs were then executed on a single processor (333 MHz UltraSPARC-IIi) SUN Ultra 5/10 machine equipped with 256MB of RAM running SunOS 5.7.

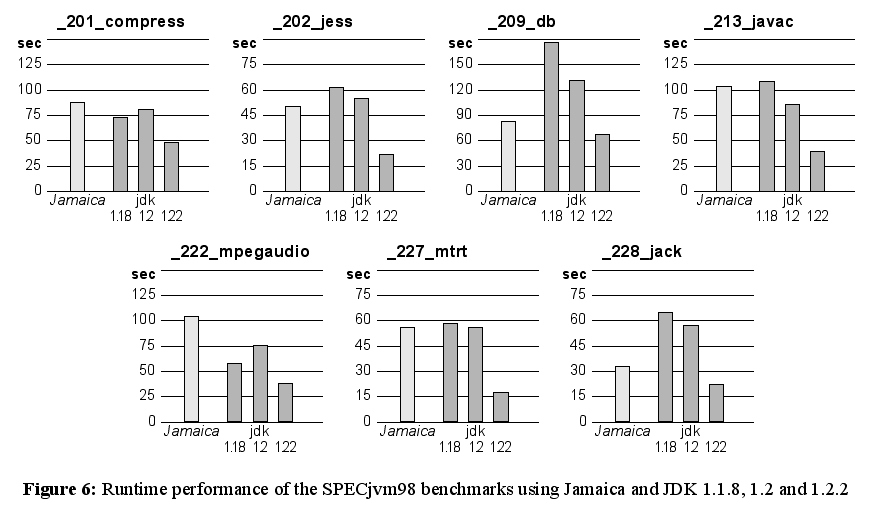

The results of the performance measurements are shown in Figure 6. For the measurements, the heap size was set to 32MB for all tests but _201_compress. This test required more memory to execute and was run with a heap size of 64MB.

Compared to Sun’s implementation, the performance of the deterministic implementation is similar to that of JDK 1.1.8 or 1.2, while the performance of JDK 1.2.2 was improved significantly. Since Jamaica is still a very young implementation and not much effort has been spent on improving and tuning the compiler’s optimization techniques, one can expect that better optimization in the compiler will permit to improve the performance of Jamaica further. Another source for future performance enhancements will be direct generation of machine code instead of using C as an intermediate language as is done currently. Using C does not permit optimal code selection for primitives like write-barrier code or garbage collector root reference information. Direct generation of machine code permits selection of better code for these primitives, e.g., by assigning certain registers for specific purposes.

5. CONCLUSIONS

The performance of the implementation has then been measured and compared to different versions of Sun’s JDK implementation using the SPECjvm98 benchmark suite. The results show that performance that is comparable to Sun’s implementations can be reached. These results encourage us to further improve our implementation and to further reduce the performance gap compared to non-deterministic Java implementations.

6. FUTURE WORK

7. AVAILABILITY
