Group Ratio Round-Robin: O(1) Proportional Share
also maintains the following scheduler state: time quantum, group list, total weight, and current group. The group list is a sorted list of all groups containing runnable clients ordered from largest to smallest group weight, with ties broken by group order. The total weight is the sum of the weights of all runnable clients. The current group is the most recently selected group in the group list.
2.3. We first focus on the intergroup scheduling algorithm, then discuss the intragroup scheduling algorithm.
The intergroup scheduling algorithm uses the ratio of the group weights of successive groups to determine which group to select. The next group to schedule is selected using only the state of successive groups in the group list. Given a group whose weight is times larger than the group weight of the next group in the group list, will select group times for every time that it selects in the group list to provide proportional share allocation among groups.
To implement the algorithm, maintains the total work done by group in a variable . An index to tracks the current group and is initialized to . The scheduling algorithm then executes the following simple routine:
Let us negate (1) under the form:
To illustrate how intergroup scheduling works, Figure 1 shows an example with three clients , , and , which have weights of 5, 2, and 1, respectively. The grouping strategy would place each in group , ordering the groups by weight: , , and have orders 2, 1 and 0 and weights of 5, 2, and 1 respectively. In this example, each group has only one client so there is no intragroup scheduling. would start by selecting group , running client , and incrementing . Based on (1), , so would select again and run client . After running , 's work would be 2 so that the inequality in (1) would hold and would then move on to the next group and run client . Based on (1), , so would reset the current group to the largest weight group and run client . Based on (1), would be run for three time quanta before selecting again to run client . After running the second time, would increase such that , so would then move on to the last group and run client . The resulting schedule would then be: , , , , , , , . Each group therefore receives its proportional allocation in accordance with its respective group weight.
The intragroup scheduling algorithm selects a client from the selected group. All clients within a group have weights within a factor of two, and all client weights in a group are normalized with respect to the minimum possible weight, , for any client in the group. then effectively traverses through a group's queue in round-robin order, allocating each client its normalized weight worth of time quanta. keeps track of subunitary fractional time quanta that cannot be used and accumulates them in a deficit value for each client. Hence, each client is assigned either one or two time quanta, based on the client's normalized weight and its previous allocation.
More specifically, the intragroup scheduler considers the scheduling of clients in rounds. A round is one pass through a group 's run queue of clients from beginning to end. The group run queue does not need to be sorted in any manner. During each round, the intragroup algorithm considers the clients in round-robin order and executes the following simple routine:
For each runnable client , the scheduler determines the maximum number of time quanta that the client can be selected to run in this round as . , the deficit of client after round , is the time quantum fraction left over after round : , with . Thus, in each round, is allotted one time quantum plus any additional leftover from the previous round, and keeps track of the amount of service that missed because of rounding down its allocation to whole time quanta. We observe that after any round so that any client will be allotted one or two time quanta. Note that if a client is allotted two time quanta, it first executes for one time quantum and then executes for the second time quantum the next time the intergroup scheduler selects its respective group again (in general, following a timespan when clients belonging to other groups get to run).
To illustrate how works with intragroup scheduling, Figure 2 shows an example with six clients through with weights 12, 3, 3, 2, 2, and 2, respectively. The six clients will be put in two groups and with respective group order 1 and 3 as follows: and . The weight of the groups are . intergroup scheduling will consider the groups in this order: , , , , , , , , , , , . will schedule client every time is considered for service since it has only one client. Since , the normalized weights of clients , , , , and are 1.5, 1.5, 1, 1, and 1, respectively. In the beginning of round 1 in , each client starts with 0 deficit. As a result, the intragroup scheduler will run each client in for one time quantum during round 1. After the first round, the deficit for , , , , and are 0.5, 0.5, 0, 0, and 0. In the beginning of round 2, each client gets another allocation, plus any deficit from the first round. As a result, the intragroup scheduler will select clients , , , , and to run in order for 2, 2, 1, 1, and 1 time quanta, respectively, during round 2. The resulting schedule would then be: , , , , , , , , , , , , , , , , , , , , , , , .
Runnable clients can be selected for execution by the scheduler, while clients that are not runnable cannot. With no loss of generality, we assume that a client is created before it can become runnable, and a client becomes not runnable before it is terminated. As a result, client creation and termination have no effect on the run queues.
When a client with weight becomes runnable, it is inserted into group such that is between and . If the group was previously empty, a new group is created, the client becomes the current client of the group, and , the number of groups, is incremented. If the group was not previously empty, inserts the client into the respective group's run queue right before the current client; it will be serviced after all of the other clients in the group have first been considered for scheduling. The initial deficit will be initialized to 0.
When a newly runnable client is inserted into its respective group , the group needs to be moved to its new position on the ordered group list based on its new group weight. Let this new position be . The corresponding group work and group weight of need to be updated and the client's deficit needs to be initialized. The group weight is simply incremented by the client's weight. We also want to scale the group work of such that the work ratio of consecutive groups will continue to be proportional to their weight ratio:
When a client with weight becomes not runnable, we need to remove it from the group's run queue. This requires updating the group's weight, which potentially includes moving the group in the ordered group list, as well as adjusting the measure of work received according to the new processor share of the group. This can be achieved in several ways. is optimized to efficiently deal with the common situation when a blocked client may rapidly switch back to the runnable state again. This approach is based on ``lazy'' removal, which minimizes overhead associated with adding and removing a client, while at the same time preserving the service rights and service order of the runnable clients. Since a client blocks when it is running, we know that it will take another full intragroup round before the client will be considered again. The only action when a client blocks is to set a flag on the client, marking it for removal. If the client becomes runnable by the next time it is selected, we reset the flag and run the client as usual. Otherwise, we remove the client from . In the latter situation, as in the case of client arrivals, the group may need to be moved to a new position on the ordered group list based on its new group weight. The corresponding group weight is updated by subtracting the client's weight from the group weight. The corresponding group work is scaled by the same rules as for client insertion, depending on the new position of the group and its next neighbor. After performing these removal operations, resumes scheduling from the largest weight group in the system.
Whenever a client blocks during round , we set , where is the service that the client received during round until it blocked. This preserves the client's credit in case it returns by the next round, while also limiting the deficit to so that a client cannot gain credit by blocking. However, the group consumes tu (its work is incremented) no matter how long the client runs. Therefore, the client forfeits its extra credit whenever it is unable to consume its allocation.
If the client fails to return by the next round, we may remove it. Having kept the weight of the group to the old value for an extra round has no adverse effects on fairness, despite the slight increase in service seen by the group during the last round. By scaling the work of the group and rounding up, we determine its future allocation and thus make sure the group will not have received undue service. We also immediately resume the scheduler from the first (largest) group in the readjusted group list, so that any minor discrepancies caused by rounding may be smoothed out by a first pass through the group list.
We now present extensions to for scheduling a -way multiprocessor system from a single, centralized queue. This simple scheme, which we refer to as , preserves the good fairness and time complexity properties of in small-scale multiprocessor systems, which are increasingly common today, even in the form of multi-core processors. We first describe the basic scheduling algorithm, then discuss dynamic considerations. Table 2 lists terminology we use. To deal with the problem of infeasible client weights, we then show how uses its grouping strategy in a novel weight readjustment algorithm.
To handle this situation while maintaining fairness, introduces the notion of a frontlog. The frontlog for some client running on a processor () is defined as the number of time quanta for accumulated as gets selected by and cannot run because it is already running on . The frontlog is then queued up on .
Given a client that would be scheduled by but is already running on another processor, uses the frontlog to assign the client a time quantum now but defer the client's use of it until later. Whenever a processor finishes running a client for a time quantum, checks whether the client has a non-zero frontlog, and, if so, continues running the client for another time quantum and decrements its frontlog by one, without consulting the central queue. The frontlog mechanism not only ensures that a client receives its proportional share allocation, it also takes advantage of any cache affinity by continuing to run the client on the same processor.
When a processor finishes running a client for a time quantum and its frontlog is zero, we call the processor idle. schedules a client to run on the idle processor by performing a scheduling decision on the central queue. If the selected client is already running on some other processor, we increase its frontlog and repeat the scheduling, each time incrementing the frontlog of the selected client, until we find a client that is not currently running. We assign this client to the idle processor for one time quantum. This description assumes that there are least clients in the system. Otherwise, scheduling is easy: an idle processor will either run the client it just ran, or idles until more clients arrive. In effect, each client will simply be assigned its own processor. Whenever a processor needs to perform a scheduling decision, it thus executes the following routine:
To illustrate scheduling, Figure 3 shows an example on a dual-processor system with three clients , , and of weights 3, 2, and 1, respectively. and will then be part of the order 1 group (assume is before in the round-robin queue of this group), whereas is part of the order 0 group. The schedule is , , , , , . will then select to run, and selects . When finishes, according to , it will select once more, whereas selects again. When again selects the next client, which is , it finds that it is already running on and thus we set and select the next client, which is , to run on . When finishes running for its second time quantum, it finds , sets and continues running without any scheduling decision on the queue.
provides fair and responsive allocations by creating frontlogs for newly arriving clients. Each new client is assigned a frontlog equal to a fraction of the total current frontlog in the system based on its proportional share. Each processor now maintains a queue of frontlog clients and a new client with a frontlog is immediately assigned to one of the processor frontlog queues. Rather than running its currently running client until it completes its frontlog, each processor now round robins among clients in its frontlog queue. Given that frontlogs are small in practice, round-robin scheduling is used for frontlog clients for its simplicity and fairness. balances the frontlog load on the processors by placing new frontlog clients on the processor with the smallest frontlog summed across all its frontlog clients.
More precisely, whenever a client arrives, and it belongs in group , performs the same group operations as in the single processor algorithm. finds the processor with the smallest frontlog, then creates a frontlog for client on of length , where is the total frontlog on all the processors. Let . Then, assuming no further clients arrive, will round-robin between and and run for and for time quanta.
When a client becomes not runnable, uses the same lazy removal mechanism used in . If it is removed from the run queue and has a frontlog, simply discards it since each client is assigned a frontlog based on the current state of the system when it becomes runnable again.
To understand the problem of weight readjustment, consider the sequence of all clients, ordered by weight: with . We call the subsequence -feasible, if .
The feasibility problem is then to identify the least (denoted the feasibility threshold, ) such that is -feasible. If , then the client mix is feasible. Otherwise, the infeasible set contains the infeasible clients, whose weight needs to be scaled down to of the resulting total weight. The cardinality of the infeasible set is less than . However, the sorted sequence is expensive to maintain, such that traversing it and identifying the feasibility threshold is not an efficient solution.
leverages its grouping strategy to perform fast weight
readjustment. starts with the unmodified client
weights, finds the set of infeasible clients, and adjust their weights to be feasible. To construct , the algorithm traverses the list of groups in decreasing order of their group order , until it finds a group not all of whose clients are infeasible.
We denote by the cardinality of and by the sum of
weights of the clients in ,
The weight readjustment algorithm is as follows:
The correctness of the algorithm is based on Lemma 2. Let some group span the subsequence of the sequence of ordered clients . Then and it is easy to show:
can alternatively use a more complicated but lower time complexity divide-and-conquer algorithm to find the infeasible clients in . In this case, partitions around its median into , the set of clients that have weight less than and , the set of clients that have weight larger than . By Lemma 2, if is feasible, is feasible, and we recurse on . Otherwise, all clients in are infeasible, and we recurse on to find all infeasible clients. The algorithm finishes when the set we need to recurse on is empty:
Once all infeasible clients have been identified, determines the sum of the weights of all feasible clients, . We can now compute the new total weight in the system as , namely the solution to the equation . Once we have the adjusted , we change all the weights for the infeasible clients in to . Lemma 6 in Section 4.2 shows the readjustment algorithm runs in time and is thus asymptotically optimal, since there can be infeasible clients.
We analyze the fairness and complexity of and . To analyze fairness, we use a more formal notion of proportional fairness defined as service error, a measure widely used [1,7,9,17,18,19,25,27] in the analysis of scheduling algorithms. To simplify the analysis, we will assume that clients are always runnable and derive fairness bounds for such a case. Subsequently, we address the impact of arrivals and departures.
We use a strict measure of service error (equivalent in this context to the Normalized Worst-case Fair Index ) relative to Generalized Processor Sharing (GPS) , an idealized model that achieves perfect fairness: , an ideal state in which each client always receives service exactly proportional to its weight. Although all real-world schedulers must time-multiplex resources in time units of finite size and thus cannot maintain perfect fairness, some algorithms stay closer to perfect fairness than others and therefore have less service error. We quantify how close an algorithm gets to perfect fairness using the client service time error, which is the difference between the service received by client and its share of the total work done by the processor: . A positive service time error indicates that a client has received more than its ideal share over a time interval; a negative error indicates that it has received less. To be precise, the error measures how much time a client has received beyond its ideal allocation. A proportional share scheduler should minimize the absolute value of the allocation error of all clients with minimal scheduling overhead.
We provide bounds on the service error of and . To do this, we define two other measures of service error. The group service time error is a similar measure for groups that quantifies the fairness of allocating the processor among groups: . The group-relative service time error represents the service time error of client if there were only a single group in the scheduler and is a measure of the service error of a client with respect to the work done on behalf of its group: . We first show bounds on the group service error of the intergroup scheduling algorithm. We then show bounds on the group-relative service error of the intragroup scheduling algorithm. We combine these results to obtain the overall client service error bounds. We also discuss the scheduling overhead of and in terms of their time complexity. We show that both algorithms can make scheduling decisions in time with service error given a constant number of groups. Due to space constraints, most of the proofs are omitted. Further proof details are available in .
For the case when the weight ratios of consecutive groups in the group list are integers, we get the following:
In the general case, we get similar, but slightly weaker bounds.
It is clear that the lower bound is minimized when setting . Thus, we have
Based on the identity which holds for any group and any client , we can combine the inter- and intragroup analyses to bound the overall fairness of .
The negative error of is thus bounded by and the positive error by . Recall, , the number of groups, does not depend on the number of clients in the system.
2), so after the removal, and , now neighbors, will be well-ordered by transitivity. When a group, call it , is inserted between and , it can be proven that the work readjustment formula in Section 2.3 ensures and are well-ordered. In the case of and , we can show that we can achieve well-ordering by running at most one extra time. Thus, modulo this readjustment, the intragroup algorithm's fairness bounds are preserved. An important property of our algorithm that follows is that the pairwise ratios of work of clients not part of the readjusted group will be unaffected. Since the intragroup algorithm has constant fairness bounds, the disruption for the work received by clients inside the adjusted group is only .
manages to bound its service error by while maintaining a strict scheduling overhead. The intergroup scheduler either selects the next group in the list, or reverts to the first one, which takes constant time. The intragroup scheduler is even simpler, as it just picks the next client to run from the unordered round robin list of the group. Adding and removing a client is worst-case when a group needs to be relocated in the ordered list of groups. This could of course be done in time (using binary search, for example), but the small value of in practice does not justify a more complicated algorithm.
The space complexity of is . The only additional data structure beyond the unordered lists of clients is an ordered list of length to organize the groups.
The frontlogs create an additional complication when analyzing the time complexity of . When an idle processor looks for its next client, it runs the simple algorithm to find a client . If is not running on any other processor, we are done, but otherwise we place it on the frontlog and then we must rerun the algorithm until we find a client that is not running on any other processor. Since for each such client, we increase its allocation on the processor it runs, the amortized time complexity remains . The upper bound on the time that any single scheduling decision takes is given by the maximum length of any scheduling sequence of consisting of only some fixed subset of clients.
Thus, the length of any schedule consisting of at most clients is . Even when a processor has frontlogs for several clients queued up on it, it will schedule in time, since it performs round-robin among the frontlogged clients. Client arrivals and departures take time because of the need to readjust group weights in the saved list of groups. Moreover, if we also need to use the weight readjustment algorithm, we incur an additional overhead on client arrivals and departures.

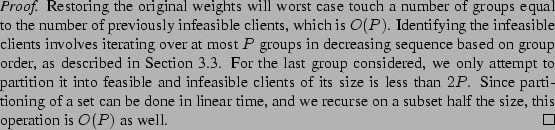

For small , the sorting approach to determine infeasible clients in the last group considered is simpler and in practice performs better than the recursive partitioning. Finally, altering the active group structure to reflect the new weights is a operation, as two groups may need to be re-inserted in the ordered list of groups.
Section 5.1 presents simulation results comparing the proportional sharing accuracy of and against WRR, WFQ , SFQ , VTRR , and SRR . The simulator enabled us to isolate the impact of the scheduling algorithms themselves and examine the scheduling behavior of these different algorithms across hundreds of thousands of different combinations of clients with different weight values.
Section 5.2 presents detailed measurements of real kernel scheduler performance by comparing our prototype Linux implementation against the standard Linux scheduler, a WFQ scheduler, and a VTRR scheduler. The experiments we have done quantify the scheduling overhead and proportional share allocation accuracy of these schedulers in a real operating system environment under a number of different workloads.
All our kernel scheduler measurements were performed on an IBM Netfinity 4500 system with one or two 933 MHz Intel Pentium III CPUs, 512 MB RAM, and 9 GB hard drive. The system was installed with the Debian GNU/Linux distribution version 3.0 and all schedulers were implemented using Linux kernel version 2.4.19. The measurements were done by using a minimally intrusive tracing facility that writes timestamped event identifiers into a memory log and takes advantage of the high-resolution clock cycle counter available with the Intel CPU, providing measurement resolution at the granularity of a few nanoseconds. Getting a timestamp simply involved reading the hardware cycle counter register. We measured the timestamp overhead to be roughly 35 ns per event.
The kernel scheduler measurements were performed on a fully functional system. All experiments were performed with all system functions running and the system connected to the network. At the same time, an effort was made to eliminate variations in the test environment to make the experiments repeatable.
We built a scheduling simulator that measures the service time error, described in Section 4, of a scheduler on a set of clients. The simulator takes four inputs, the scheduling algorithm, the number of clients , the total sum of weights , and the number of client-weight combinations. The simulator randomly assigns weights to clients and scales the weights to ensure that they add up to . It then schedules the clients using the specified algorithm as a real scheduler would, assuming no client blocks, and tracks the resulting service time error. The simulator runs the scheduler until the resulting schedule repeats, then computes the maximum (most positive) and minimum (most negative) service time error across the nonrepeating portion of the schedule for the given set of clients and weight assignments. This process is repeated for the specified number of client-weight combinations. We then compute the maximum service time error and minimum service time error for the specified number of client-weight combinations to obtain a ``worst-case'' error range.
To measure proportional fairness accuracy, we ran simulations for each scheduling algorithm on 45 different combinations of and (32 up to 8192 clients and 16384 up to 262144 total weight, respectively). Since the proportional sharing accuracy of a scheduler is often most clearly illustrated with skewed weight distributions, one of the clients was given a weight equal to 10 percent of . All of the other clients were then randomly assigned weights to sum to the remaining 90 percent of . For each pair , we ran 2500 client-weight combinations and determined the resulting worst-case error range.
The worst-case service time error ranges for WRR, WFQ, SFQ, VTRR, SRR, and with these skewed weight distributions are in Figures 4 to 9. Due to space constraints, WFQ error is not shown since the results simply verify its known mathematical error bounds of and tu. Each figure consists of a graph of the error range for the respective scheduling algorithm. Each graph shows two surfaces representing the maximum and minimum service time error as a function of and for the same range of values of and . Figure 4 shows WRR's service time error is between tu and tu. Figure 5 shows WFQ's service time error is between tu and tu, which is much less than WRR. Figure 6 shows SFQ's service time error is between tu and tu, which is almost a mirror image of WFQ. Figure 7 shows VTRR's service error is between tu and tu. Figure 8 shows SRR's service error is between tu and tu.
In comparison, Figure 9 shows the service time error for only ranges from to tu. has a smaller error range than all of the other schedulers measured except WFQ. has both a smaller negative and smaller positive service time error than WRR, VTRR, and SRR. While has a much smaller positive service error than WFQ, WFQ does have a smaller negative service time error since it is bounded below at . Similarly, has a much smaller negative service error than SFQ, though SFQ's positive error is less since it is bounded above at . Considering the total service error range of each scheduler, provides well over two orders of magnitude better proportional sharing accuracy than WRR, WFQ, SFQ, VTRR, and SRR. Unlike the other schedulers, these results show that combines the benefits of low service time errors with its ability to schedule in time.
Note that as the weight skew becomes more accentuated, the service error can grow dramatically. Thus, increasing the skew from 10 to 50 percent results in more than a fivefold increase in the error magnitude for SRR, WFQ, and SFQ, and also significantly worse errors for WRR and VTRR. In contrast, the error of is still bounded by small constants: and .
We also measured the service error of using this simulator configured for an 8 processor system, where the weight distribution was the same as for the uniprocessor simulations above. Note that the client given 0.1 of the total weight was feasible, since . Figure 10 shows 's service error is between tu and tu, slightly better than for the uniprocessor case, a benefit of being able to run multiple clients in parallel. Figure 11 shows the maximum number of scheduling decisions that an idle processor needs to perform until it finds a client that is not running. This did not exceed seven, indicating that the number of decisions needed in practice is well below the worst-case bounds shown in Theorem 3.
Figure 12 shows the average execution time required by each scheduler to select a client to execute. Results for , VTRR, WFQ, and Linux were obtained on uniprocessor system, and results for and LinuxMP were obtained running on a dual-processor system. Dual-processor results for WFQ and VTRR are not shown since MP-ready implementations of them were not available.
For this experiment, the particular implementation details of the WFQ scheduler affect the overhead, so we include results from two different implementations of WFQ. In the first, labeled ``WFQ '', the run queue is implemented as a simple linked list which must be searched on every scheduling decision. The second, labeled ``WFQ '', uses a heap-based priority queue with insertion time. To maintain the heap-based priority queue, we used a fixed-length array. If the number of clients ever exceeds the length of the array, a costly array reallocation must be performed. Our initial array size was large enough to contain more than 400 clients, so this additional cost is not reflected in our measurements.
As shown in Figure 12, the increase in scheduling overhead as the number of clients increases varies a great deal between different schedulers. has the smallest scheduling overhead. It requires roughly 300 ns to select a client to execute and the scheduling overhead is essentially constant for all numbers of clients. While VTRR scheduling overhead is also constant, has less overhead because its computations are simpler to perform than the virtual time calculations required by VTRR. In contrast, the overhead for Linux and for WFQ scheduling grows linearly with the number of clients. Both of these schedulers impose more than 200 times more overhead than when scheduling a mix of 400 clients. WFQ has much smaller overhead than Linux or WFQ, but it still imposes significantly more overhead than , with 8 times more overhead than when scheduling a mix of 400 clients. Figure 12 also shows that provides the same scheduling overhead on a multiprocessor, although the absolute time to schedule is somewhat higher due to additional costs associated with scheduling in multiprocessor systems. The results show that provides substantially lower overhead than the standard Linux scheduler, which suffers from complexity that grows linearly with the number of clients. Because of the importance of constant scheduling overhead in server systems, Linux has switched to Ingo Molnar's scheduler in the Linux 2.6 kernel. As a comparison, we also repeated this microbenchmark experiment with that scheduler and found that still runs over 30 percent faster.
As another experiment, we measured the scheduling overhead of the various schedulers for , a benchmark used in the Linux community for measuring scheduler performance with large numbers of processes entering and leaving the run queue at all times. It creates groups of readers and writers, each group having 20 reader tasks and 20 writer tasks, and each writer writes 100 small messages to each of the other 20 readers. This is a total of 2000 messages sent per writer, per group, or 40000 messages per group. We ran a modified version of hackbench to give each reader and each writer a random weight between 1 and 40. We performed these tests on the same set of schedulers for 1 group up to 100 groups. Using 100 groups results in up to 8000 processes running. Because hackbench frequently inserts and removes clients from the run queue, the cost of client insertion and removal is a more significant factor for this benchmark. The results show that the simple dynamic group adjustments described in Section 2.3 have low overhead, since can be considered constant in practice.
Figure 13 shows the average scheduling overhead for each scheduler. The average overhead is the sum of the times spent on all scheduling events, selecting clients to run and inserting and removing clients from the run queue, divided by the number of times the scheduler selected a client to run. The overhead in Figure 13 is higher than the average cost per schedule in Figure 12 for all the schedulers measured since Figure 13 includes a significant component of time due to client insertion and removal from the run queue. still has by far the smallest scheduling overhead among all the schedulers measured. The overhead for remains constant while the overhead for WFQ, WFQ, VTRR, and Linux grows with the number of clients. Client insertion, removal, and selection to run in are independent of the number of clients. The cost for is 3 times higher than before, with client selection to run, insertion, and removal each taking approximately 300 to 400 ns. For VTRR, although selecting a client to run is also independent of the number of clients, insertion overhead grows with the number of clients, resulting in much higher VTRR overhead for this benchmark.
To demonstrate 's efficient proportional sharing of resources on real applications, we briefly describe three simple experiments running web server workloads using the same set of schedulers: and , Linux 2.4 uniprocessor and multiprocessor schedulers, WFQ, and VTRR. The web server workload emulates a number of virtual web servers running on a single system. Each virtual server runs the guitar music search engine used at guitarnotes.com, a popular musician resource web site with over 800,000 monthly users. The search engine is a perl script executed from an Apache mod-perl module that searches for guitar music by title or author and returns a list of results. The web server workload configured each server to pre-fork 100 processes, each running consecutive searches simultaneously.
We ran multiple virtual servers with each one having different weights for its processes. In the first experiment, we used six virtual servers, with one server having all its processes assigned weight 10 while all other servers had processes assigned weight 1. In the second experiment, we used five virtual servers and processes assigned to each server had respective weights of 1, 2, 3, 4, and 5. In the third experiment, we ran five virtual servers which assigned a random weight between 1 and 10 to each process. For the Linux scheduler, weights were assigned by selecting nice values appropriately. Figures 14 to 19 present the results from the first experiment with one server with weight 10 processes and all other servers with weight 1 processes. The total load on the system for this experiment consisted of 600 processes running simultaneously. For illustration purposes, only one process from each server is shown in the figures. The conclusions drawn from the other experiments are the same, so other results are not shown due to space constraints.
and provided the best overall proportional fairness for these experiments while Linux provided the worst overall proportional fairness. Figures 14 to 17 show the amount of processor time allocated to each client over time for the Linux scheduler, WFQ, VTRR, and . All of the schedulers except and have a pronounced ``staircase'' effect for the search engine process with weight 10, indicating that CPU resources are provided in irregular bursts over a short time interval. For the applications which need to provide interactive responsiveness to web users, this can result in extra delays in system response time. It can be inferred from the smoother curves of Figure 17 that and provide fair resource allocation at a finer granularity than the other schedulers.
22] was developed to support non-uniform service allocations in packet scheduling. These algorithms have low complexity but poor short-term fairness, with service errors that can be on the order of the largest client weight in the system. uses a novel variant of DRR for intragroup scheduling with complexity, but also provides service error by using its grouping mechanism to limit the effective range of client weights considered by the intragroup scheduler.
Fair-share schedulers [12,14,15] provide proportional sharing among users in a way compatible with a UNIX-style time-sharing framework based on multi-level feedback with a set of priority queues. These schedulers typically had low complexity, but were often ad-hoc and could not provide any proportional fairness guarantees. Empirical measurements show that these approaches only provide reasonable proportional fairness over relatively large time intervals .
Lottery scheduling  gives each client a number of tickets proportional to its weight, then randomly selects a ticket. Lottery scheduling takes time and relies on the law of large numbers for providing proportional fairness. Thus, its allocation errors can be very large, typically much worse than WRR for clients with smaller weights.
Weighted Fair Queueing (WFQ) [11,18], was first developed for network packet scheduling, and later applied to uniprocessor scheduling . It assigns each client a virtual time and schedules the client with the earliest virtual time. Other fair queueing variants such as Virtual-clock , SFQ , SPFQ , and Time-shift FQ  have also been proposed. These approaches all have time complexity, where is the number of clients, because the clients must be ordered by virtual time. It has been shown that WFQ guarantees that the service time error for any client never falls below . However, WFQ can allow a client to get far ahead of its ideal allocation and accumulate a large positive service time error of , especially with skewed weight distributions.
Several fair queueing approaches have been proposed for reducing this service time error. A hierarchical scheduling approach  reduces service time error to . Worst-Case Weighted Fair Queueing (WFQ)  introduced eligible virtual times and can guarantee both a lower and upper bound on error of and , respectively for network packet scheduling. It has also been applied to uniprocessor scheduling as Eligible Virtual Deadline First (EEVDF) . These algorithms provide stronger proportional fairness guarantees than other approaches, but are more difficult to implement and still require at least time.
Motivated by the need for faster scheduling algorithms with good fairness guarantees, one of the authors developed Virtual-Time Round-Robin (VTRR) . VTRR first introduced the simple idea of going round-robin through clients but skipping some of them at different frequencies without having to reorder clients on each schedule. This is done by combining round-robin scheduling with a virtual time mechanism. 's intergroup scheduler builds on VTRR but uses weight ratios instead of virtual times to provide better fairness. Smoothed Round Robin (SRR)  uses a different mechanism for skipping clients using a Weight Matrix and Weight Spread Sequence (WSS) to run clients by simulating a binary counter. VTRR and SRR provide proportional sharing with time complexity for selecting a client to run, though inserting and removing clients from the run queue incur higher overhead: for VTRR and for SRR , where and is the maximum client weight allowed. However, unlike , both algorithms can suffer from large service time errors especially for skewed weight distributions. For example, we can show that the service error of SRR is worst-case .
Grouping clients to reduce scheduling complexity has been used by ,  and . These fair queueing approaches group clients into buckets based on client virtual timestamps. With the exception of , which uses exponential grouping, the fairness of these virtual time bin sorting schemes depends on the granularity of the buckets and is adversely affected by skewed client weight distributions. On the other hand, groups based on client weights, which are relatively static, and uses groups as schedulable entities in a two-level scheduling hierarchy.
The grouping strategy used in was first introduced by two of the authors for uniprocessor scheduling  and generalized by three of the authors to network packet scheduling . A similar grouping strategy was independently developed in Stratified Round Robin (StRR)  for network packet scheduling. StRR distributes all clients with weights between and into class ( here not to be confused with our frontlog). StRR splits time into scheduling slots and then makes sure to assign all the clients in class one slot every scheduling interval, using a credit and deficit scheme within a class. This is also similar to , with the key difference that a client can run for up to two consecutive time units, while in , a client is allowed to run only once every time its group is selected regardless of its deficit.
StRR has weaker fairness guarantees and higher scheduling complexity than . StRR assigns each client weight as a fraction of the total processing capacity of the system. This results in weaker fairness guarantees when the sum of these fractions is not close to the limit of . For example, if we have clients, one of weight and the rest of weight (total weight = ), StRR will run the clients in such a way that after slots, the error of the large client is , such that this client will then run uniterruptedly for tu to regain its due service. Client weights could be scaled to reduce this error, but with additional complexity. StRR requires worst-case time to determine the next class that should be selected, where is the number of groups. Hardware support can hide this complexity assuming a small, predefined maximum number of groups , but running an StRR processor scheduler in software still requires complexity.
also differs from StRR and other deficit round-robin variants in its distribution of deficit. In DRR, SRR, and StRR, the variation in the deficit of all the clients affects the fairness in the system. To illustrate this, consider clients, all having the same weight except the first one, whose weight is times larger. If the deficit of all the clients except the first one is close to , the error of the first client will be about . Therefore, the deficit mechanism as employed in round-robin schemes doesn't allow for better than error. In contrast, ensures that a group consumes all the work assigned to it, so that the deficit is a tool used only in distributing work within a certain group, and not within the system. Thus, groups effectively isolate the impact of unfortunate distributions of deficit in the scheduler. This allows for the error bounds in to depend only on the number of groups instead of the much larger number of clients.
A rigorous analysis on network packet scheduling  suggests that delay bounds are unavoidable with packet scheduling algorithms of less than time complexity. 's error bound and time complexity are consistent with this analysis, since delay and service error are not equivalent concepts. Thus, if adapted to packet scheduling, would worst-case incur delay while preserving an service error.
Previous work in proportional share scheduling has focused on scheduling a single resource and little work has been done in proportional share multiprocessor scheduling. WRR and fair-share multiprocessor schedulers have been developed, but have the fairness problems inherent in those approaches. The only multiprocessor fair queueing algorithm that has been proposed is Surplus Fair Scheduling (SFS) . SFS also adapts a uniprocessor algorithm, SFQ, to multiple processors using a centralized run queue. No theoretical fairness bounds are provided. If a selected client is already running on another processor, it is removed from the run queue. This operation may introduce unfairness if used in low overhead, round-robin variant algorithms. In contrast, provides strong fairness bounds with lower scheduling overhead.
SFS introduced the notion of feasible clients along with a -time weight readjustment algorithm, which requires however that the clients be sorted by their original weight. By using its grouping strategy, performs the same weight readjustment in time without the need to order clients, thus avoiding SFS's overhead per maintenance operation. The optimality of SFS's and our weight readjustment algorithms rests in preservation of ordering of clients by weight and of weight proportions among feasible clients, and not in minimal overall weight change, as  claims.
Our experiences with show that it is simple to implement and easy to integrate into existing commodity operating systems. We have measured the performance of using both simulations and kernel measurements of real system performance using a prototype Linux implementation. Our simulation results show that can provide more than two orders of magnitude better proportional fairness behavior than other popular proportional share scheduling algorithms, including WRR, WFQ, SFQ, VTRR, and SRR. Our experimental results using our Linux implementation further demonstrate that provides accurate proportional fairness behavior on real applications with much lower scheduling overhead than other Linux schedulers, especially for larger workloads.
While small-scale multiprocessors are the most widely available multiprocessor configurations today, the use of large-scale multiprocessor systems is growing given the benefits of server consolidation. Developing accurate, low-overhead proportional share schedulers that scale effectively to manage these large-scale multiprocessor systems remains an important area of future work.
