2 Address Obfuscation
2.1 Obfuscating Transformations
The objectives of address obfuscation are to (a) randomize the absolute
locations of all code and data, and (b) randomize the relative distances
between different data items. These objectives can be achieved using a
combination of the following transformations:
I. Randomize the base addresses of memory regions.
By changing the base addresses of code and data segments by a random
amount, we can alter the absolute locations of data resident in
randomization is over a large range, say, between 1 and 100 million, the
virtual addresses of code and data objects become highly unpredictable.
Note that this does not
increase the physical memory requirements; the only cost
is that some of the virtual address space becomes unusable. The details
depend on the particular segment:
We note that all of the above four transformations are also implemented
in the PaX
ASLR system, but their implementation relies on kernel patches rather than
program transformations. The following two classes of transformations are
new to our system. They both have the effect of randomizing the relative
distance between the locations of two routines, two variables, or between
a variable and a routine. This makes it difficult to develop successful
attacks that rely on adjacencies between data items or routines. In addition,
it introduces additional randomization into the addresses, so that an
attacker that has somehow learned the offsets of the base addresses will
still have difficulty in crafting successful attacks.
Randomize the base address of the stack.
This transformation has the effect of randomizing all the addresses on the
stack. A classical stack-smashing attack requires the return address on
the stack to be set to point to the beginning of a stack-resident buffer
into which the attacker has injected his/her code. This becomes very
difficult when the attacker cannot predict the address of such a buffer
due to randomization of stack addresses. Stack-address randomization can
be implemented by subtracting a large random value from the stack pointer
at the beginning of the program execution.
- Randomize the base address of the heap.
This transformation randomizes the
absolute locations of data in the heap, and can be performed by allocating
a large block of random size from the heap. It is useful against attacks
where attack code is injected into the heap in the first step, and then a
subsequent buffer overflow is used to modify the return address to point to
this heap address.
While the locations of heap-allocated data may be harder to predict in
long-running programs, many server programs begin execution in response to
a client connecting to them, and in this case the heap addresses can
become predictable. By randomizing the base address of the heap, we can
make it difficult for such attacks to succeed.
- Randomize the starting address of dynamically-linked libraries.
This transformation has the effect of randomizing the location of all code
and static data associated with dynamic libraries. This will prevent existing code attacks (also called return-into-libc attacks),
where the attack causes a control flow transfer to
a location within the library that is chosen by the attacker. It will also
prevent attacks where static data is corrupted by first corrupting a pointer
value. Since the attacker does not know the absolute location of the data
that he/she wishes to corrupt, it becomes difficult for him/her to use this
- Randomize the locations of routines and static data in the
This transformation has the effect of randomizing the locations of all
functions in the executable, as well as the static data associated with
the executable. The effect is similar to that of randomizing the starting
addresses of dynamic libraries.
II. Permute the order of variables/routines. Attacks
that exploit relative distances between objects, such as attacks that
overflow past the end of a buffer to overwrite adjacent data that is
subsequently used in a security-critical operation, can be rendered
difficult by a random permutation of the order in which the variables
appear. Such permutation makes it difficult to predict the distance
accurately enough to selectively overwrite security-critical data without
corrupting other data that may be critical for continued execution
of the program. Similarly, attacks that exploit
relative distances between code fragments, such as partial
pointer overflow attacks (see Section 3.2.3),
can be rendered difficult
by permuting the order of routines. There are three possible
permute the order of local variables in a stack
- permute the order of static variables
- permute the order of routines in shared libraries or
the routines in the executable
III. Introduce random gaps between objects.
For some objects, it is not possible to rearrange their relative order.
For instance, local variables of the caller routine have to appear at
addresses higher than that of the callee. Similarly, it is not possible to
rearrange the order of malloc-allocated blocks, as these requests arrive
in a specific order and have to be satisfied immediately. In such cases,
the locations of objects can be randomized further by introducing random
gaps between objects. There are several ways to do this:
Our current implementation supports all the
for randomizing the base addresses of memory regions, none of the
transformations to reorder variables, and the first two of the
transformations to introduce random gaps.

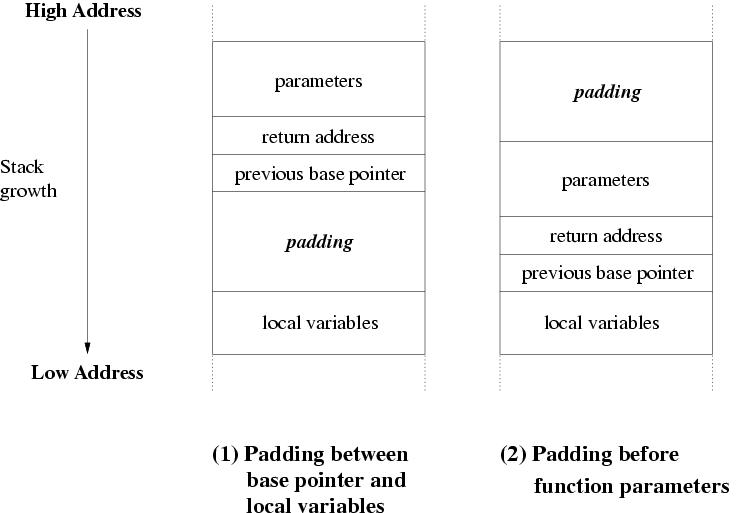

Introduce random padding into stack frames.
The primary purpose of this transformation is to randomize the
distances between variables stored in different stack frames,
which makes it difficult to craft attacks that exploit relative
distances between stack-resident data.
The size of the padding should be relatively small to avoid
a significant increase in memory utilization.
- Introduce random padding between successive
malloc allocation requests.
- Introduce random padding between variables in
the static area.
- Introduce gaps within routines, and add jump instructions
to skip over these gaps.
2.2 Implementation Issues
There are two basic issues concerning the implementation of the
above-mentioned transformations. The first concerns the timing
of the transformations: they may be performed at compile-time,
link-time, installation-time, or load-time. Generally speaking, higher
performance can be obtained by performing transformations closer to
compilation time. On the other hand, by delaying transformations, we avoid
making changes to system tools such as compilers and linkers, which makes
it easier for the approach to be accepted and used. Moreover, performing
transformations at a later stage means that the transformations can
be applied to proprietary software that is distributed only in
The second implementation issue is concerned with the time when the
randomization amounts are determined. Possible choices here are (a)
transformation time, (b) beginning of program execution, and (c)
continuously changing during execution. Clearly, choice (c) increases the
difficulty of attacks, and is hence preferred from the point of security.
Choices (a) or (b) may be necessitated due to performance or application
binary interface compatibility considerations. For instance, it is not
practical to remap code at different memory locations during program
execution, so we cannot do any better than (b) for this case. In a similar
manner, adequate performance is difficult to obtain if the relative
locations of variables with respect to some base (such as the frame
pointer for local variables) is not encoded statically in the program
code. Thus, we cannot do any better than choice (a) in this case. However,
choice (a) poses some special problems: it allows an attacker to gradually
narrow down the possibilities with every attack attempt, since the same
code with the same randomizations will be executed after a crash. To
overcome this problem, our approach is to periodically re-transform the
code. Such retransformation may take place in the background after each
execution, or it may take place after the same code is executed several
times. With either approach, there still remains one problem: a local
attacker with access to such binaries can extract the random values from
the binary, and use them to craft a successful attack. This can be
mitigated by making such executables unreadable to ordinary users.
However, Linux currently makes the memory maps of all processes to be
readable (through the special file
/proc/pid/maps), which means a
local user can easily learn the beginning of each memory segment, which
makes it much easier to defeat address obfuscation. In particular, the
attacker can easily figure out the locations of the code segments, which
makes it possible to craft existing code attacks. This is a limitation of
our current implementation.
Our approach is to delay the transformation to the latest possible stage
where adequate performance is obtainable. In our current implementation,
the transformation is performed on object files (i.e., at link-time) and
executables. For ease of implementation, we have fixed many randomizations
at transformation time, such as the gaps introduced within the stack frame
for any given function, the locations where libraries are loaded, etc.
This means that programs have to be periodically (or frequently)
re-obfuscated, which may be undesirable as the obfuscation interacts with other
security procedures such as integrity-checking of executables. We
therefore plan to move towards options (b) and (c) in the future.
Next, we describe our approach for implementing most of the above-mentioned
Our implementation targets the Intel x86 architectures
running ELF-format  executables on the Linux operating system.
2.3 Implementation Approach
Our implementation transforms programs at the binary level, inserting
additional code with the LEEL binary-editing tool . The main
complication is that on most architectures, safe rewriting of machine code
is not always possible. This is due to the fact that data may be
intermixed with code, and there may be indirect jumps and calls. These two
factors make it difficult to extract a complete control-flow graph,
necessary in order to make sure that all code is rewritten as needed,
without accidentally modifying any data. Most of our transformations, such
as stack base randomization are simple, and need to be performed in just
one routine, and hence are not impacted by the difficulty of extracting
an accurate control-flow graph. However, stack-frame padding requires a
rewrite of all the routines in the program and libraries, which becomes a
challenge when some routines cannot be accurately analyzed. We take a
conservative approach to overcome this problem, rewriting only those
routines that can be completely analyzed. Further details can be found in
2.3.1 Stack base address randomization
The base address of the stack is randomized by extra code which
is added to the
text segment of the program. The code is spliced into the execution
sequence by inserting a jump instruction at the beginning of the main routine.
The new code generates a random number between 1 and 108,
and decrements the stack pointer by
this amount. In addition, the memory region corresponding to
this ``gap'' is write-protected using the mprotect system call.
The write-protection ensures that any buffer overflow attacks that
overflow beyond the base of the stack into the read-only region will
cause the victim program to crash.
2.3.2 DLL base address randomization
In the ELF binary format, the program header table (PHT) of an
executable or a shared library consists of a set of structures which hold
information about various segments of a program. Loadable segments are
mapped to virtual memory using the addresses stored in the
p_vaddr fields of the structures (for more details, see ).
Since executable files
typically use (non-relocatable) absolute code,
the loadable segments must reside at
addresses specified by p_vaddr in order to ensure correct
On the other hand, shared object segments contain position-independent
code (PIC), which allows them to be mapped to almost any virtual address.
However, in our experience, the dynamic linker almost always chooses
to map them starting at
e.g., this is the case with
libc.so.6 (the Standard C library) on Red Hat Linux
distributions. The lowest loadable segment address specified is
0x42000000. Executables start at virtual address
0x08048000, which leaves a large amount of
space (around 927MB) between the
executable code and the space where shared libraries
are mapped. Typically, every process which uses the dynamically-linked
libc.so.6 will have it mapped to the same base address
(0x42000000), which makes the entry points of the
library functions predictable. For example, if we want to know the virtual
function system() is going to be mapped, we can run the following
$ nm /lib/i686/libc.so.6 | grep system
42049e54 T __libc_system
2105930 T svcerr_systemerr
42049e54 W system
The third line of the output shows the virtual address where
In order to prevent existing code attacks which jump to library code instead of
injected code, the base address of the libraries should be
randomized. There are two basic options for doing this, depending on when
the randomization occurs. The options are to do the randomization
(1) once per process invocation, or
The trade-offs involved are as follows:
The second approach does not provide the advantage of having a freshly
randomized base address for each invocation of the program, but does have the
benefit that it requires no changes to the loader or rest of the system.
We have used this approach in our implementation. With this approach,
changing the starting address to a different (random) location
requires the library to be re-obfuscated (to change its
preferred starting address).
Dynamically randomize library addresses using
The dynamic linker uses the
mmap system call to map shared
libraries into memory.
The dynamic linker can be instrumented to instead call a
wrapper function to mmap, which first randomizes the
load address and then calls the original mmap.
The advantage of this method is that in every program
execution, shared libraries will be mapped to different memory addresses.
- Statically randomize library addresses at link-time.
This is done by dynamically linking the executable with
a ``dummy'' shared library.
The dummy library need not be large enough to
fill the virtual address space between the segments of the executable
and standard libraries. It can simply introduce a very large random gap
(sufficient to offset the base addresses of the standard libraries)
between the load-addresses of its text and data
segments. Since shared libraries use relative
addressing, the segments are mapped along with the gap.
On Linux systems, the link-time gap can be created by using the
-Tbss, -Tdata and -Ttext.
For example, consider a dummy library which is linked by the following
$ ld -o libdummy.so -shared
dummy.o -Tdata 0x20000000
This causes the load address of the text segment of
be 0x00000000 and the load address of data segment to be
0x20000000, creating a gap of size 0x20000000.
Assuming the text segment is mapped at address 0x40014000
(Note: addresses from 40000000 to 40014000
are used by the dynamic linker itself:
the data segment will be mapped at address 0x60014000,
thereby offsetting the base address of /lib/i686/libc.so.6.
2.3.3 Text/data segment randomization
Relocating a program's text and data segments is desirable in order
to prevent attacks which modify a static variable or jump
to existing program code.
The easiest way to implement this randomization is to convert the program into
a shared library containing position-independent code, which,
when using gcc, requires compiling with the flag
The final executable is created by
introducing a new main function which loads the
shared library generated from the original program (using dlopen)
and invokes the original
This allows random relocation of the original
program's text and data segments.
However, position-independent code is less efficient than its absolute
address-dependent counterpart, introducing a modest amount of extra overhead.
An alternative approach is to relocate the program's code and data at
link-time. In this case, the code need not be
position-independent, so no performance overhead is incurred,
Link-time relocation of the starting address of the
executable can be accomplished by simple modifications to the
scripts used by the linker.
Our implementation supports both of these approaches.
Section 4 presents the performance overheads we have
observed with each approach.
Figure 3: Potential locations of padding inserted between stack frames.
2.3.4 Random stack frame padding
Introducing padding within stack frames requires that extra storage be
pushed onto the stack during the initialization phase of each subroutine.
There are two basic implementation issues that arise.
The first issue is the randomization of the padding size, which could be
static or dynamic.
Static randomization introduces practically no runtime
overhead. Dynamic randomization requires the generation of
a random number at regular intervals. Additionally, the
amount of extra code required for each function preamble is significant.
Moreover, if the randomization changes the distance between the base
of the stack frame and any local variable (from one invocation of
a function to the next) then significant changes to the code for
accessing local variables are required, imposing even more overheads.
For these reasons, we have currently chosen to statically randomize
the padding, with a different random value used for each routine.
The second issue concerns the placement of the padding. As shown in
Figure 3, there are two basic choices: (1) between
the base pointer and local variables, or (2) before parameters to the
We have implemented the first option. As mentioned earlier,
extraction of accurate control-flow graphs can be challenging
for some routines. To ensure that our transformation does not
lead to an erroneous program, the following precautions are taken:
Between the base pointer and local variables.
requires transformation of the callee to modify
the instruction which creates the space for the local variables on
the stack. Local variables are accessed using instructions
containing fixed constants corresponding to their offset from the
base pointer. Given that the padding is determined statically,
the transformation simply needs to change the constants in
these instructions. The main benefit of
this approach is that it introduces a random gap between local
variables of a function and other security-critical data on the
stack, such as the frame pointer and return address, and hence makes
typical stack-smashing attacks difficult.
- Before parameters to the function.
This is done by transforming
the caller. First, the set of argument-copying instructions is located
(usually PUSH instructions).
Next, padding code is inserted just before
these instructions. The primary advantage of this approach is that
the amount of padding can change dynamically. Disadvantages of
the approach are (a) in the presence of optimization, the
argument-pushing instructions may not be contiguous, which makes
it difficult to determine where the padding is to be introduced,
and (b) it does not make stack-smashing attacks any harder since
the distance between the local variables and
return address is left unchanged.
These precautions have limited our approach to instrument only
65% to 80% of the routines. We expect that this figure can be
improved to 90+% if we allow modifications that are not in-place,
and by using more sophisticated analysis of the routines.
Transformation is applied to only those
routines for which accurate control-flow graphs can be extracted. The
amount of padding is randomly chosen, and varies from 0 to 256,
depending on the amount of storage consumed by local variables, and the
type of instructions used within the function to access local variables
(byte- or word-offset).
From our experience on instrumentation of different binaries,
we have found that around 95-99% of the routines are completely
- Only functions which have suitable behavior are instrumented.
In particular, the function must have at least one local variable
and manipulate the stack in a standard fashion
in order to be instrumented. Moreover, the routines should be
free of non-standard operations that reference memory using relative
addressing with respect to the frame pointer.
- Only in place modification of the code is performed.
By in place, we mean that the memory layout of the routines is not
changed. This is done in order to avoid having to relocate the targets of
any indirect calls or jumps.
2.3.5 Heap randomization
The base address of the heap can be randomized using a technique similar
to the stack base address randomization. Instead of changing the stack
pointer, code is added to allocate a randomly-sized large chunk of memory,
thereby making heap addresses unpredictable. In order to randomize the
relative distances between heap data, a wrapper function is used to
intercept calls to
malloc, and randomly increase the sizes of
dynamic memory allocation requests by 0 to 25%. On some OSes,
including Linux, the heap follows the data segment of the executable. In
this case, randomly relocating the executable causes the heap to also be
