This paper appears in the proceedings of the
4th Symposium on Networked System Design and
Implementation (NSDI '07), Cambridge, MA, April 2007.
Exploiting Similarity for Multi-Source Downloads
Using File Handprints
Purdue University, Carnegie Mellon University, Intel Research
Many contemporary approaches for speeding up large file transfers
attempt to download chunks of a data object from multiple sources.
Systems such as BitTorrent quickly locate sources that have an exact
copy of the desired object, but they are unable to use sources that
serve similar but non-identical objects. Other systems automatically
exploit cross-file similarity by identifying sources for each chunk of
the object. These systems, however, require a number of lookups
proportional to the number of chunks in the object and a mapping for
each unique chunk in every identical and similar object to its
corresponding sources. Thus, the lookups and mappings in such a system
can be quite large, limiting its scalability.
This paper presents a hybrid system that provides the best of both
approaches, locating identical and similar sources for data
objects using a constant number of lookups and inserting a constant
number of mappings per object. We first
demonstrate through extensive data analysis that similarity does exist
among objects of popular file types, and that making use of it can
sometimes substantially improve download times. Next, we describe
handprinting, a technique that allows clients to locate similar
sources using a constant number of lookups and mappings. Finally, we
describe the design, implementation and evaluation of
Similarity-Enhanced Transfer (SET), a system that uses this technique
to download objects. Our experimental evaluation shows that by using
sources of similar objects, SET is able to significantly
out-perform an equivalently configured BitTorrent.
Extensive research over the
past several decades has explored many techniques to improve
data transfer speed and efficiency.
Despite this effort, bulk data transfers often remain slow for a
variety of reasons.
First, of course, receivers may be bandwidth-limited.
Second, the source or sources may be unable to saturate the receiver's
bandwidth. Third, congestion or failures in the “middle” of the
network may slow the transfer.
Downloading data from multiple sources simultaneously is a popular
technique to speed transfers when the receiver is not the bottleneck.
Many peer-to-peer content distribution
use this idea, for example.
These systems employ two basic strategies to
locate the sources of data: per-file and per-chunk.
In a per-file system, receivers locate other sources of
the exact file they are downloading
in O(1) lookups. These systems, exemplified
by BitTorrent , Gnutella  and
ChunkCast , typically use a global location service.
Unfortunately, as we explore further in Section 2,
the performance of file transfers using these systems is often
unacceptably slow, with users requiring hours or even days to download
In a per-chunk system, receivers locate sources for individual pieces,
or chunks, of the desired file. Since any given chunk in a file might
appear in several other files, finding sources for each chunk can
yield a much larger number of similar sources. The cost,
however, is performing O(N) lookups, one for each of the N chunks
in the file the receiver is trying to download. Moreover, such systems
also require a mapping between every unique chunk in the identical and
similar files and their corresponding sources, i.e., O(N) mappings
per object. Examples of per-chunk systems are
and Shark .
In this paper, we present Similarity-Enhanced Transfer (SET)—a
hybrid system that provides the best of both approaches, locating both
identical and similar sources for data chunks using O(1)
lookups and by inserting O(1) mappings per file. We justify this
approach by demonstrating that
(a) cross-file similarity exists in
real Internet workloads (i.e., files that people are actually
downloading on today's file-sharing networks); (b) we can find similar
sources in O(1) lookups; (c) the extra overhead of locating these
sources does not out-weigh the benefit of using them to help saturate
the recipient's available bandwidth. Indeed, exploiting similar
sources can significantly improve download time.
The three contributions of this paper are centered around these points.
First, we present a detailed similarity analysis of 1.7 TB of data
fetched from several active file-sharing networks. These data
represent a variety of file types, with an emphasis on multimedia files
often ignored by previous similarity studies.
Our results show that significant cross-file similarity exists
in the files that are frequently transferred on these networks.
this similarity, receivers can locate several times the number of
potential sources (Section 3).

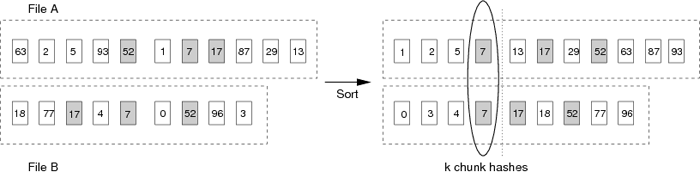

The second contribution of this paper is a technique to locate similar
sources to the file being downloaded using only O(1) lookups. This
technique, which we term handprinting, is a novel use of deterministic
sampling. Sources insert a fixed number of hashes into a global
database; receivers look up their own set of hashes in this database to
find sources of similar files. System-wide parameters determine the
amount of similarity receivers can detect (e.g., all files with x%
similarity to the target file) and with what probability they can detect
it (Section 4).
Third, to demonstrate the benefit of this approach to multi-source
downloads, we built a prototype system that uses handprinting to locate
sources of similar files (Section 5).
Our results show that the overhead of our
approach is acceptable (roughly 0.5% per similar file).
Without using similar sources, the prototype meets or exceeds BitTorrent's
performance. When we enable downloads from similar sources, the
system finds and uses these sources to greatly improve transfer
speeds (Section 6).
2 Motivation: Slow Downloads
With fast, asymmetric broadband connections, receivers are
frequently unable to saturate their available bandwidth during
downloads, even when using existing multi-source peer-to-peer download
programs. For example,
in 2003, Gummadi et al. found that 66.2% of
downloads failed, and that the median transfer time in
Kazaa for files over 100 MB was over one
In 2002, 75% of Gnutella peers had under 1 megabit of upstream
Unfortunately, our experience suggests that this situation has not
improved in the intervening years. Figure 1 shows the
CDF of throughput achieved while downloading 6208 large files from
popular file-sharing networks (the details of our measurement study
appear in Section 3.1). The median transfer
achieved under 10 Kbit/s of average throughput, and the 90th percentile only managed
50 Kbit/s, despite running these experiments from an extremely
well-connected academic network.
Figure 1: Throughput observed in 6208 file downloads from file-sharing
While they are a step in the right direction, today's
file-sharing applications clearly have room for improvement. We
hypothesize that this improvement can come from giving
these applications additional sources from which to download—specifically, by
allowing them to download from sources with files similar to their
We care about exploitable similarity that can be used to speed
transfers. In most multi-source systems, including the one we propose
here, the smallest unit of data transfer is a chunk. Chunks can have a
static or variable size. To be able to detect similarity between
mis-aligned objects, we define the chunk boundaries using Rabin
similarity means that another file shares entire chunks with the
target file that the receiver is trying to download. We therefore
define similarity as the fraction of chunks that are shared between
Prior studies have found exploitable similarity
in filesystems (particularly source code and compiler
output) , email
attachments [30, 10], HTML documents and web
objects [18, 11], and operating system and
application software . The amount of similarity
ranged from a few percent for compressed
files in filesystems, to 15% for Web objects, to 30% for email.
We were concerned, however, that such similarity would not arise in
heavily-compressed multimedia files, which comprise the bulk of
traffic on file-sharing networks.
To our surprise, we found considerable similarity in these files.
This similarity arose for many reasons;
- MP3 music files with identical sound content but different
(artist and title metadata or headers from encoding programs) were 99%
- Movies and trailers in different languages were often 15% or
- Media files with apparent transmission or storage errors differed in
a single byte or small string of bytes in the middle of the file.
- Identical content packaged for download in different ways
(e.g., a torrent with and without a README file) were almost identical.
Note that in all of these cases, the modified files (and their
hashes) differ from the originals; traditional, per-file systems
that look only for identical files cannot find and use the modified
versions as additional sources for the original (desired) object.
Furthermore, note that our similarity study
measures similarity among files exactly as they are offered online for
download (e.g., we do not uncompress, recode, etc. media files).
rest of this section, we explore the feasibility of using the
exploitable similarity among files to improve the performance of
multi-source transfers. We propose two metrics to capture the benefit
of using similar files. We apply these metrics to a large volume of
data downloaded from file-sharing networks to show the effective
increase in the number of sources that a client of one of these
networks might experience.
3.1 Data Collection
We examined several large software collections as well as
1.7 TB of files downloaded from popular file-sharing networks.
The results from analyzing the software archives were similar to
those in previous studies. Due to space constraints, we chose not to
include them here, but to instead focus on the more novel study of
File sources. We collected files from the eDonkey and
Overnet networks using the MLDonkey client  for
three months between November 2006 and February 2007. We modified the
client to record the IP addresses of the sources for files and to not
Selecting files to download.
We could only download a fraction of the files available
on these file-sharing networks, so the choice of what to download was
important. We intentionally sampled a subset of files that were
likely to be similar to each other and that we expected people
to be interested in downloading.
To do so, we selected groups of unique files returned as search
results for a given query. Our hypothesis is that files in these
groups are more likely to be similar than would two files chosen
completely at random. This approach necessarily provides only a lower
bound on similarity that really exists in the file-sharing network
(sampling more files would reveal more similarity). To find files
that people were interested in downloading, we categorize our search
terms as “popular” or “unpopular” (tail). We chose popular terms
from recent Billboard top ten audio
tracks and top ten box office results. We chose unpopular audio
from top song collections between 1990 and
2000, and video terms from one
of the authors' personal Netflix history list. We selected terms that
resulted in fewer than 50 (but at least one) search result.
Our final search terms consisted of 15 popular and 11 unpopular
song title/artist pairs plus 14 popular and 12 unpopular
movie titles. We ordered the search results by decreasing number of sources
and downloaded as many files as possible.
Cleaning the data. 2567 of the files (78% of them audio files)
we downloaded contained
garbage. A common source of garbage is services such as Overpeer,
which disseminate fake files to
discourage sharing copyrighted content .
To eliminate obviously
incorrect results, we filtered downloads by first compressing with
rzip. If the “media” files compressed more than 20%, we eliminated
them. Second, we passed MP3s through an MP3-to-WAV converter; if the
converter exited with an error, we eliminated the file. Spot checks
of the eliminated and retained files suggested that this method
produced few false positives and negatives. These garbage files are
excluded from all results in this paper—we analyzed only the
remaining 6208 files.
3.2 Summary of Similarity Study
|Median Size (MB)
|Median Avg. Throughput (Kbps)
|Median Max. Throughput (Kbps)
|Median Identical Sources
|Median Similarity (%)
|Median # Similar Files
Table 1: Similarity in different types of media. Max. throughput
refers to the maximum throughput observed during the course of a file
download. Median similarity is the median across files with non-zero
similarity; the last column shows the median number of files that were
similar to each file of this type.
Table 1 summarizes the data we collected,
broken down by the top three file types. MP3 files had a high median similarity: if
one MP3 file was similar to another, it was likely to be nearly
identical. In contrast, video files generally had lower similarity.
One reason we found for such similarity was multiple versions of the
same video in different languages. Finally, we note that the median
number of similar files is lower for video files due, in part, to the
dataset having fewer such files to examine.
3.3 Quantifying the Benefits of Similarity
The basic question we would like to answer is how much does
exploiting the observed similarity among files speed up a data
transfer. We address this question in two stages. The first step,
described in this section, is analytical. We define two
parallelism metrics and apply them to the data we downloaded.
The metrics quantify, on real data, the similarity in the data and the
resulting speedup in a transfer from using that similarity. The
second step, described in the following sections, is to understand the
practicality of using similar sources through the design,
implementation, and evaluation of a system that finds and uses such
sources for faster multi-source downloads.
The parallelism metrics attempt to quantify how many different sources
a receiver can draw from to download a particular object. One metric
assumes limited parallelism (“conservative”) and the other assumes
perfect parallelism (“optimistic”).
This analysis assumes that all sources serve chunks at the same rate
and that chunks are the same size.
Both metrics produce similar results when files are either extremely similar
or extremely dissimilar. They capture the decreasing benefit of having
many sources for only a small subset of the chunks (because the few
sources for the remaining chunks will be the bottleneck):
- Two sources that each have almost all of the chunks
of the file provide a parallelism approaching 2. Three such sources provide a
parallelism of nearly 3, and so on.
- If there are many sources for one chunk in the file, but
only one source for all of the remaining chunks, the parallelism is only
negligibly over 1.
The two metrics differ in how they treat sources with moderate
similarity. Imagine that one source has all of the blocks of the file
and another source has half of the blocks. The optimistic
metric assumes that a receiver could obtain half the blocks from one
source and half from the other, producing a parallelism of two. The
conservative metric instead accounts for the loss of flexibility in
this scenario compared to two identical sources, and assigns it a value of
1 1/3, for reasons we discuss below.
The optimistic metric assumes
that the client can download from all sources in parallel with an
optimal choice of which chunk to download from which source. Under
this optimal assignment of chunks to sources, each
source serves Cs chunks out of the total
number of chunks C. The
time to download the file, therefore, is determined only by the maximum Cs,
the largest number of chunks the receiver must download from any single source.
The parallelism, then, is C/max Cs.
The conservative parallelism metric
that a chunk can be downloaded in time inversely proportional
to the number of sources for that chunk.4 Let:
Conservative parallelism is then the ratio of the original
download time C (one unit of time per chunk) over the parallel
The conservative metric assumes limited parallelism.
Chunks are downloaded one-at-a-time, but any given chunk is downloaded
from all available sources in parallel.
In the example above with one complete source and one source with half
of the chunks, the chunk download time would be
C/C/2 · 1/2 + C/2 · 1/1 =
If instead these two sources each had a complete copy,
the parallelism would be
Which metric is correct depends on the capacities of the
sources and the network topology.
Shared bottlenecks and
differing source capacities will make the conservative metric more
accurate; independent sources with similar capacities, plus
intelligent assignment of chunks to sources, will favor the parallel
The analysis that follows uses both metrics to provide a
better picture of the potential benefits.
We examine parallelism gain, the ratio of parallelism with
similar sources to parallelism without similar sources.
3.3.1 Analysis Method
To compute the available parallelism, every 10 minutes during a
transfer, we logged both the active IP
addresses from which our clients actually downloaded a file as well as
the set of addresses returned during a search for the file.
We combined the search results by IP address: if a host serves F files
that could be useful for a download, the parallelism metrics treat it
as single source serving the union of useful chunks across all F
We define the set of sources for a file by choosing the active IPs
from one random interval during the file transfer. (The results were
the same using other choices for the sources: active IPs vs. search IPs, and one random
interval vs. the union of all IPs observed during the transfer. The choice
did not matter because parallelism gain
is relative: an increase from 2 identical sources to
4 identical plus similar sources is
equivalent to an increase from 20 to 40.)
3.3.2 Optimistic vs. Conservative
Figure 2: Optimistic and conservative parallelism gain with 16 KB
chunk size. Note that the x-axes differ.
Figure 2 shows the CDF of parallelism gain for
audio and video files split into 16 KB chunks with Rabin
fingerprinting. This graph shows three important points.
First, 20% of the audio files and 65% of video files were completely
dissimilar to the other files we downloaded (they had no exploitable
similarity). Second, as expected, the parallelism is higher for
the dataset with more samples (audio).
With a larger sample size, the study would have discovered a larger
similar sources for the video files, but (unless our sampling was
in some way biased), it would not have discovered a greater
degree of similarity among those sources.
3.3.3 Chunk Size and Parallelism
Figure 3: Conservative parallelism gain as chunk size is varied for
media files using Rabin fingerprinting.
Figure 3 shows the CDF of parallelism gain with chunk
sizes that vary from 2 KB to 128 KB. Smaller chunk sizes
take advantage of
finer-grained similarity between files,
but larger chunk sizes impose lower
overhead. We set our chunk size to 16 KB,
which imposes less than 1% per-chunk overhead in our implementation for identifying
and requesting the chunks, but gains most of the parallelism.
3.3.4 Popularity and Parallelism
Figure 4 shows that there is slightly more
parallelism gain for popular files than for unpopular files.
We attribute this difference primarily to finding a smaller number of
“variants” of the less popular content. The parallelism gain for both
categories, however, is still significant and
can be successfully exploited for objects in both categories.
Figure 4: Conservative parallelism gain for files of different popularity.
In summary, many files available on popular file-sharing networks have
exploitable similarity that could be used to increase substantially
the parallelism available for transfers. The majority of transfers
are slow (Figure 1), and these slow transfers have
available significant parallelism when using similar files.
We therefore believe that allowing clients to use these similar
sources could significantly reduce their download time, if only they
had a way to do so.
4 Handprinting to Find Similarity
This section presents handprinting, our technique for finding useful sources of
shared content. Handprinting is inspired by earlier techniques
(“shingling,” “fingerprinting,” and
deterministic sampling) often used to detect similarity
between files (e.g., for clustering search results  or
detecting spam ). Our contribution is the
adaptation and analysis of these techniques to efficiently
locate sources of exploitable similarity during file transfer;
prior work used them purely as a similarity metric.
Handprinting first divides each file into a series of
chunks, C1 ⋯ CN, obtained through Rabin fingerprinting.5
Next, it computes the hash (fingerprint) of
each chunk, and takes a deterministic sample of these fingerprints. To
sorts the hashes in lexicographic order, selects the first k
hashes (the handprint), and inserts
them into a global lookup table. To find similar files, a receiver
obtains the chunk hashes for its desired file and
searches for entries for any of the first k hashes.
The algorithm detects similar
files if they collide on any of the k chunks. This process is
illustrated in Figure 5, and we analyze the
probability of its success below.
Figure 5: Handprinting. By sorting the chunk hashes
before insertion, handprinting imposes a consistent order on hashes so
that if a set of one or more shared (shaded)
hashes are chosen from each file, the sets will intersect.
4.1 Quantifying Discovery Probability
Consider two files A and B, composed of NA and NB chunks,
respectively. A and B have m distinct chunks in common (the shaded chunks in
We assume that the hash of a chunk is deterministic (the hash of the
same data produces the same value), but that the actual value is
effectively random. What is the probability that handprinting detects two
shared files with particular values of NA,
NB, m, k?
Because the chunk hashes are sorted, the handprint will contain shared
chunks from the two files in the same order. Thus, if the
handprints of both files A and B contain at least one shared chunk
hash, that chunk hash is guaranteed to be the same chunk in both files
A and B. This is unlike randomly selecting k chunk hashes, in which
even if the handprints of both files contain a shared chunk, it may not be
the same chunk, which thus has a lower probability of intersection. The
probability of detection p, then, is simply the probability that the
handprint of each file includes one or more shared chunks:
Assuming that the file is large enough to sample with
the probability of choosing at least one shared chunk from a file is:
Thus, the total probability of detecting that the files share chunks
4.1.1 Defining similarity
If the files are the same size, the
probability of detection depends only on k and on the
fraction of chunks in the files that are shared
(m/N). This fraction is the similarity of the
two files, denoted s.
Similarity is more complicated when the two files are of different
size. If they share m chunks, is the similarity m/NA,
m/NB, or a combination? To simplify analysis, we define
the similarity as the minimum of these two
similarities. As a result, the probability we established for
detecting similarity becomes
a slightly more pessimistic lower bound,
but the inequality remains correct.
This definition is not merely a simplification, however, since it
presents an important limitation of handprinting: Given a target
file, it is easier to find shared chunks in files smaller than
the target than in files larger than the target. With the same number
of shared chunks,
smaller files will have a larger similarity value than larger files.
In practice, however, most of the cases of file similarity that we
have observed occur between files of similar size.
4.1.2 How many chunk samples?
The value of k should balance a high
chance of detecting similar files with the overhead of performing
queries. We can select k to have a certain probability of detection
p for files with similarity s:
solving for k:
Thus, for example, k = 28 provides at least a 90% chance (p ≥
0.9) of finding a file that shares 10% or more of its chunks (s
≥ 0.1) with the target file. Table 2 shows
the values of k required to detect 90% of files with a varying
Handprinting with k = 30 successfully found over 99% of files in our data set
with over 10% similarity. (Recall that for files in our data set
that shared chunks, the median similarity was higher than 10%. The
probability of finding such files was therefore higher than our 90%
|Target Similarity (s)
Table 2: Number of chunk samples for p = 0.9 as similarity is varied.
4.1.3 Handprints versus random chunk selection
Handprinting substantially improves the probability of finding similar files
versus a naive random chunk selection mechanism. In the limit, consider
a scheme that selects one chunk at random from each file. The
probability that this scheme will work is the probability of selecting
a shared chunk from the first file (m/N) and also selecting
the same chunk from the second file (1/N), or
m/N2. If the files share 10 out of 100 chunks, the
probability of detecting them using the random scheme is 0.001; using
handprints, the probability is 0.01, an order of magnitude better.
4.2 Similarity Threshold and Parallelism
Handprinting finds files with a particular threshold similarity. How
does this affect the parallelism from the previous section? The
answer depends on the distribution of similarity in the files.
Figure 6 shows the parallelism with
different thresholds, from using all files to using only those that are 90%
The left graph shows the curve for audio files, which have a
high median similarity. As a result, the available parallelism for these
files does not depend greatly on the threshold. The right graph
shows the parallelism for video files, which rely more on being
able to find less-similar files.
We choose a 10% similarity threshold as a
generally applicable value that does not impose excess overhead.
Figure 6: Conservative parallelism as the similarity threshold is varied
for smaller audio files and video files.
Note that the x-axis of the two graphs differs. The five lines on the
left graph completely overlap.
5 Design and Implementation
This section describes three aspects of the design of SET. First, we
examine how the system determines handprints, how it inserts them into a global
lookup table, and how receivers query this table to discover similar
sources. Next, we describe the surrounding multi-source framework
that we built to download files using handprinting. Finally, we briefly
discuss the implementation of SET.
5.1 Locating sources with handprinting
SET allows receivers to download objects from
multiple sources, which contain either exact or similar objects, using a
constant number of lookups. Every object in SET is identified by
its Object ID (OID), a collision-resistant hash of the object.
To download a file, the receiver must locate the sources for the
actual file it wishes to download (exact sources) and for the
other files that share chunks with the target file (similar
We assume the receiver already has a complete list of chunk
hashes for the desired object.
(For example, such hashes are included as part of the BitTorrent
uses these hashes to fetch the individual chunks from the sources it
For every object that a source makes available,
it inserts a set of mappings into a global lookup table.
This lookup table could be a Distributed Hash Table (DHT), or a service run by
a single organization such as Napster. The
lookup table contains two types of mappings: (1) chunk hash → OID, and (2)
OID → source.
Figure 7: A—Mapping in SET. Mapping 1 links chunk hashes to OIDs;
mapping 2 links OIDs to sources of those OIDs. B—SET
Mapping 1 associates the hash of a particular chunk in the object with
the object identifier for that object. There are exactly
k mappings that point to each OID, as defined in
These mappings allow receivers to
locate objects that are similar to the one they want to download.
Mapping 2 associates the OID of an object with the sources for that
object. The lookup table contains one such mapping for each source that
serves the corresponding object. If three sources serve OID
x, then three OID-to-source mappings will exist in the lookup table (but
still only k
chunk to OID mappings, since the selected chunks
will always be the same for a given OID). The mappings are shown in
Given the list of chunk hashes, the receiver computes the object's handprint
(the k chunk hashes), and looks each hash up in the global lookup table.
The result of this
query is a list of OIDs that are
exploitably similar to the desired file (they share one or more large
chunks of data).
For each OID, the receiver queries the lookup table
to determine the list of potential sources. Finally, the
receiver must query one source for each OID to obtain the list of hashes
for that OID. At this point, the receiver knows a set of sources that
have or are in the process of downloading each of the chunks in the
object the receiver wishes to download. This process is illustrated
in Figure 7-B.
This process requires a constant number of
lookups regardless of the file size: k
queries to the distributed lookup table to determine the similar files,
plus 2 × the
number of similar OIDs (first to find potential sources for each OID
and second to determine the list of hashes for each similar OID).
SET limits the number of similar OIDs to a
constant (in our implementation, 30), preferring OIDs that matched more
chunk hashes if it has an excess number of choices.
Given the list of potential sources for each chunk in the desired file,
the receiver can begin downloading the chunks in parallel from the
5.2 Retrieving Chunks
The literature is rich with optimizations for faster ways to download
chunks from multiple sources in “swarming” or “mesh”
transfers [7, 14, 5, 29, 21].
Our focus in this paper is on evaluating the benefits from handprinting,
which we believe apply to many of these systems.
We therefore implement a set of capabilities similar to
those in BitTorrent for deciding which sources to use for which
chunks, though we plan in the future to incorporate more advanced
optimizations into SET.
Maintaining an up-to-date list of sources.
New sources appear for chunks in two ways:
- A new network source arrives
- An already found source obtains a new chunk.
SET periodically queries the global lookup table for new sources
for the OIDs it has discovered, and for new OIDs that are similar
to its target file.
This low-rate periodic
refresh is particularly important when downloading large files, which
may take sufficient time that many sources may arrive or depart during
On a finer timescale,
SET directly queries other clients downloading exact and similar
files to retrieve a bitmap of which chunks the clients have.
Because they may not have received the entire file, we term
these other clients partial sources. These partial sources
insert mappings into the global table just like complete sources
Source selection heuristics.
SET uses the
rarest-random strategy , selecting
chunks uniformly at random from the rarest chunks.
It places chunks in a list with other chunks
available from the same number of sources, and processes these lists
in order. SET also implements
an “endgame mode”  similar to BitTorrent's. To
avoid waiting excessively for slow sources at the end of the transfer,
SET requests all outstanding but not yet complete chunks from
an additional randomly selected source.
SET is implemented as a set of modules within the Data-Oriented
Transfer modular framework .
DOT determines an OID as the SHA-1 hash of a file, and
a descriptor list as the set of chunk hashes for a
file. Internally, SET is added to DOT as two new modules. The
first is a storage plugin that sits between DOT and the disk.
When the client receives an object, the SET storage plugin computes
the handprint for the object using the descriptor list handed to it from DOT
and inserts it into the distributed
lookup table. This insertion allows other nodes to locate the data
objects cached by a particular node.
The second module is a transfer plugin. DOT uses transfer
plugins to send and receive chunks across the network. Transfer
plugins implement a simple API:
Hints tell the transfer plugin which sources it should attempt to
contact to retrieve the descriptor list or the data chunk.
The SET transfer plugin sits between DOT and its usual RPC-based transfer
When DOT first requests an object from the SET
transfer plugin, the plugin examines the descriptor list returned
from the sender,
computes the object's handprint, and queries the global lookup table to find
The plugin then assigns sources to each chunk
by setting the chunk's hints according to the source selection heuristics
described above. The multi-source transfer plugin then uses these
hints to download the actual chunks.
Changes to DOT. SET is one of the first complex transfer
plugins developed under DOT, and it exposed two limitations of DOT's
To correct these, we first added to the transfer plugin API a
notify_descriptors(oid, descriptors) method that lets transfer
plugins associate the descriptors they are fetching with the OID they
belong to. In the original DOT API, transfer plugins would have only
received a chunk request, with no way to find sources for the chunk
from similar files.
Next, we added a local and remote
get_bitmap call to determine which chunks of an object were
available at a node. While a DOT plugin could determine this
information locally by querying for each descriptor separately, we
felt that the efficiency gain justified adding a specialized
For efficiency, we also changed DOT's representation of OIDs and
descriptors from 40 byte hex-encoded ASCII strings to 20 byte binary
objects. While the original design favored ease of debugging and
tracing with a human-readable string, SET retrieves several
descriptor lists for each object it downloads, increasing the overhead
imposed by the prior ASCII representation.
Distributed Lookup Table. SET inserts and looks up
map entries through an RPC put/get interface. The interface supports
either OpenDHT  (a public, shared distributed
hash table that runs on PlanetLab), or our simplified, centralized
Our evaluation uses cDHT to isolate the results from
performance variation due to OpenDHT.
Our evaluation of SET examines whether our design and
implementation is able to effectively discover and use additional
sources of similar objects. The evaluation uses a mix of synthetic
data and the data collected for the similarity analysis described in
Section 3. We evaluate SET using simplified
topologies in Emulab  to examine different
aspects of its performance in isolation, and in several deployments on
PlanetLab  ranging from 9–50 nodes. To ensure that the benefits
achieved by taking advantage of similar sources are not simply
compensating for flaws in our implementation, we compare the
performance of SET to that of BitTorrent
where appropriate. For the comparison, we disabled BitTorrent's
tit-for-tat mechanism to allow it to send at full speed to all clients.
The results of our evaluation are promising: SET
matches or exceeds BitTorrent's performance on the same
topologies without using similarity.
Using even modest amounts of similarity substantially
improves SET's performance, handily outperforming the stock BitTorrent
Despite being pleased with our system's performance,
we note that we do not present this comparison to show that
our multi-source downloading is better than that of BitTorrent
or other protocols. Our contributions are the design and
evaluation of efficient mechanisms for discovering similar sources,
not any particular optimization in conventional per-file peer-to-peer
Under many circumstances, it is likely that
research peer-to-peer systems such as
Bullet Prime ,
or CoBlitz  could
outperform our prototype when SET is not using similarity. Rather, we present
the comparison to show that SET's performance is in line
with that of other modern download clients and that these systems
too could benefit from using handprinting.
6.1 Using similar sources significantly improves transfer
The experiments described in this section are run on Emulab with five receivers
attempting to download from one origin source with a variable number
of similar sources. Each node
is connected to a 100 Mbit/sec “core” via an access link whose size
varies by the experiment. To isolate the causes of slowdowns, the
access links are configured so that the core is never the
The Emulab experiments compare SET to BitTorrent
across four different network configurations. In each configuration,
all nodes have the same speed access link. The configurations are:
|384 Kbit/s up, 1500 Kbit/s down, 40 ms RTT
|768 Kbit/s up, 3000 Kbit/s down, 40 ms RTT
|1500 Kbit/s symmetric, 40 ms RTT
|(High bandwidth delay product)
|9800 Kbit/s symmetric, 400 ms RTT
For each network configuration, we measure download time for four scenarios:
|BitTorrent, no similar sources possible
|SET, no similar sources
|SET, low similarity (one 10% similar source)
|SET, modest similarity (three 15% similar sources)
|SET, high similarity (three 90% similar sources)
In the first two scenarios, the five downloaders can download only
from each other and from the origin. This provides
a baseline comparison of SET and BitTorrent. The next three
scenarios add increasing numbers of similar sources to see if SET
can use them effectively. We examine sources that are 10%, 15%, and
90% similar. 10% is SET's target minimum similarity. 15% and 90%
are the median similarity for video and audio files from our data set,
Figures 8, 9
and 10 show the average, maximum, and minimum
download times for clients for 4 MB, 10 MB and 50 MB files in these
scenarios over two runs.8 SET slightly outperforms
BitTorrent without using similar sources. By using similar sources,
SET can perform up to three times faster. Using only a single 10%
similar source reduces the average download time by 8%, showing the
benefits that arise from exploiting even small amounts of similarity.
Similarly, three 15% similar sources reduce the download time by 30% on
average. Thus, using larger numbers of similar sources provides
increasing benefits. Similar improvements occur across
all of the file sizes we examined.
Figure 8: Transfer times for a 4 MB file on Emulab for each transfer
method over four network configurations. Within a configuration, the
lines appear in the same order as in the legend
(BT, SET, SET10, SET15, SET90).
Figure 9: Transfer times for 10 MB file on Emulab
Figure 10: Transfer times for 50 MB file on Emulab
6.2 SET performs well in the real world
We ran the initial experiments (described above) on Emulab
in order to
isolate the performance effects of varying individual parameters such
as file similarity, capacity, and number of sources. In this section,
we describe several analogous experiments that we ran on
PlanetLab to confirm whether or not SET
performs on real networks in the same way it does on an
emulated one. These experiments also have five clients downloading
from one origin and a variable number of similar sources, except where
As in the previous experiments, we find that additional sources of
similarity help (and that SET is able to efficiently locate them)
to the point that the receiver's available bandwidth becomes the
bottleneck. We show this by measuring download time in three
- GREN: Nine nodes drawn from sites
on the Global Research and Education Networks (Internet2, Abilene,
etc.). These nodes are extremely well-connected.
- Mixed: Nine nodes drawn from commercial
and smaller educational networks. This set of nodes is more representative
of well-connected commercial sites. There are few enough GREN nodes
that most of the transfers occur over commercial Internet paths.
- DSL+Commercial: Eight DSL-connected PlanetLab
nodes and commercial sites. In this experiment, the similar sources
that are added are all moderately well-connected commercial sites, and
the clients are mostly DSL connected. This experiment had only four
clients because of the limited number of extremely slow clients
Figure 11: Transfer times for a 50 MB file on PlanetLab for each transfer
method over the three configurations.
Figure 11 shows the performance of SET in these
PlanetLab scenarios when transferring a 50 MB file. The numbers
presented are the average, min, and max of all of the clients across
two runs. Several conclusions are apparent from these graphs.
First, when running on the high-bandwidth GREN nodes, the benefits of
additional sources are minimal, because senders can already saturate
receivers. There is a small reduction in the maximum transfer time
from these additional sources, but we suspect this time is no different
from that of using multiple TCP connections to a single sender. The
larger difference between BT and SET is a combination of 1) SET's ability
to immediately begin downloading from the origin before contacting
a tracker (or equivalent), and 2) the interpreted
BitTorrent client requiring
slightly more CPU time under contention on the PlanetLab nodes.
Second, when running on the more constrained commercial and DSL nodes,
using additional sources provides benefit
similar to that observed in the Emulab experiments (though with
increased variance, as expected).
The huge improvement in transfer
times when using three 90% similar sources with the DSL clients (left-hand cluster of
lines in Figure 11, rightmost line) arises because one
of the similar sources has a faster commercial network connection.
When the fast source has only 15% of the blocks, it modestly improves
the transfer time, but the overall transfer remains constrained by the
slowest 85% of the chunks. However, when the fast source has a 90%
similar file, the fast clients can rapidly retrieve most of their
chunks from the fast source. While these improvements are in-line
with what one would expect,
they also show that SET is able to operate effectively when the sources and
clients have a diverse range of available bandwidth.
6.3 Scaling with additional similar sources
How well does SET scale as the system has more sources of similar
content? In this experiment, the receiver attempts to download a 10 MB
file. There is one origin source and a
varying number of different 90% similar sources.
We examine the same four network configurations used previously
(Slow DSL, Fast DSL, T1, and High BDP).
Figure 12: Scaling with a variable number of similar sources and one
Figure 12 shows two important properties of
SET. First, it effectively uses additional, similar sources
to speed transfers when the sources are the bottleneck. For the slow
the benefits increase until the receiver's capacity is
saturated by 1500/384 ≈ 4 sources. The fast DSL
behaves similarly, while the symmetric T1 link can be saturated by a
As expected, using similar sources also helps when a single TCP
connection is window limited and unable to saturate the high
bandwidth delay product link.
Second, using similar sources adds minimal overhead
in the symmetric case when a single source can saturate the receiver's
capacity (the right side of the graph for the T1). The transfer time
increases from 59.08 seconds with only the original source to 61.70
seconds with eight (unneeded) similar sources. In general, SET
incurs a roughly 0.5% overhead per additional similar file it draws
from, because SET must retrieve the full descriptor list for each
file, and it must perform periodic bitmap queries from these sources.
In practice, we expect the benefits from finding additional sources to
outweigh the small overhead required to take advantage of them.
6.4 Scenarios from File-Sharing Networks
We conclude by examining three scenarios drawn from our measurement
study of file-sharing networks. For each of these scenarios, we map
the sources and clients randomly to a pool of 50 nodes containing all
available DSL and commercial nodes on PlanetLab along with randomly
chosen GREN nodes.
Different-length movie trailers: Ten receivers attempt to
download a 55 MB file from one origin source. They are helped by 21
other sources of a 33 MB file that shares 47% of the target file's
Minimally-similar movie clips: 14 receivers download a 17 MB file
from one origin. They are helped by 32 sources of a 19 MB file that
is 15% similar to the target.
Unpopular music: Four receivers download an 11 MB
MP3 file from one origin. They are helped by four other clients
that have an MP3 file that is 99% similar to the target file.
Figure 13: Transfer times for real scenarios on PlanetLab for each transfer
SET effectively reduces the receivers' download times in these
scenarios (Figure 13). Using a 47% similar file
reduces the movie trailer download time by 36% and 30% compared to BitTorrent and
SET without similarity, respectively. In the second scenario, the
15% similar file reduced the movie clip transfer times by 36% and 26%.
Unsurprisingly, the common case of a 99% similar music file was
greatly improved using similarity, reducing its transfer time by 71%
over SET without similarity.
7 Applicability of SET
From our evaluation, we know that SET works well when there are
adequate amounts of exploitable similarity and the original senders
cannot saturate the receivers' available bandwidth. Based upon prior
work and the analysis in Section 3, we conclude
that such similarity exists in a number of important applications:
large software updates (e.g., synchronizing a large collection of
machines that may start with different versions of the software),
transmitting large email attachments, and downloading multimedia
content, among others. While our analysis focused on the latter
category, we stress that there is nothing in SET that is specific to
these file types. We emphasized them in our analysis because of their
prevalence on file-sharing networks and because prior studies of
similarity did not examine them.
Limited upstream bandwidth appears common in a number of peer-to-peer
settings. File transfers in existing networks are slow;
whether this occurs due to senders explicitly limiting their rates,
ISPs policing traffic, or limited upstream speeds does not change the
fact that receivers are unable to download at full speed. Regardless
of the cause of the bottlenecks, being able to draw from more
sources increases the likelihood of finding a fast source for the
chunks a receiver desires.
8 Related Work
This paper builds on a rich volume of work in several areas:
detecting and exploiting similar documents, systems for efficient
multi-source bulk file transfer, and peer-to-peer lookup systems.
Similarity detection via “shingling” is a popular approach
to creating metrics for the similarity between two or more documents,
for purposes of analysis , clustering
or duplicate elimination .
Shingling runs a small sliding window (often 50 bytes) along a
document, typically character by character or word-by-word, computing
a checksum or hash at each step. Shingling then computes the final fingerprint of
a document by deterministically sampling from those hashes. Handprinting
differs in goal and analysis more than in mechanism: it is designed to
detect exploitable similarity, not document resemblance, and we
provide an analysis of its effectiveness when used as the basis for a
distributed lookup mechanism.
Denehy and Hu also study a similar “sliding-block”
technique for filesystem data, finding that more than 32% of the data
in their email corpus were duplicates .
Several distributed filesystems use chunk-level similarity to
reduce duplicate transfers or storage requirements, including the Low
Bandwidth File System ,
Casper , and the Pastiche  and
Venti  backup systems. Of these systems, we call
particular attention to Pastiche, in which nodes try to back up their
data to a “backup buddy” that has substantial overlap in their
filesystem contents. Pastiche accomplishes this in a local setting by
having nodes send a random subset of their hashes to another node to
determine similarity. We believe it would be interesting to explore
whether handprints could help scale the Pastiche approach to larger
clusters of machines. The work in
presents an analysis of chunk level similarity in different workloads.
Systems such as CFS  and
Shark  exploit similarity at the chunk
level. CFS stores and retrieves blocks from a DHT while Shark stores
and retrieves chunk indexes from a DHT. In contrast to SET,
they require O(N) lookups—and perhaps more importantly, they
require O(N) state in the DHT. Shark improves on earlier DHT-based
filesystems by taking advantage of locality for caching and fetching
SET builds upon much recent work in peer-to-peer file
transfer [5, 7, 12, 14, 21, 20, 29].
SET draws techniques such as its end-game mode and its chunk
selection heuristics from BitTorrent  and Bullet
Prime . A question for ongoing research is
identifying which systems can use handprinting to find similar
sources, and which cannot.
Single-file mesh-based transfer systems such as Bullet
Prime and SplitStream  are the next step, since
they still transfer pieces of the original file. Extending SET to
coding-based approaches such as
Avalanche  seems more difficult, but
poses an interesting challenge.
In our evaluation, we focused primarily on taking advantage of
similarity when the number of sources were limited, or the available
sources all had limited bandwidth. The focus of many prior per-file
(such as CoBlitz ,
and Bullet Prime ) was on making
extremely efficient use of a larger mesh of nodes. Inasmuch as these
protocols are used in a scenario where the overlay multicast mesh they
create is capable of saturating the receivers' bandwidth, SET's
provide no improvement. If, however, these systems were used in a
situation where there was a nearby source of similar data with much
better connectivity to the receiver, using similar sources
would provide benefits
similar to those we showed in Section 6.
SET depends on a global lookup table such as a Distributed
Hash Table [26, 27].
SET is generally agnostic to the specifics of the lookup table;
we believe it could run equally well on any lookup table that allows multiple
values for a key and that allows some form of updates.
Some retrieval systems such as ChunkCast  use the
locality-aware structure of their global lookup tables (in their case,
a DHT) to combine lookups with peer
selection; we believe this approach is complementary to SET and handprinting, and that integrating the two is a promising avenue of future research.
This paper presented SET, a new approach to multi-source file
transfers that obtains data chunks from sources of non-identical, but
similar, files. We demonstrated that such similarity exists in active
file sharing networks, even among popular multimedia content. SET
employs a new technique called handprinting to locate these additional
sources of exploitable similarity using only a constant number of
lookups and a constant number of mappings per file. Evaluation
results from a variety of network configurations showed that SET
matches BitTorrent's performance without using similar sources, and
exceeds BitTorrent's performance when exploiting similarity. SET's
overhead is less than 0.5%.
We believe that handprinting strikes an attractive balance for multi-source
transfers. It efficiently locates the sources of exploitable
similarity that have the most chunks to contribute to a receiver, and
it does so using only a small, constant number of lookups. For
these reasons, we believe that this technique is an attractive one to
use in any multi-source file transfer system.
We are particularly grateful to Niraj Tolia for extensive help with DOT and
advice with content-addressable storage; to our NSDI shepherd and reviewers;
to Nick Feamster, Mike Freedman, Phil Gibbons and Mary Lou Godbe for their helpful feedback.
This work was supported in part by NSF CAREER award CNS-0546551.
S. Annapureddy, M. J. Freedman, and D. Mazières.
Shark: Scaling file servers via cooperative caching.
In Proc. 2nd USENIX NSDI, Boston, MA, May 2005.
A. Broder, S. Glassman, M. Manasse, and G. Zweig.
Syntactic clustering of the web.
In Proceedings of the 6th International WWW Conference, pages
1157–1166, Santa Clara, CA, Apr. 1997.
M. Castro, P. Druschel, A.-M. Kermarrec, A. Nandi, A. Rowstron, and A. Singh.
SplitStream: High-bandwidth content distribution in cooperative
In Proc. 19th ACM Symposium on Operating Systems Principles
(SOSP), Lake George, NY, Oct. 2003.
B.-G. Chun, P. Wu, H. Weatherspoon, and J. Kubiatowicz.
ChunkCast: An anycast service for large content distribution.
In Proc. 5th International Workshop on Peer-to-Peer Systems
(IPTPS), Santa Barbara, CA, Feb. 2006.
Incentives build robustness in BitTorrent.
In Workshop on Economics of Peer-to-Peer Systems, Berkeley,
CA,USA, June 2003.
L. P. Cox, C. D. Murray, and B. D. Noble.
Pastiche: Making backup cheap and easy.
In Proc. 5th USENIX OSDI, Boston,
MA, Dec. 2002.
F. Dabek, M. F. Kaashoek, D. Karger, R. Morris, and I. Stoica.
Wide-area cooperative storage with CFS.
In Proc. 18th ACM Symposium on Operating Systems Principles
Canada, Oct. 2001.
T. E. Denehy and W. W. Hsu.
Duplicate Management for Reference Data.
Research Report RJ10305, IBM, Oct. 2003.
F. Douglis and A. Iyengar.
Application-specific delta-encoding via resemblance detection.
In Proceedings of the USENIX Annual Technical Conference, San
Antonio, Texas, June 2003.
C. Gkantsidis and P. R. Rodriguez.
Network coding for large scale content distribution.
In Proc. IEEE INFOCOM, Miami, FL, Mar. 2005.
K. P. Gummadi, R. J. Dunn, S. Saroiu, S. D. Gribble, H. M. Levy, and
Measurement, modeling, and analysis of a peer-to-peer file-sharing
In Proc. 19th ACM Symposium on Operating Systems Principles
(SOSP), Lake George,
NY, Oct. 2003.
D. Kostic, R. Braud, C. Killian, E. Vandekieft, J. W. Anderson, A. C. Snoeren,
and A. Vahdat.
Maintaining high bandwidth under dynamic network conditions.
In Proc. USENIX Annual Technical Conference, Anaheim, CA,
A. Legout, G. Urvoy-Keller, and P. Michiardi.
Rarest first and choke algorithms are enough.
In Proc. ACM SIGCOMM Internet Measurement Conference, Rio
de Janiero, Brazil, Oct. 2006.
J. Liang, R. Kumar, Y. Xi, and K. W. Ross.
Pollution in p2p file sharing systems.
In Proc. IEEE INFOCOM, Miami, FL, Mar. 2005.
Finding similar files in a large file system.
In Proc. Winter USENIX Conference, pages 1–10, San
J. C. Mogul, Y. M. Chan, and T. Kelly.
Design, implementation, and evaluation of duplicate transfer
detection in HTTP.
In Proc. First Symposium on Networked Systems Design and
Implementation (NSDI), San Francisco,
A. Muthitacharoen, B. Chen, and D. Mazieres.
A low-bandwidth network file system.
In Proc. 18th ACM Symposium on Operating Systems Principles
Canada, Oct. 2001.
K. Park and V. Pai.
Deploying Large File Transfer on an HTTP Content Distribution
In Proc. Workshop on Real, Large Distributed Systems (WORLDS),
San Francisco, CA,
K. Park and V. Pai.
Scale and Performance in the CoBlitz Large-File Distribution
In Proc. 3rd Symposium on Networked Systems Design and
Implementation (NSDI), San Jose, CA, May 2006.
K. Park, V. Pai, L. Peterson, and Z. Wang.
CoDNS: Improving DNS performance and reliability via cooperative
In Proc. 6th USENIX OSDI, San Francisco, CA, Dec. 2004.
L. Peterson, T. Anderson, D. Culler, and T. Roscoe.
A blueprint for introducing disruptive technology into the
In Proc. 1st ACM Workshop on Hot Topics in Networks
(Hotnets-I), Princeton, NJ, Oct. 2002.
C. Policroniades and I. Pratt.
Alternatives for detecting redundancy in storage systems data.
In Proc. USENIX Annual Technical Conference, Boston, MA,
S. Quinlan and S. Dorward.
Venti: A new approach to archival storage.
In Proc. USENIX Conference on File and Storage Technologies
(FAST), pages 89–101, Monterey,
S. C. Rhea, B. Godfrey, B. Karp, J. Kubiatowicz, S. Ratnasamy, S. Shenker,
I. Stoica, and H. Yu.
OpenDHT: A public DHT service and its uses.
In Proc. ACM SIGCOMM,
A. Rowstron and P. Druschel.
Pastry: Scalable, decentralized object location and routing for
large-scale peer-to-peer systems.
In Proc. 18th IFIP/ACM International Conference on Distributed
Systems Platforms, Nov. 2001.
S. Saroiu, P. K. Gummadi, and S. D. Gribble.
A measurement study of peer-to-peer file sharing systems.
In Proc. Multimedia Computing and Networking (MMCN), Jan.
R. Sherwood, R. Braud, and B. Bhattacharjee.
Slurpie: A cooperative bulk data transfer protocol.
In Proc. IEEE INFOCOM, Hong Kong, Mar. 2004.
N. Tolia, M. Kaminsky, D. G. Andersen, and S. Patil.
An architecture for Internet data transfer.
In Proc. 3rd Symposium on Networked Systems Design and
Implementation (NSDI), San Jose, CA, May 2006.
N. Tolia, M. Kozuch, M. Satyanarayanan, B. Karp, A. Perrig, and T. Bressoud.
Opportunistic use of content addressable storage for distributed file
In Proc. USENIX Annual Technical Conference, pages 127–140,
San Antonio, TX, June 2003.
B. White, J. Lepreau, L. Stoller, R. Ricci, S. Guruprasad, M. Newbold,
M. Hibler, C. Barb, and A. Joglekar.
An integrated experimental environment for distributed systems and
In Proc. 5th USENIX OSDI, pages 255–270, Boston, MA, Dec.
F. Zhou, L. Zhuang, B. Y. Zhao, L. Huang, A. Joseph, and J. Kubiatowicz.
Approximate object location and spam filtering on peer-to-peer
In Proc. ACM/IFIP/USENIX International Middleware Conference
(Middleware 2003), 2003.
