On-Demand View Materialization and Indexing for
Network Forensic Analysis
Roxana Geambasu1, Tanya Bragin1, Jaeyeon Jung2, and Magdalena Balazinska1
| 1 Department of Computer Science and Engineering | 2 Mazu Networks |
| University of Washington, Seattle, WA | Cambridge, MA |
| {roxana,tbragin,magda}@cs.washington.edu | jyjung@mazunetworks.com |
Abstract
Today, network intrusion detection systems (NIDSs) use custom
solutions to log historical network flows and support forensic
analysis by network administrators. These solutions are expensive,
inefficient, and lack flexibility. In this paper, we investigate
database support for interactive network forensic analysis. We show that an
"out-of-the-box" relational database management system (RDBMS) can
support moderate flow rates in a manner that ensures high query
performance. To enable support for significantly higher data rates,
we propose a technique based on on-demand view materialization and
indexing. In our approach, when an event occurs, the system proactively extracts
relevant historical data and indexes it in preparation for forensic
queries over that data. We show that our approach significantly
improves response times for a large class of queries, while
maintaining high insert throughput.
1 Introduction
Traditionally, a network intrusion detection system (NIDS) monitors
traffic at a network perimeter to block known attacks and
suspicious network behavior (e.g., port scans). However, as attackers
devise new ways to compromise and exploit end hosts (e.g., email
viruses, peer-to-peer malware), many enterprises have begun to
employ more sensors inside their network to monitor internal
network activity. As such, an NIDS has evolved to support internal
network security-e.g., detecting internal worm propagation.
The main role of an NIDS is to detect and flag suspicious network
activity in near real time. Some alerts can trigger an automatic
response such as dropping malicious packets or updating a network
filter. Many alerts, however, go through a manual verification process
in order to sift out false alarms. This verification process typically
involves checking the suspected host's recent network activity and
looking up any services recently run by that host. It may also involve
forensic investigation aimed at finding the root cause of the security
breach and identifying other affected hosts. To support the network
administrator, an NIDS must thus provide not only near real time
security event detection, but also convenient and efficient access to
historical network flow data. Near real-time network event detection
has received significant attention in the
past [9,18,20]. In this paper, we
address the problem of building a historical flow database suitable
for forensic analysis queries. Figure 1 shows the
structure of an NIDS with a historical log database.
Figure 1: Network intrusion detection system with a
historical flow database. The NIDS receives network flow summary
data (such as NetFlow data [8]) from the enterprise's
internal routers, processes
them, and generates alerts. While doing so, it maintains historical flow
summary data for network forensic analysis.
Supporting a historical network flow database in conjunction with an
NIDS raises two important technical challenges. First, because network
traffic monitors generate data continuously and at high-rate, the
database needs to support a high data insertion rate. For example, in
a busy hour, a medium-size enterprise network with several thousands
of hosts may see up to 100,000 new flows per minute internally.
Second, to facilitate human-driven forensic analysis, the database
must answer historical queries quickly ( < seconds). Today, NIDSs
try to meet these challenges by implementing their own storage
systems; such custom solutions, however, are expensive to build and
often offer limited and sometimes awkward
APIs [13].
In contrast, relational database management systems
(RDBMSs) [12,14,17,19] offer many features
desirable for conducting network forensic investigations-a powerful
query optimizer, indexes, and a flexible and standard query language
(e.g., SQL). It is common belief, however, that an "out-of-the-box"
RDBMS is ill-suited to support the high data-rate workload of an
NIDS. Even if an RDBMS can store incoming data sufficiently fast to
keep-up with input data rates (by bulk loading the data, for example),
efficient querying requires indexes on multiple attributes, and
indexes are known to significantly decrease database insert
throughput [5]. Hence, it is expected that an
RDBMS would be either too slow to keep-up with network flow data rates
or it would have unacceptably slow query execution times.
In this paper, we first demonstrate this trade-off between insert
throughput and query performance for an off-the-shelf RDBMS using a
network monitoring and forensic analysis workload
(Section 2). We show that an RDBMS has excellent
insert throughput as long as it only keeps one or two indexes on the
data (23,000 flows/sec for two indexes in our experiments), but that
such a small number of indexes yields an unacceptably slow response
time for common forensic queries (from a few minutes to several
hours).
To address this shortcoming, we develop a new technique that we call
OVMI, for On-demand View Materialization and Indexing
(Section 3). The OVMI technique enables an NIDS to use
an off-the-shelf RDBMS as the network flow archive, yet ensure
both a high data insert rate and a high forensic query
performance. OVMI exploits three properties of forensic analysis
queries to achieve this goal. First, alerts produced by the NIDS
partly determine subsequent forensic queries: i.e., administrators
query the system about the historical activity of the entities
involved in the newly detected event. Second, forensic queries are
"drill-down" queries: subsequent queries refine the selection
predicates of earlier queries. Finally, having a human in the loop
creates a time delay between the time when an event occurs and the
time when a first forensic query is issued. OVMI exploits this delay
to prepare for upcoming queries.
With OVMI, the RDBMS does not index data continuously. Instead, when
an event occurs, the NIDS requests that the RDBMS heavily index
only the recent network activity of the entities involved in the
event. To ensure fast creation of these partial indexes, the RDBMS
first copies all relevant data into a separate table and builds
indexes on that table. The existence of these materialized views is
known to the NIDS but transparent to the user. We show that the OVMI
approach works well for a large class of forensic analysis queries,
where an administrator starts submitting queries within a short time
period (minutes to tens of minutes) of an event and is interested in
the past few hours worth of network flow data
OVMI improves query evaluation performance by orders of magnitudes
while supporting high data rates (up to 3,000 flows/s in our
experiments). OVMI also helps quickly produce partial results when a
query stretches past the materialized time window of data.
2 Storing Flow Records in an RDBMS
The data rate that an NIDS must handle depends on several factors,
including the number of hosts on the monitored network, the
applications that these hosts are running, and hosts' network activity
levels. Roughly, we estimate that a flow arrival rate can
easily reach 100,000 flows per minute ( » 1,700 flows/s) for a
medium-large enterprise where thousands of active hosts are generating
traffic1. The flow
arrival rate can be even higher for larger organizations or if a
network worm causes infected machines to engage in network
scans.
In this paper, we assume that an NIDS receives streams of flow
records from network sensors or routers, which track each flow,
updating the flow's attributes such as the number of packets, bytes,
and TCP flags. These sensors or routers can be configured to export
a set of flow records to an NIDS for further processing when these flows
expire. Our goal is thus to devise a historical flow database that
will easily handle flow record insert rates in excess of 3,000
flows/s. In this section, we benchmark the performance of an RDBMS in
handling such data rates while maintaining various indexes in order to
provide good query performance.
2.1 Method
We perform all experiments on a PostgreSQL 8.1.5
database [19]. PostgreSQL is one of the most advanced open
source databases. We expect the performance of commercial databases,
however, to exceed that of PostgreSQL.
For our experiments, we use two traces: Trace 1 is a 10-hour
network trace from a medium-size Internet Service Provider (ISP). This
trace is somewhat old, collected in April 2003, but contains flow
records from two hosts infected by a Code Red worm (out of 389 hosts),
scanning hundreds of thousands of IP addresses, making it suitable for
testing RDBMS performance in the presence of security events.
Trace 2 is a 22-day network trace from a small enterprise collected
in October-November 2006. Table 1 shows the main
attributes associated with the network flow data in both traces.
The average flow rates are 27 flows/s for Trace 1 and 10 flows/s for Trace 2.
Since our traces are over limited periods
of time, we cycle them to simulate more extended monitoring
activity. We also replay them at higher speeds to simulate higher data
rates.
| Column | Type | Description |
| start_ts | timestamp | start time of flow |
| protocol | varchar(10) | TCP, UDP, ICMP, etc. |
| cli_ip | int | client IP |
| srv_ip | int | server IP |
| cli_port | varchar(8) | client port |
| srv_port | varchar(8) | server port |
| app | varchar(20) | application |
| c2s_p | int(64) | # packets from client to server |
| s2c_p | int(64) | # packets from server to client |
Table 1: Schema of a network flow database. We show only
attributes relevant to our discussion. All attributes can be
obtained from network packet headers, except app (e.g.
MSExchange, Lotus Notes), which is available via payload
inspection. Flows are generated by app.
For all benchmarks, we use a machine with two Intel Xeon, 3 GHz
processors with hyper-threading enabled, 8 GB RAM, and a 369 GB,
Western Digital (SATA, 8.9ms seek, 16Mb cache, 7200 RPM) disk. We
believe that this machine is representative of what one would use for
a DBMS server.
2.2 Database Bulk Load Throughput
The database insert throughput determines the maximum average flow
rate that the database can keep up
with. Figure 2 shows the insert throughput for
increasing numbers of indexes. In this experiment, the client
bulk-loads the data, blocking between each bulk. The figure shows
results for 500-tuple bulk sizes. Error bars show maximum throughputs
as the bulk size changes. The indexed attributes are in order:
start_ts, cli_ip, srv_ip, proto,
srv_port, cli_port, and app. All indexes are B-trees to
enable range queries.
As shown in the figure, without indexes, the database can sustain
rates in excess of 45,000 flows/s. Each added index significantly
cuts the throughput. For Trace 2, even though the throughput decreases,
the database can sustain all 7 indexes and still achieve our 3,000
flows/s goal. However, this is not the case in general. For Trace 1,
the throughput falls below 3,000 flows/s after 5 indexes.
Additionally, the throughput is barely above 3,000 flows/s as soon as
the database maintains more than two indexes. Therefore, maintaining
multiple indexes is not a scalable approach to achieving high input
rates.
Figure 2: Effect of number of indexes on insert throughput.
Indexes significantly cut throughput for both traces.
Figure 3: Effect of type of indexed attribute on insert
throughput. The throughput of a database depends on the properties of the indexed attributes.
srv_ip(int) represents a hash value of the string
srv_ip(str) attribute.
Figure 2 also suggests that the effect of an
additional index on throughput depends on the properties of the
indexed attribute. Figure 3 shows this effect in more
detail by presenting the maximum insert throughput for Trace 1 with a
single index but for different indexed attributes. Attribute
properties that affect performance include the data distribution: e.g.,
start_ts is clustered and monotonically increasing, while (
srv_ip(int)) is unclustered and has a large number of distinct
values due to port scans by the infected hosts. Another important
property is the attribute's data type: e.g., indexing integers
(srv_ip(int)) goes significantly faster than indexing strings
(srv_ip). Figure 3 also shows that the database
can maintain almost the same throughput whether it has a single
multi-attribute index (e.g., (cli_ip,srv_ip)) or an
equivalent number of single-attribute indexes (e.g.,
cli_ip and srv_ip). Grouping indexes into multi-attribute
indexes thus provides minimal performance gains.
Other properties than the ones we observed can also affect
performance. However, because the choice of indexes must be based on
workload and not index performance, and because the distribution of
input data cannot be controlled, we expect the maximum possible number
of indexes to remain low in practice.
2.3 Network Forensics Queries
Suppose a host X is detected as having been scanning
hundreds of hosts on TCP port 25 at a slow rate for the past two
days. This event may lead the administrator to issue the following
queries to identify the root-cause of this scanning behavior (e.g.,
email virus propagation or unregistered email server):
(Q1) What client applications has X been running
and how much traffic was generated for each application?
SELECT count(*) FROM Flows
WHERE start_ts >= 'now - T' AND cli_ip = X
GROUP BY app
Q1 is one example of forensic analysis query. In general,
administrators need to issue several such queries, using different
attributes in their search. For example, to investigate the same alarm,
the administrator may further need to see what applications X
has been running as a server instead of
as a client (i.e., WHERE srv_ip = X) (Q2) or both as client
and server (i.e., WHERE cli_ip = X OR srv_ip = X) (Q3).
After running some initial queries, the administrator often needs to
execute additional queries to "drill-down" on the problem. Let us
assume that the administrator executed query Q3, which returned the
following result:
WEB 52563
MSExchange 2231
NETBIOS139 476
..
Given the NETBIOS and MSExchange traffic, the result suggests that the
host in question is running a Microsoft Windows operating system. The
administrator is now suspicious of a possible infection by a MyDoom
email virus. To verify her suspicion, she checks whether
X has received any traffic on port 1034 which is known to
be a backdoor used by MyDoom.
(Q4). Has X received any traffic on port 1034?
SELECT s2c_p, c2c_p FROM Flows
WHERE start_ts >= 'now - T' AND
srv_ip = X AND srv_port = 1034
The administrator may also submit more sophisticated SQL queries.
An example is to look for backdoor intrusions: the administrator
wants all pairs of malicious "triggers", in which a first
attack flow causes the victim to initiate a new flow
back to the attacker to register the success of the exploit (Q5).
SELECT * FROM Flows a, Flows b
WHERE a.srv_ip = b.cli_ip AND
a.cli_ip = b.srv_ip AND
a.srv_port = 1034 AND
a.start_ts < b.start_ts AND
b.start_ts - a.start_ts < 600 -- seconds
To support a variety of such queries effectively, an RDBMS needs to
maintain a variety of indexes on the different attributes that appear
in query predicates. With only one or two indexes, a large fraction of
queries will require scanning all historical data within the window
T, yielding an unacceptably poor performance. For example, for an
average flow rate of 3,000 flows/s and with only an index on
start_ts, Q2 takes about 19s for T=1 h, about 6 min for T=6 h,
about 57 min for T=1 day, and as much as 5.1 h for T=2 days. With
an additional index on srv_ip, the same queries take under
one second.
Fortunately, forensic queries have several properties that we can
leverage to support them efficiently:
- Forensic queries are highly predictable. By definition, these
queries request historical information about the recent network
activity of entities involved in alerts. Alert attributes (e.g.,
alert time, IP address of the machine generating the abnormal
network activity) thus determine the bulk of upcoming forensic
queries.
- Forensic queries look at a tiny fraction of all the network flow
data. In our traces, we find that even the busiest server is
responsible for less than 3% of all flows.
- Forensic analysis is usually composed of one or more drill-down
queries-subsequent queries refine the selection predicates of
earlier queries, requesting a subset of previously selected tuples.
- There is typically a time lag between the time an alert occurs
and the time an administrator investigates it.
In what follows, we propose a scheme that exploits these properties to
efficiently support network forensics queries in an off-the-shelf
relational database.
3 On-Demand View Materialization and Indexing (OVMI)
To support network forensics queries, we propose to maintain only a
full index on start_ts and create additional indexes over the
historical flow log on-demand (i.e., when an event occurs) and
partially (i.e., only index data that is relevant to the
alert). Since our scheme (OVMI) does not rely on multiple full
indexes, the database can sustain a high average insert rate of network flow
data. At the same time, because OVMI still indexes the relevant data,
it provides fast query execution. Given that forensic queries are
predictable (Section 2.3), a simple rule-based
deterministic algorithm can be used to select the predicates and
indexes for each newly detected event.
3.1 Partial Materialization and Indexing
PostgreSQL already supports partial indexes [19], where an
index is built only over tuples that match a particular predicate.
However, when building a partial index, PostgreSQL does not utilize
existing indexes that match the predicate but instead scans the
entire underlying relation. This approach is untenable in our
setting because the historical log is large and grows with time.
Instead, we propose to use a materialized view. When an alert occurs,
OVMI reacts by copying into a temporary table all network flow data
that falls within some predefined time window (T) and matches a predicate determined by the
alert. In doing so, OVMI utilizes the index on start_ts and avoids
scanning the whole relation. The following example shows a
materialized view created upon scan_event_1.
SELECT * INTO scan_event_1 FROM Flows
WHERE start_ts >= 'now - T' AND
start_ts <= now AND
(cli_ip = X OR srv_ip = X)
| Window Size |
| 1 hour | 6 hours | 1 day | 2 days |
| Scan Window | 19 s | 6.2 min | 56 min | 5 h |
| Materialize 5% | 24 s | 6.5 min | 58.4 min | 5.3 h |
Table 2: Scanning and materializing various time
windows. View materialization is largely dominated by the time
it takes to scan the window. We assume a flow rate of 3,000
flows/s and materialize 5% of the window.

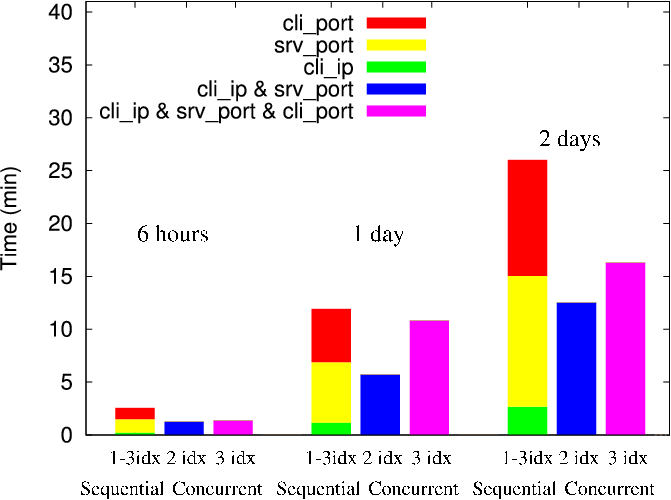

Figure 4: Time to index the materialized view. We are
showing the time to create one through three indexes concurrently
and compare it with the time to create them sequentially. Concurrent
indexing is significantly faster than sequential indexing and it is
little compared to view materialization.
As mentioned in Section 2.3, typical forensic queries
only look at a small percentage of the tuples in the time window (T).
Table 2 shows the time it takes to scan a window T and
to materialize 5% of the tuples in T, assuming a flow rate of 3,000
flows/s.2 We see that the view
materialization time is largely dominated by the time it takes to scan
the window. For example, materializing 5% of a 1-day window incurs
only about 4.2% penalty over scanning the window.
5% of a large time window can still represents a significant amount
of data if the flow rate is high. For example, six hours of flow data
at 3,000 flows/s represents 65 million tuples. While our simple
queries from Section 2.3 take on the order of seconds to
complete even on the 5% view of a 2-day window (e.g., query Q1 takes
about 80 sec), in the absence of indexes, more complex queries can take
significantly longer because the database can only access the data by
scanning it.
To achieve high query performance, indexes must be built on the
materialized view. Figure 4 shows the time to
build between one and three indexes simultaneously on the
materialized view. For 5% of one day, even three simultaneous indexes
take only about 10 min to build. Index creation drops to 1 min
for a 6-hour window. Indexing the materialized view thus adds a
small overhead compared with materializing the view in the
first place.
Overall then, the bulk of the cost to materialize and index the data
in preparation for forensic analysis queries is dominated by the time
to scan the historical window of data. The time varies greatly
depending on the size of this window. Therefore, OVMI can serve to
prepare a shorter or longer window of historical data, depending on
flow rates and the expected delay between the time an alert occurs and
the time the administrator starts his investigation. With 3,000
flows/s and for a typical scenario where the time lag is on the order
of minutes or tens of minutes, the OVMI approach enables the system to
easily pre-process over 6 hours worth of data. Additionally, as we
discuss in the following subsection, OVMI also benefits queries with a
window of interest larger than that of the materialized view.
One limitation of this approach is that potentially important network
traffic that follows the initial alert is not included in the view.
To address this limitation, we can extend the above approach as
follows. When the NIDS triggers the alert, the system materializes and
indexes a given window of data. It then continues to insert new data
into the materialized view until the administrator indicates that the
alert is no longer interesting. While updating the materialized view,
the database throughput would decrease. The decrease, however, would
be temporary. Once the threat is handled, the materialized view would
no longer need to be updated, and the database throughput would go
back to its pre-alert value.
3.2 Partitioned Query Execution
In some scenarios, forensic queries may request more information than
is available in the materialized view. For these scenarios, OVMI is
still helpful, because the materialized view that it prepares can help
answer a subset of the query faster. There exists a vast literature
on exploiting materialized views to improve query execution
performance [10,11]. In our
approach, although we support arbitrary queries over the materialized
view and the raw archive, we currently only split selection queries on
their time predicates, which is enough to demonstrate the benefit of
OVMI.
More specifically, given a query that overlaps a materialized view, we
split it into two subqueries based on time: one subquery runs on the
view exploiting its indexes, and the other one accesses the data via a
scan of the remaining time window in the Flows relation. For
example, given the sample materialized view from
Section 3 over the last T=6 h and query Q4 over
T=7 h, the query is split into the following subqueries:
(Q4.1) SELECT s2c_p, c2c_p FROM scan_event_1
WHERE srv_ip = X AND srv_port = 1034
(Q4.2) SELECT s2c_p, c2c_p FROM Flows
WHERE srv_ip = X AND srv_port = 1034
AND start_ts >= 'now - 7'
AND start_ts < 'now - 6'
Table 3 shows the performance of partitioned
Q4 queries if a materialized view indexed on srv_port
exists. We vary the overlap of the query's time interval and the
view's window. In addition to the virtually zero delay in retrieving
the first results from the indexed materialized view, splitting
the query also improves its overall performance: the larger the window covered
by the materialized view the greater the gain. For example, about 94% gain
is achieved in the favorable case of having 5 hours covered by the view and only
1 hour lying outside. In summary, OVMI greatly improves performance
not only for queries that match the materialized window of data, but
also for queries that span a larger time interval.
However, there are cases when splitting queries might penalize the
total execution time. For example, if we only materialize flows with
cli_ip = X within a certain time window, splitting the query
SELECT * FROM Flows WHERE start_ts > T AND (cli_ip = X OR
cli_ip = Y) will yield worse performance than executing the query
only on the Flows relation. For this reason, we currently do not perform
query splitting for this kind of queries, although they
still improve user-perceived latency by returning the first results fast.
| Hrs. Inside | Time |
| Mat. View + | Results from Mat. View | Unsplit |
| Hrs. Outside | + Results from Flows | Query |
| 5h + 1h | 0.02 s + 21 s | 6.3 min |
| 1h + 5h | 0.02 s + 4.8 min | 6.3 min |
Table 3: Performance of split queries. We show the
execution time for both subqueries of the split query, for
different window sizes covered by or outside the materialized
view. Splitting queries improves query performance and allows the
user to get the first results fast.
4 Related Work
Traditional NIDS systems detect intrusions, known attacks, and
suspicious network activity [18,20]. In this
paper, we focus on a newer class of NIDS systems that provide both
intrusion detection functionality and network forensic analysis by
keeping historical flow logs [1,2]. Existing NIDS
solutions use custom databases whose performance results are not
publicly available. We show that it is possible to use an open source
relational database to store network flow information and propose an
on-demand materialization and indexing technique that effectively
speeds-up forensic queries, while maintaining a high insert
throughput.
The increased popularity of monitoring applications, including network
monitoring and network intrusion detection, has lead the database
community to develop a new class of general-purpose data management
systems, called stream processing engines (SPEs)3. Examples of SPEs include:
Aurora [3], Borealis [4]
Gigascope [9], STREAM [15], and
TelegraphCQ [6]. These SPEs process flow data
directly as it arrives without storing it. As such, they provide high
performance continuous processing, but do not support forensic
analysis queries. Our approach is thus complementary to these efforts.
The Seaweed [16] peer-to-peer data management system
can serve as a historical flow database. Seaweed's focus, however, is
on the availability and scalability challenges of accessing highly
distributed data sets. It provides no mechanism for speeding-up
historical queries at each site, which is the focus of our approach.
Answering queries using materialized
views [10,11] and caching query
results [23] are known techniques to speed-up query
execution. Our contribution lies in applying these techniques to the
domain of network forensic analysis and proposing a new scheme that
materializes relevant network flow data on-demand, when an event
occurs, to speed-up upcoming queries.
Partial indexes, which enable a database to index only tuples matching
a predicate, have been investigated in the
past [21,22,24].
Our approach can be thought of as building partial indexes
on-demand. However, instead of using the native partial index
mechanism, we materialize data matching the predicate to avoid the
overhead of scanning the entire relation while building the index.
FELIX [5] is an approach for temporarily
suspending indexing archived stream data during overload. In contrast,
in our application domain, the database is unable to maintain full
indexes under normal load conditions.
Handling large amounts of historical data
is not a new problem in databases. However, most research in this area
has focused on warehousing scenarios, where data is archived, indexed
and queried offline, with plenty of time to optimize reads for data
warehousing applications [7].
5 Conclusion
Forensic analysis is a critical task in network monitoring
applications. In this paper, we proposed OVMI, an On-demand View
Materialization and Indexing technique, that enables an NIDS to use an
off-the-shelf RDBMS for its historical log. With OVMI, the system can
sustain high network flow rates, while achieving high performance for
forensic analysis queries. We showed that with a data rate of 3,000
flows/s, OVMI can prepare the system within minutes to handle forensic
analysis queries over several hours of data preceding the alert. We
view OVMI as an important step in the direction of using RDBMSs
instead of custom solutions in network monitoring applications.
One limitation of OVMI is that it improves performance for forensic
analysis queries over only the most recent several hours worth of
historical data. While this amount of data is frequently sufficient,
administrators sometimes need to access even older data. In future
work, we plan to investigate additional techniques to further improve
RDBMS support for applications within the network monitoring domain,
including efficiently querying larger volumes of historical data. We
also plan to investigate archiving and efficiently querying data other
than just flow data.
References
- [1]
-
Mazu networks.
http://www.mazunetworks.com/, 2007.
- [2]
-
Netscout.
http://www.netscout.com/, 2007.
- [3]
-
Abadi et. al.
Aurora: A new model and architecture for data stream management.
VLDB Journal, 12(2), Sept. 2003.
- [4]
-
Abadi et. al.
The design of the Borealis stream processing engine.
In Proc. of the CIDR Conf., Jan. 2005.
- [5]
-
S. Chandrasekaran.
Query processing over live and archived data streams.
Ph.D. Thesis, Univ. of California Berkley, 2005.
- [6]
-
Chandrasekaran et al.
TelegraphCQ: Continuous dataflow processing for an uncertain world.
In Proc. of the CIDR Conf., Jan. 2003.
- [7]
-
S. Chaudhuri and U. Dayal.
Overview of data warehousing and OLAP technology.
SIGMOD Rec., 26(1), 1997.
- [8]
-
Cisco Systems.
Cisco IOS NetFlow.
http://www.cisco.com/go/netflow, 2007.
- [9]
-
C. Cranor, T. Johnson, O. Spatscheck, and V. Shkapenyuk.
Gigascope: A stream database for network applications.
In Proc. of the 2003 SIGMOD Conf., June 2003.
- [10]
-
J. Goldstein and P.-A. Larson.
Optimizing queries using materialized views: a practical, scalable
solution.
In Proc. of the 2001 SIGMOD Conf., 2001.
- [11]
-
A. Y. Halevy.
Answering queries using views: A survey.
The VLDB Journal, 10(4), 2001.
- [12]
-
IBM.
DB2.
http://www.ibm.com/db2, 2006.
- [13]
-
D. N. Joel Snyder and R. Thayer.
http://www.networkworld.com/reviews/2003/1013idsrev.html?page=3, 2003.
- [14]
-
Microsoft.
SQL Server.
http://www.microsoft.com/sql/, 2006.
- [15]
-
Motwani et. al.
Query processing, approximation, and resource management in a data
stream management system.
In Proc. of the CIDR Conf., Jan. 2003.
- [16]
-
D. Narayanan, A. Donnelly, R. Mortier, and A. Rowstron.
Delay aware querying with Seaweed.
In Proc. of the 32nd VLDB Conf., Sept. 2006.
- [17]
-
Oracle.
http://www.oracle.com/, 2006.
- [18]
-
V. Paxson.
Bro: a System for Detecting Network Intruders in Real-Time.
Computer Networks (Amsterdam, Netherlands: 1999),
31(23-24):2435-2463, 1999.
- [19]
-
PostgreSQL.
http://www.postgresql.org/, 2006.
- [20]
-
M. Roesch.
Snort - lightweight intrusion detection for networks.
In Proc. of the 13th Large Installation System Administration
Conference, pages 229–-238, 1999.
- [21]
-
C. Sartori and M. R. Scalas.
Partial indexing for nonuniform data distributions in relational
DBMS's.
IEEE Transactions on Knowledge and Data Engineering,
6(3):420-429, 1994.
- [22]
-
P. Seshadri and A. N. Swami.
Generalized partial indexes.
In Proc. of the 11th ICDE Conf., 1995.
- [23]
-
J. Shim, P. Scheuermann, and R. Vingralek.
Dynamic caching of query results for decision support systems.
In SSDBM '99, 1999.
- [24]
-
M. Stonebraker.
The case for partial indexes.
Technical Report UCB/ERL M89/17, EECS Department, University of
California, Berkeley, 1989.
Footnotes:
1We have seen on average 50,000 new flows per minute
from a network with about 400 hosts in business hours.
2The results shown are for Trace 2. We found almost
identical results when using Trace 1.
3These
engines are also called data stream management systems
(DSMS) [3,15] continuous query
processors [6], and stream
databases [9]
File translated from
TEX
by
TTH,
version 3.77.
On 14 Mar 2007, 10:58.
