Very Large Scale Cooperative Experiments in Emulab-Derived Systems
Keith Sklower Anthony D. Joseph
University of California, Berkeley
Cyber-defense research has been severely limited by the lack of an
experimental infrastructure for testing new theories and new
technologies in realistic scenarios. Current testbeds are mostly
small-scale and limited to small numbers of machines. The cyber
DEfense Technology Experimental Research (DETER) testbed, provides a
medium-scale test environment with more than 300 nodes. However, there
is increasing interest in running experiments at very large scale with
more than 1,000 nodes.
This paper describes how experiments can be federated across existing
small- and medium-scale testbeds using the University of Utah's Emulab
software, such as the DETER testbed, to enable the running of
massive-scale experiments. We describe the Emulab software and the
DETER testbed and we detail the necessary steps for running a
federated experiment. We provide a status update on our progress and
discuss how a manually configured proof-of-concept experiment could be
Cyber-defense research has been severely limited by the lack of an
experimental infrastructure for testing new theories and new
technologies in realistic scenarios. It is both unclear and unproven
that technologies tested on small subnet-sized topologies modeled by a
few machines will scale up to realistic Internet-scale environments.
To perform detailed emulation and analysis of the behaviors of large
systems under attack (e.g., the Internet or large enterprise
networks), significant numbers of computers are required. As a step
towards addressing this need, the cyber DEfense Technology
Experimental Research (DETER) testbed [1,2],
which currently contains more than 300 nodes, provides an intermediate
point in this scaling range that has turned out to be a very useful
scale for many experiments.
The DETER testbed is open, free, shared infrastructure designed to
support research and education in cybersecurity. The testbed supports
medium-scale repeatable experiments in computer security, especially
those experiments that involve malicious code or cannot be performed
in the Internet because of traffic volumes or the risk of escape. The
DETER testbed provides a unique experimentation facility where
academic, industrial, and government researchers can safely analyze
attacks and develop attack mitigation and confinement strategies for
threats such as Distributed Denial of Service defenses, virus
propagation, and routing security. In addition, the testbed provides
tools and resources to enable repeatable scientific experiment
methodologies, allowing researchers to validate their own theories,
simulations, and emulations, while also enabling different researchers
to repeatably duplicate and analyze the same experiments.
The DETER testbed is controlled by a version of Utah's Emulab
software  configured and extended to provide stronger
assurances for isolation and containment. With its strong security,
containment, and usage policies, the testbed fills a role that is
currently not met by any of the other large-scale testbeds, such as
PlanetLab and Emulab. Remote experimenters can allocate large numbers
of nodes in arbitrary combinations, link them with nearly-arbitrary
topologies, load arbitrary code for routing, traffic generation and
shaping, defense mechanisms, and measurement tools, and execute their
experiments. The Emulab software provides sharing of testbed
resources among multiple concurrent experiments when enough nodes are
Even though the DETER testbed is already capable of enabling
researchers to run medium-scale experiments, more nodes are needed,
both to enable larger experiments and to handle more simultaneous
users. For example, an early DETER experiment on worm propagation
dynamics could (just) be squeezed into the then available 72 nodes,
but 100 nodes would have simplified the experiment and increased its
generality. However, not all researchers are interested in performing
very large-scale experiments. One group of researchers used all of the
to perform fine-grain analysis of enterprise networks, complete with
actual machines on individual subnets. Having additional testbed nodes
available would have enabled them to analyze a large enterprise
Given the significant researcher interest in being able to run
large-scale experiments, our goal is to build a large-scale testbed
facility capable of running these experiments. However,
we face significant limitations in available power and cooling
resources, and on the maximum floor weight loading in our machine
rooms. Thus, our initial solution has been to build the testbed as two
tightly coupled clusters running as a single logical administrative
domain and interconnected via the CALifornia REsearch Network's High
Performance Network (CALREN HPR). One cluster is located at the
University of California, Berkeley (UCB) and the other is located at
the University of Southern California's International Science
Institute (USC/ISI) (See Figure 2).

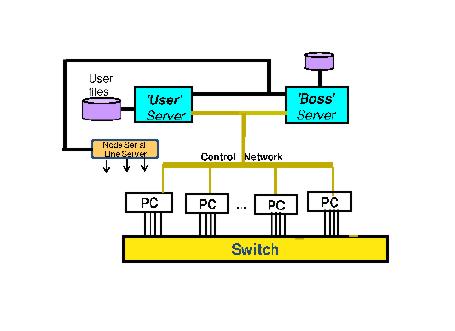

Figure 1: The Emulab Architecture.
Using this solution, one potential way of building a larger-scale
testbed would be to tightly couple together additional testbeds.
However, this approach is a partial solution, as we face the
additional limitation that the current instantiation of Emulab on
DETER has problems with loading experiments using 200 or more physical
Instead, we propose an alternate approach as a step toward the
federation of multiple, independent Emulab testbeds. We define
federation as the cross granting of experimenter access and usage
rights between separately administered testbed facilities. Effectively,
federation enables experimenters to run experiments that span multiple
separate testbeds, without the testbeds having to operate under a
single administrative domain. Each participating testbed can make its
own operational policy decisions and choices and decide whether to
admit a new federated experiment or not.
We plan to combine existing Emulab mechanisms for resource reservation
and delegation along with extensions that we have developed, to tightly
couple simultaneous experiments without immediately having to
solve the (difficult) issues of tightly coupling testbeds .
The control information that is passed using these mechanisms, along
with the rights they confer and their limitations, are more than
mere implementation details. Careful examination of this approach
will provide us with useful insights about how to dynamically federate
multiple testbeds on an ongoing basis.
The rest of the paper is organized as follows: in Section 2, we
provide a background discussion of the Emulab and DETER architectures
and firewalled experiments; in Section 3, we present our idea for a
prototype federation model and explain the challenges and potential
solutions; in Section 4, we discuss our experiences with building the
prototype solution; and in Sections 5 and 6, we acknowledge our
sponsors and discuss our conclusions.
2.1 Emulab Architecture
Figure 2: DETER Testbed Architecture.
The basic Emulab architecture consists of a set of experiment nodes, a
set of switches that interconnect the nodes, and two control nodes,
Boss and Users (see Figure 1). The switches are used to
interconnect the experiment nodes. The interconnections are physically
separated into a dedicated control network and an experiment network
for user-specified topologies. Experiment nodes may be servers,
personal computers, sensor motes, routers, or other devices, such as
Intrusion Detection Systems, Field Programmable Gate Arrays, etc. Each
experiment node has two or more network interfaces, one of which is
connected to the dedicated control network. The other interfaces are
connected to the experiment network.
The Boss server controls the testbed's operation including the ability
to power cycle individual experiment nodes, while researchers log into
the Users server to create and manage experiments and to store the
data required or generated by their experiments. The testbed's
switches are controlled using snmpit, a program that provides a
high-level object interface to the individual SNMP MIB's of testbed
switches. Other programs talk to the power controllers to power cycle
nodes, load operating systems onto experiment nodes when requested,
and interact with the database to reserve and assign nodes to
An Emulab experiment consists of a collection of nodes, software to
run on the nodes, and an interconnection topology. An experiment is
specified using a combination of a .ns file and a web
interface. The Emulab control software on the Boss server enables
multiple, separate experiments to be simultaneously run on the
testbed. The software isolates experiments by assigning each
experiment to one or more unique Virtual Local Area Networks (VLANs)
that connect together the experimental interfaces on each experiment
node either using simulated bandwidth-limited and lossy links or using
LANs. By using separate VLANs, an experiment's experimental traffic is
isolated from other experiments. To prevent one experiment's network
traffic from interfering with that of other experiments because of
insufficient internal switch or inter-switch bandwidth, the
assign program is responsible for mapping an experiment's link
bandwidth requirements onto the available switch resources in a manner
that ensures that the experiment's bandwidth demands match available
inter- and intra-switch bandwidths. Note that unless an experiment is
firewalled (as described in Section 2.3), all of the control network
interfaces are on the same VLAN.
The Emulab process of swapping in a new experiment consists of several
steps: mapping the researcher's desired network topology onto
available nodes and switch resources, configuring VLANs on the
switches to connect the experiment nodes into the researcher's desired
network topology, installing an initial minifs kernel and root
filesystem onto the experiment nodes, and then loading and running the
desired operating system and software.
In the Emulab trust and privilege hierarchy model, each researcher is
a separate user of the testbed. Users working together are
grouped into groups , and a project consists of a
collection of related groups. Users may also belong to more than one
project. Each testbed has its own complete (and independent)
trust and privilege hierarchy.
2.2 The DETER testbed
To address some of the challenges of building a large testbed, we
created the DETER testbed by grafting together two Emulab testbeds
(clusters) in a tightly coupled manner (see
Figure 2)1. The cluster interconnection consists of three network
switches connected together by two IPsec tunnels, each carrying entire
Ethernet frames including IEEE 803.11q VLAN tags. The interconnection
of the two clusters' control "planes" is provided by a virtual wire
tunneling Ethernet frames between ports on the two switches Bfoundry1
(at UCB) and Foundry4 (at USC/ISI). The interconnection between the
two experimental "planes" is between ports on Bfoundry1 and Cisco4.
Each of those switches are connected to other switches, so the large
yellow rectangles at the bottom of Figure 2 are not
single switches but collections of them.
The two clusters share a common trust structure, with periodic (daily)
replication of the Boss and Users filesystems from the USC/ISI cluster
to the UCB cluster.
The two control networks of the clusters use a quasi-static assignment
policy for allocating nodes and other resources between them. The
serial servers can each only be connected to one of the Boss servers
at a time. Both Boss servers are connected to all the switches, but
only one of them is responsible for creating and managing VLANs at any
The Emulab process of installing a 3 MByte minifs kernel and root
filesystem for a new experiment requires a TFTP transfer and takes
approximately six minutes when swapping in across the link between the
two clusters. By using a local TFTP server, we are able to reduce this
time to two seconds.
2.3 Firewalled Experiments
Figure 3: Firewalled Experiment.

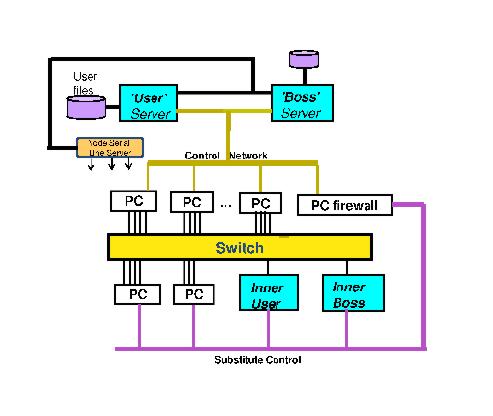

Figure 4: Firewalled Emulab-in-Emulab Experiment.
Because DETER experiments may involve risky code, such as
self-propagating worms and virus, experiments must be isolated from
external networks, such as the Internet. To provide strong isolation,
our approach to enabling federated experiments leverages Emulab's
support for firewalled experiments, which enables an experiment to be
wrapped up in a boundary-control kind of way (see
Figure 3). It is implemented by a smart (layer 2)
bridge between the testbed's control VLAN and a newly created control
VLAN containing the control network interfaces of the PC’s in the
experiment. Firewalled experiments are created using an .ns file
option and ipfw rules. It is possible to model enterprise
networks with multiple firewalls by creating multiple firewalled
experiments on a testbed.
2.4 Firewalled Emulab-in-Emulab Experiments
At a high-level, the Emulab-in-Emulab mechanism lets a researcher
reserve a group of experiment nodes and grants them the right to
dynamically change the nodes' network topology. More specifically, the
mechanism works by making a subset of the Emulab databases and
instantiating them on inner Emulab Boss and Users servers created out
of two experiment nodes (see Figure 4). The remaining
nodes are available for use by the experiment. The researcher is
granted administrator rights on the inner Emulab testbed and a login
on the inner Boss (i.e. , they can become root). The
researcher's SSL certificate is used for XML-RPC from the inner Boss
to the external (real) Boss, to request VLAN (re)configuration for any
node's (experimental) interfaces, and power cycling. The inner Users
and Boss servers insulate the external (host) testbed from the trust
and privilege structure in the inner testbed, and to a certain extent
the exact the version of Emulab running inside (to the extent that one
can devise scripts to upgrade/downgrade the schema of the database
subset transmitted from the outside testbed to the inner one). As long
as the SSH keys are the same, it will still be possible to run
experiments, even if we have different users, groups, and projects in
the inner and outer testbeds.
Figure 5: "Half" of a Prototype Federation Experiment.
From a federation standpoint, an significant advantage of being able
to support different versions of Emulab inside and outside is that it
would not be necessary to run the same version of Emulab on different
federated testbeds. Finally, the existing firewall mechanisms should
provide the same isolation for risky experiments as is currently
provided in the DETER testbed when it is connected to the Internet.
3 A Federation Prototype
Our federated experiment prototype is based on the idea of connecting
together independent Emulab testbeds by using a modified version of
firewalled Emulab-in-Emulab functionality to instantiate subsets of
the experiment within each testbed (see Figure 5).
This model of operation effectively loosely couples together the
testbeds for the purpose of running a large-scale experiment.
In the rest of this section, we first describe how a federated
experiment would ideally be performed, and then explore several
challenges and potential solutions. We also discuss several hard
problems that we have not yet addressed in our federation prototype.
The process of executing a federated experiment proceeds as follows:
- First, instantiate simultaneous firewalled Emulab-in-Emulab
(elab-in-elab) experiments at multiple testbed facilities.
- Next, co-opt the inner Users and Boss nodes:
- Designate one set of nodes as the master nodes for the
- Ignore User ID assignments and permissions at all nodes,
except for the master nodes.
- The next step is to "implode" the (inner) databases to extract a description of
- Now Emulab's assign process can be run on the entire assemblage of
nodes. We then separate out all the database state and distribute it
to each local site's Boss server, and each local site's Boss server
merges everything back in.
- Then have each inner Boss server request instantiation of the
topology at that site.
- Have each site reports back the assigned VLAN tag numbers.
- Distribute the necessary disk images from the master to each
site's Boss server via scp and then have each local Boss
server load the operating systems on its local nodes.
- Then construct IPsec tunnels between the firewalled experiments which
translate the tags appropriately. Kevin Lahey at ISI has implemented
two independent techniques for doing this; one using the Click
router (at our suggestion) and an independent way using the netgraph
mechanism in FreeBSD 6.
- Finally, the experiment runs...
3.1 Challenges and Potential Solutions
Running federated experiments in the wide-area introduces several new
challenges, some of which we have already encountered in connecting
the USC/ISI and UCB clusters. Here is a description of some of the challenges
and potential solutions.
- Running the UDP-based services that Emulab depends on for its
operation in the wide area (e.g. , DHCP, bootinfo, TFTP, and
NFS) might not work and even multicast in the wide area has already
been problematic for us. The solution to this problem is easy, each local
Boss and Users server provides these services locally. Our idea for
DNS is that the /etc/resolv.conf file has a search directive
listing all the federating experiment suffices, and each local boss
has an "NS" reference to the master site for all the other
experiment suffixes. For example, it is already the case that
boss.elabelab.DETER.emulab.net is a legitimate, resolvable domain
name, and thus we could replace "boss" with any other virtual node
name in its portion of a federated experiment.
- Collisions in the IP space for unroutable control interfaces could
occur. As long as the local (inner) Boss server has sole
responsibility for DHCP responses to its nodes and it can reach its
outer Boss server, there should be no problems with temporarily
renumbering the control net. Note that we have not yet encountered this
- Collisions in the name space of nodes, node_types, OS ID's, and
image ID's could occur. One solution would be to append the testbed's
domain name to each identifier (e.g. ,
firstname.lastname@example.org), however the length of names might be an
issue. An alternative would be to have a table in the database that
maps from short prepended identifiers to testbeds. For example,
- ut < anything > maps to emulab.net
- wi < anything > maps to wail.wisc.edu
- cu < anything > maps to cornell.edu
- vb < anything > maps to vanderbilt.edu
- isi < anything > maps to isi.deterlab.net
- ucb < anything > maps to ucb.deterlab.net
- Operating system images for nodes at different sites might not
be compatible. This is already an open issue for the existing Emulab
testbeds as new types of nodes are added. One potential solution
would be to create universal system images that include drivers for
a broad set of hardware types. However, differences between nodes
may still be an issue (e.g. different mappings from the BIOS
to COM ports is an issue we previously encountered).
3.2 Hard Problems Not Addressed in an Initial Prototype
While we are confident that we have viable solutions for the problems
discussed in the previous section, there are several hard problems
that we have not yet addressed in our initial prototype, including
synchronizing the swap in of multiple experiments and multiple sites,
the requirement for accounts at all sites, and complex permissions and
trust management requirements.
The first major problem is the simple requirement to schedule the
availability of a major fraction of the available nodes at
the participating sites so that they are all simultaneously avaiable.
This is, in of itself, quite a challenge given the competition
for the resources at key participating sites.
The second problem, swapping in of a single experiment of a thousand
nodes among several federated sites in a truly automated way,
would require the synchronization of VLAN assigments across
all the sites. Given the current emulab software, one process must
survey all of the vlan tags in use at that moment in all of the switches,
and then compute what vlan numbers are available. Futhermore, it
cannot allow any other swap-in at any other site to construct any other vlan
until all of the vlans are instantiated in every switch.
the sites. Obviously, this requirement introduces the potential
for deadlock or significant delays if sites are slow in responding or
Our strategy of rewriting the vlan tags allow for each site to
contruct its vlans separately and mitigates the problem, but there is
still a requirement for synchronization after that is done.
The Utah emulab staff has proposed altering the snmpit software
so that all vlan assignments would be stored in the
database, and the tags computed on the basis of that, at the time of
swap-in, which additionally would permit vlan construction to proceed
simultaneously in all switches.
The current federation model requires that a researcher have
accounts at all the participating sites, however related to the
problem of permissions and trust management, the developers at Utah
have suggested that permissions and trust management could be pushed
down a level. For example, suppose there is a DETER project at Utah's
Emulab (www.emulab.net). Then, projects at www.isi.deterlab.net might
turn into groups within the DETER project at www.emulab.net. Thus, we
could both avoid the problem of requiring accounts at all sites by
using a single account, and address the permissions and trust
management issue through delegation back to the originating site (and
that site's account on the federated testbed). There is still the
policy issue of defining which remote testbed's users would be allowed
to access a local testbed resources.
4 Our Experiences and Status
In this section we provide an update on our efforts to build a working
federation prototype and discuss some of the experiences and lessons
We have implemented support for steps 1 through 3 (see Section 3):
site prefixing, inner database implosion, the running of assign
on the assemblage of nodes, redistribution of consequent database
state to the remote sites, identification of cross-campus links and
mediation of differing software levels and trust structures between
campuses (e.g. , running an instance of Emulab-in-Emulab at
DETER where the inner testbed software is within a couple of weeks of
what is currently running at Utah, and the outer testbed structure is
10 months older than that). Implementing the changes took about 700
lines of changes distributed among a dozen files.
We have succeeded in getting assign to process with a single
.ns file describing nodes on two campuses, and have verified
that we have a sufficiently complete list of the tables to be
subsetted from the combined database and sent back to each federated
site to reflect its share of the experiment (step 4). We have already
made the modifications to the swap-in process to enable the rest of
the activity that occurs after the assignment process, and tested it
with a manual swap in of two halves of an experiment at Berkeley and
An issue that needs to be addressed in the future is that assign
uses statically allocated arrays for some characteristics, such as
node_type. The limits are unlikely to be reached in federating two or
three large sites (e.g. , DETER, Utah, and Vanderbilt). A
bigger question is the computational complexity of the assignment
algorithm and whether it will succeed for 1,000 nodes.
For steps 5 through 6, the Utah Emulab staff has already adopted earlier
minor changes we proposed to the VLAN control privileges granted to
elab-in-elab experiments so that the inner testbed can request two
additional services from the outer Emulab: placing experimental
interfaces in trunked mode (something that non-elab-in-elab
experiments can already do), and retrieving the list of actual VLAN
tags in use at each site so that the tags can be rewritten by the
inter-site firewalls. The earlier changes required about 500 lines of
new or changed code in 5 files.
The processes of assigning VLANs, loading operating systems (step 7),
and replacing the trust structure in the satellite sites, are all
working now. We are, at time of the publication of this paper,
continuing to resolve some minor details in the conjoining of the
inner control networks (step 8) and the running of the Emulab
4.1 A Manual Federation Experiment
While we have made significant progress towards the ultimate goal of
automated federation of experiments, we are currently at the state
where manual intervention still is required. The necessary technology
is in place to allow us to use manual configuration and commands to
demonstrate 1,000 experiment nodes interacting on a distributed
More specifically, the way it would be done is that at each of the
participating sites, we would instantiate separate experiments with
separate .ns files and then we would manually configure
tunneling of the constructed VLANs. The tunneling would require
rewriting of the actual VLAN tags using one of the solutions we
If the experiment also requires that the control interfaces in each
testbed talk with each other, then it would be necessary to tunnel the
control networks together (since the control network addresses are
private and unroutable), and it would be prudent to place the each
participating group in a firewalled experiment to contain the control
network traffic. Placing each federated group in a firewalled
elab-in-elab experiment would allow very stringent firewall rules,
such as allowing only SSH and XML-RPC traffic from the outside to the
This manual process should be possible to do now, however it would
require operators at each site to use the snmpit command to
place a normally experimental network interface on a node with
external Internet access into trunked mode, and then add all the VLANs
to be tunneled onto that interface. It would also require punching a
hole in the firewall rules to permit UDP traffic between the
Kevin Lahey at ISI is currently pursuing a small scale demonstration
of this manual approach with the WAIL group at Wisconsin, however he
has encountered two problems: they are currently running an older
version of Emulab that does not have the necessary emulab-in-emulab
features, and the Wisconsin firewall is blocking the UDP ports
necessary for tunneling purposes.
This research was supported by funding from the United States National
Science Foundation (NSF), the United States Department of Homeland
Security (DHS), and Space and Naval Warfare Systems Center, San Diego,
under contract numbers ANI-0335298 (DETER), CNS-0454381 (DECCOR), and
N66001-07-C-2001 (DIPLOMAT). Juniper Networks and Hewlett-Packard (HP)
donated equipment used by the DETER testbed. Donations were also
received from Sun Microsystems and Dell through their University
Opinions, findings, conclusions and recommendations expressed in this
paper are those of the authors and do not necessarily reflect the
views of the NSF, DHS, the Space and Naval Warfare Systems Center, San
Diego, Juniper Networks, HP, Sun Microsystems, or Dell. Figures and
descriptions are provided by the authors and are used with permission.
The growing interest in large-scale testing of cybersecurity
applications is leading to increasing demand for large
testbeds. However, a large testbed requires substantial power and
cooling resources from a site and imposes a significant amount of
As an alternative to a single large testbed, we have presented
techniques for running massive experiments between cooperating
Emulab-derived testbed facilities. The experience gained will help us
understand the operational and administrative issues with federating
We discussed the specific steps, several challenges with known
solutions, and some open challenges. We also provided a status update
on our progress, and outlined a proof-concept experiment that uses
manual configuration to demonstrate the feasibility of our approach.
Bajcsy, R. et. al. .
Cyber defense technology networking and evaluation.
Communications of the ACM 47, 3 (March 2004), 58-61.
Benzel, T., Braden, B., Kim, D., Neuman, C., Joseph, A. D., Sklower, K.,
Ostrenga, R., and Schwab, S.
Experience with deter: A testbed for security research.
In 2nd International IEEE/Create-Net Conference on Testbeds and
Research Infrastructures for the Development of Networks and Communities
(March 2006), Barcelona, Spain.
White, B., Lepreau, J., Stoller, L., Ricci, R., Guruprasad, S., Newbold,
M., Hibler, M., Barb, C., and Joglekar, A.
An integrated experimental environment for distributed systems and
In 5th Symposium on Operating System Design and Implementation
(OSDI 2002) (December 2002).
1A more detailed description of the
DETER testbed can be found in another paper accepted to this
File translated from
On 17 Jul 2007, 15:03.
