DryadLINQ: A System for General-Purpose Distributed
Data-Parallel Computing Using a High-Level Language
Yuan Yu Michael Isard Dennis Fetterly Mihai Budiu
Ślfar Erlingsson1 Pradeep Kumar Gunda Jon Currey
Microsoft Research Silicon Valley 1joint affiliation, Reykjavķk University, Iceland
DryadLINQis a system and a set of language extensions that enable a
new programming model for large scale distributed computing. It
generalizes previous execution environments such as SQL, MapReduce, and
Dryad in two ways: by adopting an expressive data model of strongly
typed .NET objects; and by supporting general-purpose imperative and
declarative operations on datasets within a traditional high-level
A DryadLINQprogram is a sequential program composed of LINQ
expressions performing arbitrary side-effect-free transformations on datasets, and can be written
and debugged using standard .NET development tools. The DryadLINQ
system automatically and transparently translates
the data-parallel portions of the program into
a distributed execution plan which is passed to the Dryad execution
platform. Dryad, which has been in continuous operation for several years on production
clusters made up of thousands of computers, ensures
efficient, reliable execution of this plan.
We describe the implementation of the DryadLINQcompiler and runtime.
We evaluate DryadLINQon a varied set of programs drawn from domains
such as web-graph analysis, large-scale log mining, and machine learning.
We show that excellent absolute performance can be attained-a general-purpose sort of 1012 Bytes of
data executes in 319 seconds on a 240-computer, 960-disk cluster-as
well as demonstrating near-linear scaling of execution time on representative
applications as we vary the
number of computers used for a job.
The DryadLINQsystem is designed to make it easy for a wide variety
of developers to compute effectively on large amounts of data.
DryadLINQprograms are written as imperative or declarative
operations on datasets within a traditional high-level programming
language, using an expressive data model of strongly typed .NET
objects. The main contribution of this paper is a set of language
extensions and a corresponding system that can automatically and
transparently compile imperative programs in a general-purpose
language into distributed computations that execute efficiently on
large computing clusters.
Our goal is to give the programmer the illusion of writing for a
single computer and to have the system deal with the complexities
that arise from scheduling, distribution, and fault-tolerance.
Achieving this goal requires a wide variety of components to interact,
including cluster-management software, distributed-execution
middleware, language constructs, and development tools.
Traditional parallel databases (which we survey in
Section 6.1) as well as more recent
data-processing systems such as MapReduce  and
Dryad  demonstrate that it is possible to implement
high-performance large-scale execution engines at modest financial
cost, and clusters running such platforms are proliferating. Even so,
their programming interfaces all leave room for improvement.
We therefore believe
that the language issues addressed in this paper are currently among the
most pressing research areas for data-intensive computing, and
our work on the DryadLINQsystem follows from this belief.
(Language INtegrated Query , a set of .NET constructs for
programming with datasets) to provide a
particularly powerful hybrid of declarative and imperative
programming. The system is designed to provide flexible and efficient distributed
computation integrated within any LINQ-enabled programming
language including C#, VB, and F#.
The objects in DryadLINQdatasets can be of
any .NET type, making it easy to compute with data such as image
patches, vectors, and matrices. DryadLINQprograms can use
traditional structuring constructs such as functions, modules, and
libraries, and express iteration using standard loops. Crucially,
the distributed execution layer employs a fully functional,
declarative description of the data-parallel component of the
computation, which enables sophisticated rewritings and optimizations
like those traditionally employed by parallel databases.
In contrast, parallel databases implement only declarative variants
of SQL queries. There is by now a widespread belief that SQL
is too limited for many applications [15,26,31,34,35].
One problem is
that, in order to support database requirements such as in-place
updates and efficient transactions, SQL adopts a very restrictive type
system. In addition, the declarative "query-oriented" nature of SQL
makes it difficult to express common programming patterns such as
iteration . Together, these make SQL unsuitable
for tasks such as machine learning, content parsing, and web-graph
analysis that increasingly must be run on very large datasets.
The MapReduce system  adopted a radically simplified
programming abstraction, however even common operations like database
Join are tricky to implement in this model. Moreover, it is necessary
to embed MapReduce computations in a scripting language in
order to execute programs that require more than one
reduction or sorting stage.
Each MapReduce instantiation is self-contained and no automatic
optimizations take place across their boundaries. In addition, the
lack of any type-system support or integration between the MapReduce
stages requires programmers to explicitly keep track of objects
passed between these stages, and may complicate long-term maintenance
and re-use of software components.
Several domain-specific languages have appeared on top of the
MapReduce abstraction to hide some of this complexity from the
programmer, including Sawzall ,
Pig , and other unpublished systems such as
Facebook's HIVE. These offer a limited hybridization of declarative
and imperative programs and generalize SQL's stored-procedure model.
Some whole-query optimizations are automatically applied by these systems
across MapReduce computation boundaries. However, these approaches
inherit many of SQL's disadvantages, adopting simple
custom type systems and providing limited support for iterative
computations. Their support for optimizations is less advanced than
that in DryadLINQ, partly because the underlying MapReduce execution
platform is much less flexible than Dryad.
DryadLINQand systems such as MapReduce are also distinguished from traditional
databases  by having virtualized expression
plans. The planner allocates resources independent of
the actual cluster used for execution. This means both that DryadLINQcan run
plans requiring many more steps than the instantaneously-available
computation resources would permit, and that the computational
resources can change dynamically, e.g. due to faults-in essence, we
have an extra degree of freedom in buffer management compared with
A downside of virtualization is
that it requires intermediate results to be stored to persistent
media, potentially increasing computation latency.
This paper makes the following contributions to the literature:
Section 2 provides a high-level overview of the steps
involved when a DryadLINQprogram is run.
Section 3 discusses LINQ and
the extensions to its programming model that comprise
DryadLINQalong with simple illustrative examples.
Section 4 describes the
DryadLINQimplementation and its interaction with the low-level Dryad
primitives. In Section 5 we evaluate our system
using several example applications at a variety of scales.
Section 6 compares DryadLINQto
related work and Section 7 discusses limitations of
the system and lessons learned from its development.
- We have demonstrated a new hybrid of declarative and imperative
programming, suitable for large-scale data-parallel computing using
a rich object-oriented programming language.
- We have implemented the DryadLINQsystem and validated the
hypothesis that DryadLINQprograms can be
automatically optimized and efficiently executed
on large clusters.
- We have designed a
small set of operators that improve LINQ's support for
coarse-grain parallelization while preserving its programming model.
2 System Architecture
DryadLINQcompiles LINQ programs into distributed computations
running on the Dryad cluster-computing infrastructure .
Dryad job is a directed acyclic graph where each vertex is a program
and edges represent data channels. At run time, vertices are processes
communicating with each other through the channels, and each channel
is used to transport a finite sequence of data records. The data model
and serialization are provided by higher-level software layers, in
this case DryadLINQ.
Figure 1: Dryad system architecture.
NS is the name server which
maintains the cluster membership. The job manager is responsible for spawning
vertices (V) on available computers with the help of a remote-execution
and monitoring daemon (PD). Vertices exchange data through files,
TCP pipes, or shared-memory channels. The grey shape indicates the
vertices in the job that are currently running and the
correspondence with the job execution graph.
Figure 1 illustrates the Dryad system
architecture. The execution of a Dryad job is orchestrated by a
centralized "job manager."
The job manager is responsible for: (1)
instantiating a job's dataflow graph; (2) scheduling processes on
cluster computers; (3) providing fault-tolerance by re-executing
failed or slow processes; (4) monitoring
the job and collecting statistics; and (5) transforming the job graph
dynamically according to user-supplied policies.
A cluster is typically controlled by a task scheduler, separate from
Dryad, which manages a batch queue of jobs and executes a few at a
time subject to cluster policy.
2.1 DryadLINQExecution Overview
Figure 2 shows the flow of execution when a
program is executed by DryadLINQ.

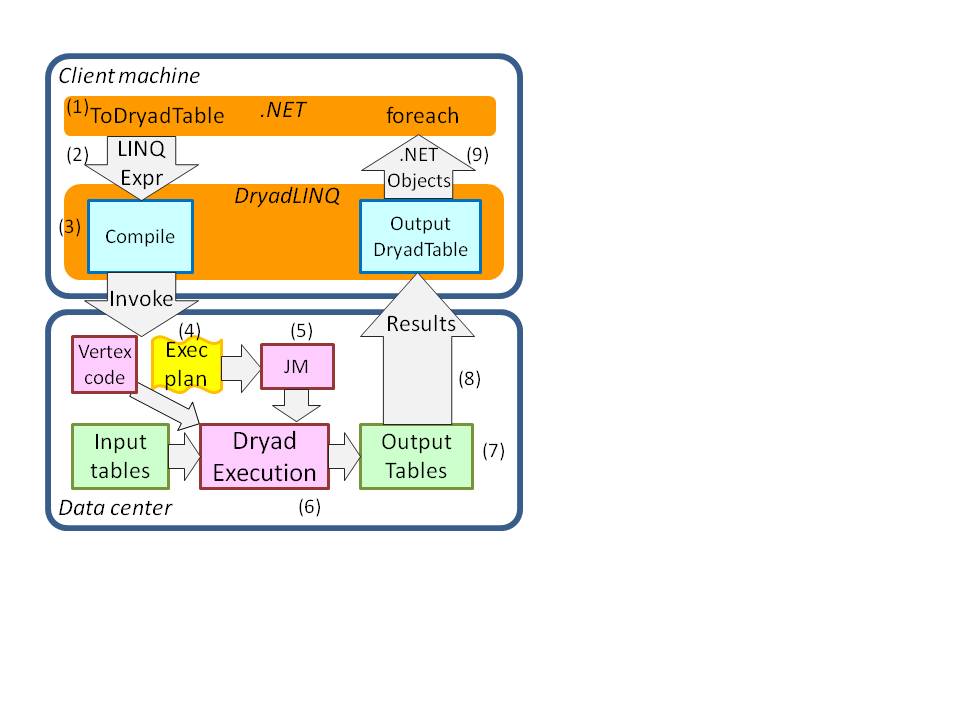

Figure 2: LINQ-expression execution in DryadLINQ.
- Step 1.
- A .NET user application runs. It creates a DryadLINQexpression
object. Because of LINQ's
deferred evaluation (described in Section 3), the actual execution of the expression has not occurred.
- Step 2.
- A call within the application to ToDryadTable
triggers a data-parallel
execution. The expression object is handed to DryadLINQ.
- Step 3.
- DryadLINQcompiles the LINQ expression into a
distributed Dryad execution plan. It performs: (a) the
decomposition of the expression into subexpressions, each to be run in a
separate Dryad vertex; (b) the generation of code and static data for the
remote Dryad vertices; and (c) the generation of serialization code for
the required data types.
Section 4 describes these steps in detail.
- Step 4.
- DryadLINQinvokes a custom, DryadLINQ-specific, Dryad job manager.
The job manager may be
executed behind a cluster firewall.
- Step 5.
- The job manager creates the job graph using the plan created in Step 3. It schedules and spawns the
vertices as resources become available. See Figure 1.
- Step 6.
- Each Dryad vertex executes a
vertex-specific program (created in Step 3b).
- Step 7.
- When the Dryad job completes successfully it writes the
data to the output table(s).
- Step 8.
- The job manager process terminates, and it returns
control back to DryadLINQ. DryadLINQcreates the local
DryadTable objects encapsulating the outputs of the execution.
These objects may be used as inputs to subsequent expressions in the
user program. Data objects within a DryadTable output are
fetched to the local context only if explicitly dereferenced.
- Step 9.
- Control returns to the
user application. The iterator interface over a DryadTable
allows the user to read its contents as .NET objects.
- Step 10.
- The application may generate subsequent DryadLINQ
expressions, to be executed by a repetition of Steps 2-9.
3 Programming with DryadLINQ
In this section we highlight
some particularly useful and distinctive aspects
More details on the programming model
may be found in
LINQ language reference  and materials on the
DryadLINQproject website  including a language
companion technical report  contains
listings of some of the sample programs described below.
The term LINQ  refers to a set of .NET constructs for manipulating sets and
sequences of data items.
We describe it here as it applies to C# but DryadLINQprograms have
been written in other .NET languages including F#. The power
and extensibility of LINQ derive from a set of design choices that
allow the programmer to express complex computations over
datasets while giving the runtime great leeway to decide how these
computations should be implemented.
The base type for a LINQ collection is IEnumerable<T>. From a
programmer's perspective, this is an abstract dataset of objects of
type T that is accessed using an iterator interface. LINQ also
defines the IQueryable<T> interface which is a subtype of
IEnumerable<T> and represents an (unevaluated) expression
constructed by combining LINQ datasets using LINQ operators.
We need make only two observations about these types:
(a) in general the programmer neither knows nor cares what concrete
type implements any given dataset's IEnumerable interface;
and (b) DryadLINQcomposes all LINQ expressions into
IQueryable objects and defers evaluation until the result is
needed, at which point the expression
graph within the IQueryable is optimized and executed in its
entirety on the cluster. Any IQueryable object can be used as an argument to
multiple operators, allowing efficient re-use of
LINQ expressions are statically strongly typed with a sophisticated
use of nested generics, although the compiler hides much of the
type-complexity from the user by providing a range of "syntactic sugar."
Figure 3 illustrates LINQ's syntax with a
fragment of a simple example program that computes the top-ranked
results for each query in a stored corpus. Two versions of the same
LINQ expression are shown, one using a declarative SQL-like syntax, and
the second using the object-oriented style we adopt for more
The program first
performs a Join to "look up" the static rank of each document
contained in a scoreTriples tuple and then computes a new rank
for that tuple, combining the query-dependent score with the static
score inside the constructor for
QueryScoreDocIDTriple. The program next groups the resulting
tuples by query, and outputs the top-ranked results for each query. The full example program
is included in .
// SQL-style syntax to join two input sets:
// scoreTriples and staticRank
var adjustedScoreTriples =
from d in scoreTriples
join r in staticRank on d.docID equals r.key
select new QueryScoreDocIDTriple(d, r);
var rankedQueries =
from s in adjustedScoreTriples
group s by s.query into g
// Object-oriented syntax for the above join
var adjustedScoreTriples =
d => d.docID, r => r.key,
(d, r) => new QueryScoreDocIDTriple(d, r));
var groupedQueries =
adjustedScoreTriples.GroupBy(s => s.query);
var rankedQueries =
g => TakeTopQueryResults(g));
Figure 3: A program fragment
illustrating two ways of expressing the same operation. The
first uses LINQ's declarative syntax,
and the second uses object-oriented interfaces. Statements such
as r => r.key use C#'s syntax for anonymous lambda expressions.
The second, object-oriented, version of the example illustrates LINQ's
use of C#'s lambda expressions. The Join method, for example, takes
as arguments a dataset to perform the Join against (in this case
staticRank) and three functions. The first two functions
describe how to determine the keys that should be used in the Join.
The third function describes the Join function itself.
Note that the compiler performs static type inference to determine the
concrete types of var objects and anonymous lambda expressions
so the programmer need not remember (or even know) the type signatures
of many subexpressions or helper functions.
DryadLINQpreserves the LINQ programming model and extends it to
data-parallel programming by defining a small set of new operators and
The DryadLINQdata model is a distributed implementation of LINQ collections. Datasets may still contain arbitrary .NET
types, but each DryadLINQdataset is in
general distributed across the computers of a cluster, partitioned
into disjoint pieces as shown in Figure 4. The
partitioning strategies used-hash-partitioning, range-partitioning,
and round-robin-are familiar from parallel
databases . This dataset partitioning is
managed transparently by the system unless the programmer explicitly
overrides the optimizer's choices.
Figure 4: The DryadLINQ data model:
strongly-typed collections of .NET objects partitioned on a set of
The inputs and outputs of a DryadLINQcomputation are represented by
objects of type DryadTable<T>, which is a subtype of
IQueryable<T>. Subtypes of DryadTable<T> support
underlying storage providers that include distributed filesystems,
collections of NTFS files, and sets of SQL tables. DryadTable
objects may include metadata read from the file system describing
table properties such as schemas for the data items contained in the table, and partitioning schemes which the DryadLINQ
optimizer can use to generate more efficient executions. These
optimizations, along with issues such as data serialization and
compression, are discussed in Section 4.
The primary restriction imposed by the DryadLINQsystem to
allow distributed execution is that all the functions called in
DryadLINQexpressions must be side-effect free. Shared objects can
be referenced and read freely and will be automatically serialized
and distributed where necessary. However, if any shared object is
modified, the result of the computation is undefined. DryadLINQdoes
not currently check or enforce the absence of side-effects.
The inputs and outputs of a DryadLINQcomputation are specified using
the GetTable<T> and ToDryadTable<T> operators, e.g.:
var input = GetTable<LineRecord>("file://in.tbl");
var result = MainProgram(input, ...);
var output = ToDryadTable(result, "file://out.tbl");
Tables are referenced by URI strings that indicate the storage system
to use as well as the name of the partitioned dataset.
Variants of ToDryadTable can simultaneously invoke multiple
expressions and generate multiple output DryadTables in a single
distributed Dryad job. This feature (also encountered in parallel
databases such as Teradata)
can be used to
avoid recomputing or materializing common subexpressions.
DryadLINQoffers two data re-partitioning operators:
HashPartition<T,K> and RangePartition<T,K>.
operators are needed to enforce a partitioning on an output
dataset and they may also be used to override the optimizer's choice of
From a LINQ perspective, however, they are no-ops since they just
reorganize a collection without changing its contents.
The system allows the implementation of additional re-partitioning
operators, but we have found these two to be sufficient for a
wide class of applications.
The remaining new operators are Apply and Fork, which
can be thought of as an "escape-hatch" that a programmer can use
when a computation is needed that cannot be
expressed using any of LINQ's built-in operators.
Apply takes a function f and passes to it
an iterator over the entire input collection, allowing arbitrary
As a simple example, Apply can be used to perform
"windowed" computations on a sequence, where the ith
entry of the output sequence is a function on the range of input
values [i,i+d] for a fixed window of length d. The
applications of Apply are much more general than this and we
discuss them further in Section 7.
The Fork operator is very similar to
Apply except that it takes a single input and
generates multiple output datasets. This is useful as a performance
optimization to eliminate common subcomputations, e.g. to
implement a document parser that
outputs both plain text and a bibliographic entry to separate tables.
If the DryadLINQsystem has no further
information about f, Apply (or Fork) will cause all of the
computation to be serialized onto a single computer. More
often, however, the user supplies annotations on f that indicate
conditions under which Apply can be parallelized. The details
are too complex to be described in the space available, but
quite general "conditional homomorphism" is supported-this means
that the application can specify conditions on the partitioning of a
dataset under which Apply can be run independently on each
partition. DryadLINQwill automatically
re-partition the data to match the conditions if necessary.
DryadLINQallows programmers to specify annotations of various kinds.
These provide manual hints to guide optimizations that the system is unable to
perform automatically, while preserving the semantics of the program. As mentioned above, the Apply operator
makes use of annotations, supplied as simple C# attributes, to
indicate opportunities for parallelization. There are also Resource annotations to discriminate functions that require constant
storage from those whose storage grows along with
the input collection size-these are used by the
optimizer to determine buffering strategies and decide when to pipeline operators in the same
process. The programmer may also declare that a dataset has a
particular partitioning scheme if the
file system does not store sufficient metadata to determine this
The DryadLINQoptimizer produces good automatic execution plans for
most programs composed of standard LINQ operators, and annotations are
seldom needed unless an application uses complex Apply statements.
3.3 Building on DryadLINQ
Many programs can be directly written using the DryadLINQ
primitives. Nevertheless, we have begun to build libraries of common
subroutines for various application domains. The ease of defining and
maintaining such libraries using C#'s functions and interfaces
highlights the advantages of embedding data-parallel constructs within
a high-level language.
The MapReduce programming model from  can be compactly
stated as follows (eliding the precise type signatures for clarity):
public static MapReduce( // #returns set of Rs#
source, // #set of Ts#
mapper, // #function from T®Ms#
keySelector, // #function from M®K#
reducer // #function from (K,Ms)®Rs#
var mapped = source.SelectMany(mapper);
var groups = mapped.GroupBy(keySelector);
Section 4 discusses the execution plan that is
automatically generated for such a computation by the DryadLINQ
We built a general-purpose library for manipulating numerical data
to use as a platform for implementing
machine-learning algorithms, some of which are described in Section 5.
The applications are written as traditional
programs calling into library functions, and make no explicit
reference to the
distributed nature of the computation.
Several of these algorithms need to iterate over a data transformation
until convergence. In a traditional database this would require support for recursive expressions, which
are tricky to implement ; in DryadLINQit is trivial to use
a C# loop to express the iteration.
The companion technical
report  contains annotated source for some of these
4 System Implementation
This section describes the DryadLINQparallelizing compiler. We
focus on the generation, optimization, and execution of the
distributed execution plan, corresponding to step 3 in
Figure 2. The DryadLINQoptimizer is similar
in many respects to classical database
optimizers . It has a static component, which
generates an execution plan, and a dynamic component, which uses
Dryad policy plug-ins to optimize the graph at run time.
4.1 Execution Plan Graph
When it receives control, DryadLINQstarts by converting the raw LINQ
expression into an execution plan graph (EPG), where each node is an
operator and edges represent its inputs and outputs. The EPG is closely
related to a traditional database query plan, but we use the more
general terminology of execution plan to encompass computations that
are not easily formulated as "queries." The EPG is
a directed acyclic graph-the existence of common subexpressions and
operators like Fork means that EPGs
cannot always be described by trees. DryadLINQthen applies
term-rewriting optimizations on the EPG. The EPG is a
"skeleton" of the Dryad data-flow graph that will be executed, and
each EPG node is replicated at run time to generate a Dryad
"stage" (a collection of vertices running the same computation on
different partitions of a dataset).
The optimizer annotates the EPG with metadata properties. For edges, these include the .NET
type of the data and the compression scheme, if any, used after serialization. For
nodes, they include details of the partitioning scheme used, and
ordering information within each partition. The output of
a node, for example, might be a dataset that is hash-partitioned by a particular
key, and sorted according to that key within each partition; this
information can be used by subsequent OrderBy nodes to choose
an appropriate distributed sort algorithm as described below in
Section 4.2.3. The properties are seeded from the
LINQ expression tree and the input and output tables' metadata, and
propagated and updated during EPG rewriting.
Propagating these properties is substantially harder in the context of
DryadLINQthan for a traditional database. The difficulties stem
from the much richer data model and expression language. Consider one
of the simplest operations: input.Select(x => f(x)). If
f is a simple expression, e.g. x.name, then it is
straightforward for DryadLINQto determine which properties can be
propagated. However, for arbitrary
f it is in
general impossible to determine whether this transformation preserves
the partitioning properties of the input.
Fortunately, DryadLINQcan usually
infer properties in the programs our users write. Partition and
sort key properties are stored as expressions, and it is often
feasible to compare these for equality using a combination of static
typing, static analysis, and reflection. The system also
provides a simple mechanism that allows users to assert properties of
an expression when they cannot be determined automatically.
DryadLINQperforms both static and dynamic optimizations. The static
optimizations are currently greedy heuristics, although in the future we
may implement cost-based optimizations as used in traditional
databases. The dynamic optimizations are applied during Dryad job
execution, and consist in rewriting the job graph depending on
run-time data statistics.
Our optimizations are sound in that a failure to compute
properties simply results in an inefficient, though correct, execution
4.2.1 Static Optimizations
DryadLINQ's static optimizations are conditional graph rewriting rules
triggered by a predicate on EPG node properties.
Most of the static optimizations are focused on minimizing disk and
network I/O. The most important are:
- Multiple operators may be executed in a single
process. The pipelined processes are themselves LINQ
expressions and can be executed by an existing single-computer LINQ implementation.
- Removing redundancy:
- DryadLINQremoves unnecessary hash- or
- Eager Aggregation:
- Since re-partitioning datasets is
expensive, down-stream aggregations are moved in front of
partitioning operators where possible.
- I/O reduction:
- Where possible, DryadLINQuses Dryad's TCP-pipe
and in-memory FIFO channels instead of persisting temporary data to
files. The system by default compresses data before performing a
partitioning, to reduce network traffic. Users can manually override
compression settings to balance CPU usage with network load if the
optimizer makes a poor decision.
4.2.2 Dynamic Optimizations
DryadLINQmakes use of hooks in the Dryad API to dynamically mutate
the execution graph as information from the running job becomes
available. Aggregation gives a major opportunity for I/O reduction
since it can be optimized into a tree according to locality,
aggregating data first at the computer level, next at the rack level, and
finally at the cluster level. The topology of such an aggregation
tree can only be computed at run time, since it is dependent on the
dynamic scheduling decisions which allocate vertices to computers.
DryadLINQautomatically uses the dynamic-aggregation logic present in
Dynamic data partitioning sets the number of vertices in each stage
(i.e., the number of partitions of each dataset) at run time based on
the size of its input data. Traditional databases usually estimate
dataset sizes statically, but these estimates can be very inaccurate,
in the presence of correlated queries. DryadLINQsupports
dynamic hash and range partitions-for range partitions both the
number of partitions and the partitioning key ranges are determined at
run time by sampling the input dataset.
4.2.3 Optimizations for OrderBy
DryadLINQ's logic for sorting a dataset d illustrates many of the
static and dynamic optimizations available to the system.
Different strategies are adopted depending
on d's initial
partitioning and ordering.
Figure 5 shows the evolution of an OrderBy node
O in the most complex case, where d is not already
range-partitioned by the correct sort key, nor are its partitions
individually ordered by the key. First, the dataset
must be re-partitioned.
The DS stage performs
deterministic random sampling of the input dataset. The samples are
aggregated by a histogram vertex H, which determines the
partition keys as a function of data distribution (load-balancing the
computation in the next stage). The D vertices perform the
actual re-partitioning, based on the key ranges computed by H. Next,
a merge node M interleaves the inputs, and a S node
sorts them. M and S are pipelined in a single process,
and communicate using iterators. The number of partitions in the
DS+H+D stage is chosen at run time based on the number of
partitions in the preceding computation, and the number of partitions in the
M+S stage is chosen based on the volume of data to be sorted (transitions (2) and (3) in
Figure 5: Distributed
sort optimization described in Section 4.2.3.
Transformation (1) is static, while (2) and (3) are dynamic.
Figure 6: Execution plan for MapReduce,
described in Section 4.2.4. Step (1) is static, (2) and
(3) are dynamic based on the volume and location of the data in the
4.2.4 Execution Plan for MapReduce
This section analyzes the execution plan generated by DryadLINQfor the
MapReduce computation from Section 3.3. Here, we
examine only the case when the input to GroupBy is not ordered and
the reduce function is determined to be associative and commutative.
The automatically generated execution plan is shown in
Figure 6. The plan is statically transformed (1) into a
Map and a Reduce stage. The Map stage applies the SelectMany
operator (SM) and then sorts each partition (S),
performs a local GroupBy (G) and finally a local reduction
(R). The D nodes perform a hash-partition. All these
operations are pipelined together in a single process. The Reduce
stage first merge-sorts all the incoming data streams (MS).
This is followed by another GroupBy (G) and the final
reduction (R). All these Reduce stage operators are pipelined
in a single process along with the subsequent operation in the
computation (X). As with the sort plan in
Section 4.2.3, at run time (2) the number of Map
instances is automatically determined using the number of input
partitions, and the number of Reduce instances is chosen based on the total volume of data to be Reduced. If necessary, DryadLINQwill insert a dynamic aggregation
tree (3) to reduce the amount of data that crosses the network. In
the figure, for example, the two rightmost input partitions were
processed on the same computer, and their
outputs have been
pre-aggregated locally before being transferred across the network and
combined with the output of the leftmost partition.
The resulting execution plan is very similar to the manually
constructed plans reported for Google's MapReduce  and
the Dryad histogram computation in . The crucial point to
note is that in DryadLINQMapReduce is not a primitive, hard-wired
operation, and all user-specified computations gain the
benefits of these same powerful automatic optimization strategies.
4.3 Code Generation
The EPG is used to derive the Dryad execution
plan after the static optimization phase. While the EPG encodes all the required information, it is not a
DryadLINQuses dynamic code generation
to automatically synthesize LINQ code to be run at the Dryad vertices. The
generated code is compiled into a .NET assembly that is shipped to
cluster computers at execution time. For each execution-plan stage, the assembly contains two pieces
The subexpression in a vertex is built from pieces of the overall EPG
passed in to DryadLINQ. The EPG is created in the original client
computer's execution context, and may depend on this context
in two ways:
- The code for the LINQ subexpression executed by each node.
- Serialization code for the channel data. This code is much
more efficient than the standard .NET serialization methods since it
can rely on the contract between the reader and writer of a channel
to access the same statically known datatype.
- The expression may reference variables in the local
context. These references are eliminated by partial evaluation of
the subexpression at code-generation time. For primitive values, the references in the
expressions are replaced with the actual values. Object values are
serialized to a resource file which is shipped to computers in
the cluster at execution time.
- The expression may reference .NET libraries. .NET
reflection is used
to find the transitive closure of all non-system
libraries referenced by the executable, and these are shipped to the
cluster computers at execution time.
4.4 Leveraging Other LINQ Providers
One of the greatest benefits of using the LINQ framework is that
DryadLINQcan leverage other systems that use the same
constructs. DryadLINQcurrently gains most from the use of PLINQ ,
which allows us to run the code within each vertex in parallel on a multi-core server.
DryadLINQ, attempts to make the process of parallelizing a LINQ
program as transparent as possible, though the systems'
implementation strategies are quite different. Space does not permit
a detailed explanation, but PLINQ employs the iterator
model  since it is better
suited to fine-grain concurrency in a shared-memory multi-processor system.
Because both PLINQ and DryadLINQuse expressions composed from the
same LINQ constructs, it is straightforward to combine their functionality.
DryadLINQ's vertices execute LINQ expressions, and in
general the addition by the DryadLINQcode generator of a single line to
the vertex's program triggers the use of
PLINQ, allowing the vertex to exploit all the cores
in a cluster computer. We note that this remarkable fact stems
directly from the careful design choices that underpin LINQ.
We have also added interoperation with the LINQ-to-SQL system which lets
DryadLINQvertices directly access data stored in SQL databases. Running a database on each cluster computer and
storing tables partitioned across these databases may be much more
efficient than using flat disk files for some applications. DryadLINQ
can use "partitioned" SQL tables as input and output.
DryadLINQalso identifies and ships some subexpressions to
the SQL databases for more efficient execution.
Finally, the default single-computer
LINQ-to-Objects implementation allows us to run DryadLINQprograms on
a single computer for testing on small inputs under the control of the
Visual Studio debugger before executing on a full cluster dataset.
Debugging a distributed application is a notoriously difficult
problem. Most DryadLINQjobs are long running, processing
massive datasets on large clusters, which could make the debugging
process even more challenging. Perhaps surprisingly, we have not found
debugging the correctness of programs to be a major challenge when
Several users have commented that LINQ's strong typing and narrow
interface have turned up many bugs before a program is even executed.
Also, as mentioned in Section 4.4, DryadLINQsupports a
straightforward mechanism to run applications on a single computer,
with very sophisticated support from the .NET development environment.
Once an application is running on the cluster, an individual vertex
may fail due to unusual input data that manifests problems not
apparent from a single-computer test. A consequence of Dryad's
deterministic-replay execution model, however, is that it is
straightforward to re-execute such a vertex in isolation with the
inputs that caused the failure, and the system includes scripts to ship the
vertex executable, along with the problematic partitions, to a local computer for
analysis and debugging.
Performance debugging is a much more challenging problem in DryadLINQ
today. Programs report summary information about their overall
progress, but if particular stages of the computation run more slowly
than expected, or their running time shows surprisingly high variance,
it is necessary to investigate a collection of disparate logs
to diagnose the issue manually. The centralized nature of the Dryad job manager
makes it straightforward to collect profiling information to ease this
task, and simplifying the analysis of these logs is an active area of our current research.
5 Experimental Evaluation
We have evaluated DryadLINQon a set of applications drawn from
domains including web-graph analysis, large-scale log mining, and
machine learning. All of our performance results are reported for a
medium-sized private cluster described in Section 5.1.
Dryad has been in continuous operation for several years on production
clusters made up of thousands of computers so we are confident in the
scaling properties of the underlying execution engine, and we have
run large-scale DryadLINQprograms on those production clusters.
5.1 Hardware Configuration
The experiments described in this paper were run on a cluster of
240 computers. Each of these computers was running the Windows Server
2003 64-bit operating system. The computers' principal components
were two dual-core AMD Opteron 2218 HE CPUs with a clock speed of 2.6 GHz, 16 GBytes of DDR2 random access memory, and four 750 GByte
SATA hard drives. The computers had two partitions
on each disk. The first, small, partition was occupied by the
operating system on one disk and left empty on the remaining disks.
The remaining partitions on each drive were striped together to form a large data
volume spanning all four disks. The computers were each connected to a
Linksys SRW2048 48-port full-crossbar GBit
Ethernet local switch via GBit Ethernet. There were between 29 and
31 computers connected to each local switch. Each local switch was in
turn connected to a central Linksys SRW2048 switch, via
6 ports aggregated using 802.3ad link aggregation. This gave each
local switch up to 6 GBits per second of full duplex connectivity.
Note that the switches are commodity parts purchased
for under $1000 each.
In this experiment we evaluate DryadLINQusing the Terasort
benchmark . The task is to sort 10 billion 100-Byte
records using case-insensitive string
comparison on a 10-Byte key. We use the data generator described in
. The DryadLINQ program simply defines the record
type, creates a DryadTable for the partitioned
inputs, and calls OrderBy; the system then automatically
generates an execution plan using dynamic range-partitioning
as described in Section 4.2.3 (though for the
purposes of running a controlled experiment
we manually set the number of partitions for the sorting stage).
For this experiment, each computer in the cluster stored a partition
of size around 3.87 GBytes (4,166,666,600 Bytes). We varied the number of computers used, so
for an execution using n computers, the total data sorted is
3.87n GBytes. On the largest run n=240 and we sort 1012 Bytes of data.
The most time-consuming phase of this experiment is the network read
to range-partition the data. However, this is overlapped with the
sort, which processes inputs in batches in parallel and generates the output
by merge-sorting the sorted batches. DryadLINQautomatically compresses the data before
it is transferred across the network-when sorting 1012 Bytes of data,
150 GBytes of compressed data were transferred across the
Table 1: Time in seconds to sort different amounts of data. The total
data sorted by an n-machine experiment is around 3.87n GBytes,
or 1012 Bytes when n=240.
Table 1 shows the elapsed times in seconds as the
number of machines increases from 1 to 240, and thus the data sorted
increases from 3.87 GBytes to 1012 Bytes. On repeated runs the times were consistent to within 5% of their
averages. Figure 7
shows the same information in graphical form.
For the case of a single partition, DryadLINQ
uses a very different execution plan, skipping the sampling and partitioning stages. It thus reads the input data only
once, and does not perform any network transfers. The single-partition
time is therefore the baseline time for reading a partition, sorting
it, and writing the output.
For 2 £ n £ 20 all computers
were connected to the same local switch, and the elapsed time stays
When n > 20 the elapsed time seems to be approaching
an asymptote as we increase the number of computers. We interpret this
to mean that the cluster is well-provisioned: we do not saturate the
core network even when performing a dataset repartitioning
across all computers in the cluster.
|Computers ||1 ||2 ||10 ||20 ||40 ||80 ||240|
|Time ||119 ||241 ||242 ||245 ||271 ||294 ||319|
Figure 7: Sorting increasing amounts of
data while keeping the volume of data per computer fixed. The total
data sorted by an n-machine experiment is around 3.87n GBytes,
or 1012 Bytes when n=240.
For this experiment we implemented the most time-consuming query (Q18)
from the Sloan Digital Sky Survey database .
The query identifies a "gravitational lens" effect by comparing the
locations and colors of stars in a large astronomical table, using a three-way Join over two input tables containing
11.8 GBytes and 41.8 GBytes of data, respectively.
In this experiment, we compare the performance of the
two-pass variant of the Dryad program described in  with
that of DryadLINQ.
The Dryad program is around 1000 lines of C++ code whereas the
corresponding DryadLINQprogram is only around 100 lines of C#. The
input tables were manually range-partitioned into 40 partitions using
the same keys. We varied n, the number of computers used,
to investigate the scaling performance. For a given n we ensured that
the tables were distributed such that each computer had approximately
40/n partitions of each, and that for a given partition key-range
the data from the two tables was stored on the same computer.
Table 2: Time in seconds to process skyserver Q18
using different number of computers.
Table 2 shows the elapsed times in seconds for the
native Dryad and DryadLINQprograms as we varied n between 1 to 40.
On repeated runs the times were consistent to within 3.5% of their
The DryadLINQimplementation is around 1.3 times slower than the native
Dryad job. We believe the slowdown is mainly due to a hand-tuned
sort strategy used by the Dryad program, which is somewhat faster than DryadLINQ's automatic
parallel sort implementation.
However, the DryadLINQprogram is written at a much higher level. It abstracts much of the distributed nature of the
computation from the programmer, and is only 10% of the length of the
Figure 8 graphs the inverse of
the running times, normalized to show the speed-up factor relative to the
two-pass single-computer Dryad version. For n £ 20 all computers
were connected to the same local switch, and the speedup factor is
approximately proportional to the number of computers used. When n=40 the computers must communicate
through the core switch and the scaling becomes sublinear.

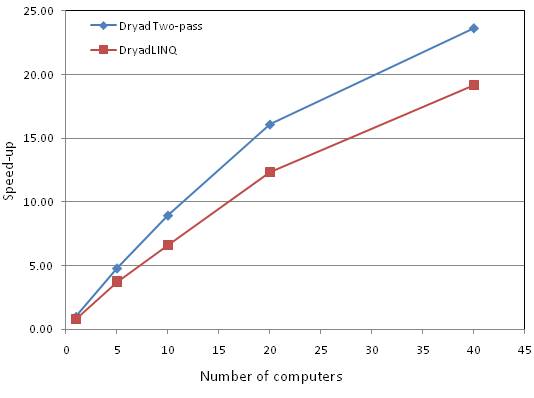

Figure 8: The speed-up of the
Skyserver Q18 computation as the number of computers is varied. The baseline is relative
to DryadLINQjob running on a single computer and times are given in
We also evaluate the performance of DryadLINQ at performing PageRank
calculations on a large web graph. PageRank is a conceptually simple
iterative computation for
scoring hyperlinked pages. Each page starts with a real-valued score.
At each iteration every page distributes its score across its outgoing links
and updates its score to the sum of values received from pages linking to
it. Each iteration of PageRank is a fairly simple relational query. We
first Join the set of links with the set of ranks, using the source as
the key. This results in a set of scores, one for each link, that we
can accumulate using a GroupBy-Sum with the link's destinations as
keys. We compare two implementations: an initial "naive" attempt and
an optimized version.
Our first DryadLINQ implementation follows the outline above, except
that the links are already grouped by source (this is how the crawler
retrieves them). This makes the Join less complicated-once per page
rather than once per link-but requires that we follow it with a
SelectMany, to produce the list of scores to aggregate. This naive
implementation takes 93 lines of code, including 35 lines to
define the input types.
The naive approach scales well, but suffers from reshuffling data
proportional to the number of links to aggregate the transmitted
scores. We improve on it by first HashPartitioning the link data by a
hash of the hostname of the source, rather than a hash of the page
name. The result is that most of the rank updates are written back
locally-80%-90% of web links are host-local-and do not touch
the network. It is also possible to cull leaf pages from the graph
(and links to them); they do not contribute to the iterative
computation, and needn't be kept in the inner loop. Further
performance optimizations, like pre-grouping the web pages by host (+7 LOC), rewriting each of these host groups with dense local names (+21
LOC), and pre-aggregating the ranks from each host (+18 LOC) simplify
the computation further and ease the memory footprint. The complete
source code for our implementation of PageRank is contained in
the companion technical report .
We evaluate both of these implementations (running on 240 computers) on a large web graph
containing 954M pages and 16.5B links, occupying 1.2 TB compressed on
disk. The naive implementation, including pre-aggregation, executes
10 iterations in 12,792 seconds. The optimized version, which further
compresses the graph down to 116 GBytes, executes 10 iterations in 690
It is natural to compare our PageRank implementation with similar
implementations using other platforms. MapReduce, Hadoop, and Pig all
use the MapReduce computational framework, which has trouble efficiently implementing
Join due to its requirement that all input (including the web graph
itself) be output of the previous stage. By comparison, DryadLINQ can partition the web graph once, and reuse that graph in multiple stages without moving any data across the network. It is important to note that
the Pig language masks the complexity of Joins, but they are still
executed as MapReduce computations, thus incurring the cost of additional data movement. SQL-style queries can
permit Joins, but suffer from their rigid data types, preventing the
pre-grouping of links by host and even by page.
5.5 Large-Scale Machine Learning
We ran two machine-learning experiments to investigate DryadLINQ's
performance on iterative numerical algorithms.
The first experiment is a clustering algorithm for detecting botnets.
We analyze around 2.1 GBytes of data, where each datum is a three-dimensional
vector summarizing salient features of a single computer, and group
them into 3 clusters. The algorithm was written using the
machine-learning framework described in Section 3.3 in
160 lines of C#. The computation has three stages: (1) parsing and
re-partitioning the data across all the computers in the cluster; (2)
counting the records; and (3) performing an iterative E-M
computation. We always perform 10 iterations (ignoring the
convergence criterion) grouped into two blocks of 5 iterations,
materializing the results every 5 iterations. Some stages
are CPU-bound (performing matrix algebra), while other are I/O bound.
The job spawns
about 10,000 processes across the 240 computers, and completes end-to-end in 7 minutes and 11
seconds, using about 5 hours of effective CPU time.
We also used DryadLINQto apply statistical inference
algorithms  to automatically discover
network-wide relationships between hosts and services on a medium-size
network (514 hosts). For each network host the algorithms compose
a dependency graph by analyzing timings between input/output packets.
The input is processed header data from a trace of 11 billion packets
(180 GBytes packed using a custom compression format into 40 GBytes).
The main body of this DryadLINQprogram is just seven lines of code.
It hash-partitions the data using the pair (host,hour)
as a key, applies a doubly-nested E-M algorithm
and hypothesis testing
(which takes 95% of the running time),
partitions again by hour, and finally builds graphs
for all 174,588 active host hours.
The computation takes
4 hours and 22 minutes, and more than 10 days of effective CPU
6 Related Work
DryadLINQbuilds on decades of previous work in distributed computation. The most
obvious connections are with parallel databases, grid and cluster
computing, parallel and high-performance computation, and declarative
Many of the salient features of DryadLINQstem from the high-level
system architecture. In our model of cluster computing the three
layers of storage, execution, and application are
decoupled. The system can make use of a variety of storage layers, from raw disk files to
distributed filesystems and even structured databases. The Dryad
distributed execution environment provides generic distributed
execution services for acyclic networks of processes.
DryadLINQsupplies the application layer.
6.1 Parallel Databases
Many of the core ideas employed by DryadLINQ(such as shared-nothing
architecture, horizontal data partitioning, dynamic repartitioning,
parallel query evaluation, and dataflow scheduling), can be traced to
early research projects in parallel
databases , such as Gamma ,
Bubba , and Volcano , and found in
commercial products for data warehousing such as
IBM DB2 Parallel Edition , and Tandem SQL/MP .
Although DryadLINQbuilds on many of these ideas, it is not a
traditional database. For example, DryadLINQprovides a
generalization of the concept of query language, but it does not
provide a data definition language (DDL) or a data management language
(DML) and it does not provide support for in-place table updates or transaction processing. We
argue that the DDL and DML belong to the storage layer, so they should
not be a first-class part of the application layer. However, as
Section 4.2 explains, the DryadLINQoptimizer does
make use of partitioning and typing information available as metadata
attached to input datasets, and will write such metadata back to an
appropriately configured storage layer.
Traditional databases offer extensibility beyond the simple relational data
model through embedded languages and stored procedures. DryadLINQ
(following LINQ's design) turns this relationship around, and
embeds the expression language in the high-level programming language. This allows DryadLINQto provide very rich native datatype
support: almost all native .NET types can be manipulated as typed,
In order to enable parallel expression execution, DryadLINQemploys many
traditional parallelization and query optimization techniques,
centered on horizontal data partitioning. As mentioned in the
Introduction, the expression
plan generated by DryadLINQis virtualized.
This virtualization underlies DryadLINQ's dynamic optimization
techniques, which have not previously been reported in the literature .
6.2 Large Scale Data-Parallel Computation Infrastructure
The last decade has seen a flurry of activity in
architectures for processing very large datasets (as opposed to traditional
high-performance computing which is typically CPU-bound). One of the earliest commercial generic
platforms for distributed computation was the Teoma Neptune
platform , which introduced a map-reduce computation
paradigm inspired by MPI's Reduce operator. The Google MapReduce
framework  slightly extended the computation model,
separated the execution layer from storage, and
virtualized the execution. The Hadoop open-source port of MapReduce uses the
same architecture. NetSolve  proposed a grid-based
architecture for a generic execution layer.
DryadLINQhas a richer set of
operators and better language support than any of these other proposals.
At the storage layer a variety of very large scale simple databases
have appeared, including Google's BigTable , Amazon's Simple
and Microsoft SQL Server Data Services.
Architecturally, DryadLINQis just an application running on top of
Dryad and generating distributed Dryad jobs. We can envision making
it interoperate with any of these storage layers.
6.3 Declarative Programming Languages
Notable research projects in parallel declarative languages
include Parallel Haskell ,
Cilk , and NESL .
There has also been a recent surge of activity on layering distributed
and declarative programming language on top of distributed computation
platforms. For example, Sawzall  is compiled to
MapReduce applications, while Pig  programs are
compiled to the Hadoop infrastructure. The MapReduce model is extended
to support Joins in . Other examples include
Pipelets , HIVE (an internal Facebook language
built on Hadoop), and Scope , Nebula , and PSQL (internal
Microsoft languages built on Dryad).
Grid computing usually provides workflows (and not a programming
language interface), which can be tied together by a user-level
application. Examples include Swift  and its
scripting language, Taverna , and
Triana . DryadLINQis a higher-level
language, which better conceals the underlying execution fabric.
7 Discussion and Conclusions
DryadLINQhas been in use by a small community of developers for over
a year, resulting in tens of large applications and many more small
programs. The system was recently released more widely within
Microsoft and our experience with it is rapidly growing as a
result-and feedback from users has generally been very positive. It
is perhaps of particular interest that most of our users manage small
private clusters of, at most, tens of computers, and still find
substantial benefits from DryadLINQ.
Of course DryadLINQis not appropriate for all distributed
applications, and this lack of generality arises from design choices
in both Dryad and LINQ.
The Dryad execution engine was engineered for batch applications on
large datasets. There is an overhead of at least a few seconds when
executing a DryadLINQEPG which means that DryadLINQwould not
currently be well suited to, for example, low-latency distributed
database lookups. While one could imagine re-engineering Dryad to
mitigate some of this latency, an effective solution would probably
need to adopt different strategies for, at least, resource
virtualization, fault-tolerance, and code generation and so would look
quite different to our current system.
The question of which applications are suitable for parallelization by
DryadLINQis more subtle. In our experience, the main requirement is
that the program can be written using LINQ constructs:
users generally then find it straightforward to adapt it to
distributed execution using DryadLINQ-and in fact frequently no
adaptation is necessary. However, a certain change in outlook may be
required to identify the data-parallel components of an algorithm and
express them using LINQ operators. For example, the PageRank
computation described in Section 5 uses a
Join operation to implement a subroutine typically specified as matrix
Dryad and DryadLINQare also inherently specialized for streaming
computations, and thus may appear very inefficient for algorithms
which are naturally expressed using random-accesses. In fact for
several workloads including breadth-first traversal of large graphs we
have found DryadLINQoutperforms specialized random-access
infrastructures. This is because the current performance
characteristics of hard disk drives ensures that sequential streaming
is faster than small random-access reads even when greater than 99%
of the streamed data is discarded. Of course there will be other
workloads where DryadLINQis much less efficient, and as more storage
moves from spinning disks to solid-state (e.g. flash memory) the
advantages of streaming-only systems such as Dryad and MapReduce will
We have learned a lot from our users' experience of the Apply
operator. Many DryadLINQbeginners find it easier to write custom
code inside Apply than to determine the equivalent native LINQ
expression. Apply is therefore helpful since it lowers the
barrier to entry to use the system. However, the use of Apply
"pollutes" the relational nature of LINQ and can reduce the system's
ability to make high-level program transformations. This tradeoff
between purity and ease of use is familiar in language design. As
system builders we have found one of the most useful properties of
Apply is that sophisticated programmers can use it to
manually implement optimizations that DryadLINQdoes not perform
For example, the optimizer currently implements all reductions using partial
sorts and groupings as shown in Figure 6. In some
cases operations such as Count are much more efficiently implemented
using hash tables and accumulators, and several developers have independently used
Apply to achieve this performance improvement. Consequently we
plan to add additional reduction patterns to the set of automatic DryadLINQoptimizations.
This experience strengthens our
belief that it is useful to give users flexibility at the current stage
in the evolution of the system, and put up with the consequences when
they use that flexibility unwisely.
DryadLINQhas benefited tremendously from the design choices of LINQ and
Dryad. LINQ's extensibility, allowing the introduction of new execution
implementations and custom operators, is the key that allows us to achieve deep
integration of Dryad with LINQ-enabled programming
languages. LINQ's strong static typing is extremely valuable when
programming large-scale computations-it is much easier to debug
compilation errors in Visual Studio than run-time errors in the
execution model has turned out to be very amenable to
the static and dynamic optimizations we have envisioned, and
we have not had to modify any part of Dryad to support
In contrast, many of our optimizations would have
been difficult to express using a more limited computational
abstraction such as MapReduce.
Our current research focus is on gaining more understanding of what programs
are easy or hard to write with DryadLINQ, and refining the optimizer
to ensure it deals well with all common cases.
As discussed in
Section 4.5, performance debugging is currently not
well supported. We are working to improve the profiling and
analysis tools that we supply to programmers, but we are ultimately
in improving the system's ability to get good performance automatically.
We are also pursuing a variety of cluster-computing projects that are
enabled by DryadLINQ, including storage research tailored to the
workloads generated by DryadLINQapplications.
Our overall experience is that DryadLINQ, by combining the benefits
of LINQ-a high-level language and rich data structures-with
the power of Dryad's distributed execution model, proves to be an
amazingly simple, useful and elegant programming environment.
We would like to thank our user community for their invaluable feedback, and
particularly Frank McSherry for the implementation and evaluation of
PageRank. We also thank Butler Lampson, Dave DeWitt,
Chandu Thekkath, Andrew Birrell, Mike Schroeder, Moises Goldszmidt,
and Kannan Achan, as well as the OSDI review committee and our
shepherd Marvin Theimer, for many helpful comments and contributions to
The DryadLINQ project.
The LINQ project.
Baru, C. K., Fecteau, G., Goyal, A., Hsiao, H., Jhingran, A., Padmanabhan,
S., Copeland, G. P., and Wilson, W. G.
DB2 parallel edition.
IBM Systems Journal 34, 2, 1995.
Beck, M., Dongarra, J., and Plank, J. S.
NetSolve/D: A massively parallel grid execution system for scalable
data intensive collaboration.
In International Parallel and Distributed Processing Symposium
(IPDPS) , 2005.
Blelloch, G. E.
Programming parallel algorithms.
Communications of the ACM (CACM) 39, 3, 1996.
Blumofe, R. D., Joerg, C. F., Kuszmaul, B., Leiserson, C. E., Randall,
K. H., and Zhou, Y.
Cilk: An efficient multithreaded runtime system.
In ACM SIGPLAN Symposium on Principles and Practice of Parallel
Programming (PPoPP) , 1995.
Boral, H., Alexander, W., Clay, L., Copeland, G., Danforth, S., Franklin,
M., Hart, B., Smith, M., and Valduriez, P.
Prototyping Bubba, a highly parallel database system.
IEEE Trans. on Knowl. and Data Eng. 2, 1, 1990.
Carnahan, J., and DeCoste, D.
Pipelets: A framework for distributed computation.
In W4: Learning in Web Search , 2005.
Chaiken, R., Jenkins, B., Larson, P.-Å., Ramsey, B., Shakib, D.,
Weaver, S., and Zhou, J.
SCOPE: Easy and efficient parallel processing of massive data sets.
In International Conference of Very Large Data Bases (VLDB) ,
Chang, F., Dean, J., Ghemawat, S., Hsieh, W. C., Wallach, D. A., Burrows,
M., Chandra, T., Fikes, A., and Gruber, R. E.
BigTable: A distributed storage system for structured data.
In Symposium on Operating System Design and Implementation
(OSDI) , 2006.
chih Yang, H., Dasdan, A., Hsiao, R.-L., and Parker, D. S.
Map-reduce-merge: simplified relational data processing on large
In SIGMOD international conference on Management of data ,
Chu, L., Tang, H., Yang, T., and Shen, K.
Optimizing data aggregation for cluster-based internet services.
In Symposium on Principles and practice of parallel programming
(PPoPP) , 2003.
Cruanes, T., Dageville, B., and Ghosh, B.
Parallel SQL execution in Oracle 10g.
In ACM SIGMOD , 2004.
Dean, J., and Ghemawat, S.
MapReduce: Simplified data processing on large clusters.
In Proceedings of the 6th Symposium on Operating Systems Design
and Implementation (OSDI) , 2004.
Deshpande, A., Ives, Z., and Raman, V.
Adaptive query processing.
Foundations and Trends in Databases 1, 1, 2007.
DeWitt, D., Ghandeharizadeh, S., Schneider, D., Hsiao, H., Bricker, A.,
and Rasmussen, R.
The Gamma database machine project.
IEEE Transactions on Knowledge and Data Engineering 2, 1, 1990.
DeWitt, D., and Gray, J.
Parallel database systems: The future of high performance database
Communications of the ACM 36, 6, 1992.
A query language for data parallel programming.
In Proceedings of the 2007 workshop on Declarative aspects of
multicore programming , 2007.
Englert, S., Glasstone, R., and Hasan, W.
Parallelism and its price : A case study of nonstop SQL/MP.
In Sigmod Record , 1995.
Feng, L., Lu, H., Tay, Y. C., and Tung, A. K. H.
Buffer management in distributed database systems: A data mining
In International Conference on Extending Database Technology ,
1998, H.-J. Schek, F. Saltor, I. Ramos, and G. Alonso, Eds., vol. 1377 of
Lecture Notes in Computer Science.
Encapsulation of parallelism in the Volcano query processing
In SIGMOD International Conference on Management of data ,
Gray, J., Szalay, A., Thakar, A., Kunszt, P., Stoughton, C., Slutz, D.,
and Vandenberg, J.
Data mining the SDSS SkyServer database.
In Distributed Data and Structures 4: Records of the 4th
International Meeting , 2002.
Hasan, W., Florescu, D., and Valduriez, P.
Open issues in parallel query optimization.
SIGMOD Rec. 25, 3, 1996.
Hellerstein, J. M., Stonebraker, M., and Hamilton, J.
Architecture of a database system.
Foundations and Trends in Databases 1, 2, 2007.
Isard, M., Budiu, M., Yu, Y., Birrell, A., and Fetterly, D.
Dryad: Distributed data-parallel programs from sequential building
In Proceedings of European Conference on Computer Systems
(EuroSys) , 2007.
Kabra, N., and DeWitt, D. J.
Efficient mid-query re-optimization of sub-optimal query execution
In SIGMOD International Conference on Management of Data ,
The state of the art in distributed query processing.
ACM Comput. Surv. 32, 4, 2000.
Morvan, F., and Hameurlain, A.
Dynamic memory allocation strategies for parallel query execution.
In Symposium on Applied computing (SAC) , 2002.
Oinn, T., Greenwood, M., Addis, M., Ferris, J., Glover, K., Goble, C.,
Hull, D., Marvin, D., Li, P., Lord, P., Pocock, M. R., Senger, M., Wipat, A.,
and Wroe, C.
Taverna: Lessons in creating a workflow environment for the life
Concurrency and Computation: Practice and Experience 18, 10,
Olston, C., Reed, B., Srivastava, U., Kumar, R., and Tomkins, A.
Pig Latin: A not-so-foreign language for data processing.
In International Conference on Management of Data (Industrial
Track) (SIGMOD) , 2008.
Pike, R., Dorward, S., Griesemer, R., and Quinlan, S.
Interpreting the data: Parallel analysis with Sawzall.
Scientific Programming 13, 4, 2005.
Simma, A., Goldszmidt, M., MacCormick, J., Barham, P., Black, R., Isaacs,
R., and Mortier, R.
CT-NOR: representing and reasoning about events in continuous time.
In International Conference on Uncertainty in Artificial
Intelligence , 2008.
Stonebraker, M., Bear, C., Çetintemel, U., Cherniack, M., Ge, T.,
Hachem, N., Harizopoulos, S., Lifter, J., Rogers, J., and Zdonik, S.
One size fits all? Part 2: Benchmarking results.
In Conference on Innovative Data Systems Research (CIDR) ,
Stonebraker, M., Madden, S., Abadi, D. J., Harizopoulos, S., Hachem, N.,
and Helland, P.
The end of an architectural era (it's time for a complete rewrite).
In International Conference of Very Large Data Bases (VLDB) ,
Taylor, I., Shields, M., Wang, I., and Harrison, A.
Workflows for e-Science.
2007, ch. The Triana Workflow Environment: Architecture and
Applications, pp. 320-339.
Trinder, P., Loidl, H.-W., and Pointon, R.
Parallel and distributed Haskells.
Journal of Functional Programming 12, (4&5), 2002.
Yu, Y., Isard, M., Fetterly, D., Budiu, M., Erlingsson, Ú., Gunda,
P. K., Currey, J., McSherry, F., and Achan, K.
Some sample programs written in DryadLINQ.
Tech. Rep. MSR-TR-2008-74, Microsoft Research, 2008.
Zhao, Y., Hategan, M., Clifford, B., Foster, I., von Laszewski, G.,
Nefedova, V., Raicu, I., Stef-Praun, T., and Wilde, M.
Swift: Fast, reliable, loosely coupled parallel computation.
IEEE Congress on Services , 2007.
