A Platform for RFID Security and Privacy Administration
Melanie R. Rieback - Vrije Universiteit, Amsterdam
Georgi N. Gaydadjiev - Delft University of Technology
Bruno Crispo, Rutger F. H. Hofman, and Andrew S.
Tanenbaum - Vrije Universiteit, Amsterdam
Pp. 89-102 of the Proceedings of LISA '06: 20th Large Installation System Administration Conference
(Washington, DC: USENIX
Association, December 3-8, 2006).
This paper presents the design, implementation, and evaluation of
the RFID Guardian, the first-ever unified platform for RFID security
and privacy administration. The RFID Guardian resembles an ``RFID
firewall,'' that monitors and controls access to RFID tags by
combining a standard-issue RFID reader with unique RFID tag emulation
capabilities. Our system provides a platform for both automated and
coordinated usage of RFID security mechanisms, offering fine-grained
control over RFID-based auditing, key management, access control, and
authentication capabilities. We have prototyped the RFID Guardian
using off-the-shelf components, and our experience has shown that
active mobile devices are a valuable tool for managing the security of
RFID tags in a variety of applications, including protecting low-cost
tags that are unable to regulate their own usage.
More philosophically, RFID technology vividly illustrates the
difficulties of security administration in a world of increasingly
pervasive, decentralized, low-cost, and low-power computing. Our paper
thus also offers a glimpse of what system administration may be like
in the future, when laymen face the responsibility to manage systems
of tiny computers that they are barely aware of.
Radio Frequency Identification (RFID) tags are remotely-powered
computer chips that augment everyday objects with computing
capabilities. Corporate executives tout RFID technology as a
technological means to achieve cost savings, efficiency gains, and
unprecedented visibility into the supply chain. Scientific researchers
consider RFID technology as nothing short than an embodiment of the
paradigm shift towards low-cost ubiquitous computing. In both cases,
RFID tags will blur the boundaries between the online and physical
worlds, allowing individuals to manage hundreds of wirelessly
interconnected real-world objects, like dendrites in a global digital

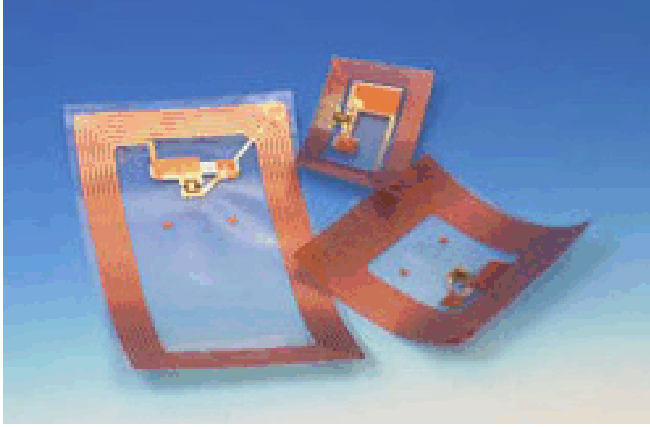

Figure 1: Philips I.Code RFID Tags.
RFID tags may be the size of a grain of rice (or smaller), and
have built-in logic (microcontroller or state machine), a coupling
element (analog front end with antenna), and memory (pre-masked or
EEPROM). Passive tags are powered entirely by their reading devices,
while active tags contain auxiliary batteries on board. Passive LF
tags (125-135 kHz) can be read up to 30 cm away, HF tags (13.56 MHz)
up to 1 m away, UHF tags (2.45 GHz) up to 7 m away, and active tags up
to 100 m away or more.
RFID Applications and Threats
RFID automation will bring an unfathomable barrage of new
applications, forever banishing wires, grocery store cashiers, credit
cards, and pocket change from our lives. RFID proponents extol its
professional uses for real-time asset management and supply chain
management. RFID-based access passes help to police residential,
commercial, and national borders; drivers have embraced RFID-based
retail systems like EZ-Pass, FastPass, IPass, PayPass, and SpeedPass.
RFID-based ``feel good'' personal applications are also proliferating,
from ``smart'' dishwashers, to interactive children's toys, to
domestic assistance facilities for the elderly. RFID tags identify
lost housepets, and even keep tabs on people; the data carriers have
assisted with surgeries, prevented the abduction of infants, and
tracked teenagers on their way to school. Subdermal Verichips are hip
accessories for patrons of several European nightclubs, and have been
less glamorously deployed for identifying deceased victims of
hurricane Katrina .
RFID technology thus races on at a pace that surpasses our ability
to control it. The same ease-of-use and pervasiveness that makes RFID
technology so revolutionary offers less-then-ethical characters
unprecedented opportunities for theft, covert tracking, and behavioral
profiling. Without the appropriate controls, attackers can perform
unauthorized tag reading and clandestine location tracking of people
or objects (by correlating RFID tag ``sightings''). Snooping is
possible by eavesdropping on tag/reader communications. Criminals can
also manipulate RFID-based systems (i.e., retail checkout systems) by
either cloning RFID tags, modifying existing tag data, or by
preventing RFID tags from being read in the first place.
Security and privacy researchers have proposed a wide array of
countermeasures against these threats. The simplest solution is
deactivating RFID tags; permanently (via ``frying'' , ``clipping''
, or ``killing'' ), or temporarily (using Faraday cages or
sleep/wake modes ). Cryptographers have created new low-power
algorithms for RFID tags, including stream ciphers , block ciphers
, public-key cryptographic primitives , and lightweight
protocols for authentication . Additionally, researchers have
developed access control mechanisms that are located either on tag
(hash locks  / pseudonyms ) or off (Blocker Tag , RFID
Enhancer Proxy ).
Despite this plethora of countermeasures, neither the threats nor
the fears facing RFID have dissipated. The countermeasures have become
somewhat of a band-aid that can be slapped onto RFID technology later.
Some companies view these results as a desirable way to quiet down the
privacy activists. Other companies in RFID standardization committees
are actively fighting against adding security into RFID
protocol design, because it will make their current commercial
offerings obsolete. People need a solution that they can physically
own and use, not one that relies upon the RFID companies to decide
when privacy will become important.
Another missing element is a means to coordinate the myriad of
incompatible countermeasures as they trickle onto the market in a
piecemeal fashion. Per-tag security policies combined with a lack of
automation will form a management nightmare for people, who cannot be
expected to know when or how to apply the appropriate countermeasures.
There is no unified framework; no systematic means to leverage
individual RFID countermeasures to achieve the most important goal of
all - the protection of real people.
Finally, RFID technology, much like the rest of ubiquitous
computing, foists system and security administration upon end users,
who are likely to be neither computer literate, nor interested. The
RFID Guardian thus provides a speculative look at what system
administration may look like in the decentralized, low-cost, and
pervasive future of computing.
RFID Guardian Design Goals
Over the past months, we have designed and prototyped the RFID
Guardian, a system that allows people to administer the security of
their RFID tags. The design of the RFID Guardian was driven by the
following goals, which follow from the nature of RFID applications and
Centralized use and management
Most existing RFID
countermeasures distribute their security policies across RFID tags,
which make them very hard to configure, manage, and use. To address
this concern, we designed a single platform to leverage RFID
countermeasures in a coordinated fashion. Personalized security
policies are centrally enforced by utilizing novel RFID security
features (auditing, automatic key management, tag-reader mediation,
off-tag authentication) together with existing ones (kill commands,
sleep/wake modes, on-tag cryptography).
Different countermeasures have strengths
and weaknesses in different application scenarios. Low-cost Electronic
Product Code (EPC) tags require different access control mechanisms
than expensive crypto-enabled contactless smart cards. Our system
maintains both RFID-related context (i.e., RFID tags present,
properties and security features, and their ownership status), as well
as personal context (i.e., the user is in a non-hostile environment).
Context is then used in conjunction with an Access Control List (ACL)
to decide how to best protect the RFID tags in question.
People do not want to fuss with an RFID
privacy device, so our system must be both physically and
operationally unobtrusive. We envision that our system will be
eventually integrated into a PDA or mobile phone, so users will not be
burdened with carrying an extra physical device. Accordingly, the RFID
Guardian uses an XScale processor and simple RFID HW (barely more
complex than RFID HW already found in Nokia mobile phones). Also,
system operation was designed to be non-interactive for default
situations, and offers a user interface for the special cases that
require on-site configuration.
It is essential that the RFID
Guardian work with actual deployed RFID systems. We chose a single
standard as a proof-of-concept, to prove the technical feasibility our
ideas. Our RFID Guardian implementation supports 13.56 MHz (HF) RFID,
and is compatible with the ISO-15693  standard. This frequency and
standard is used in a wide array of RFID applications, due to the
availability of relatively inexpensive commodity HW. The ideas in this
paper can also be extended to other standards or frequencies, given
some extra engineering effort.
The remainder of this paper is organized as follows. The next
section describes the RFID Guardian's high-level functionality; we
then provide implementation details for our RFID Guardian prototype. A
real-life case study, illustrating the operation of Selective RFID
Jamming follows. Subsequently, performance results are reported
followed by a discussion of potential attacks. We then review some
related work and conclude.
The RFID Guardian (first introduced in ) is a portable
battery-powered device that mediates interactions between RFID readers
and RFID tags. The RFID Guardian leverages an on-board RFID reader
combined with novel tag emulation capabilities to audit and control
RFID activity, thus enforcing conformance to a centralized security
The vast majority of RFID readers will not explicitly interact
with the RFID Guardian. Eavesdropping and clever tag emulation tactics
are necessary to glean information from these readers. However, a
small group of RFID readers will have special back-end SW installed,
that provides them with an ``awareness'' of the Guardian.[Note 1]
These RFID readers tend to be in familiar locations (i.e., at home, at
the office), and they are intentionally granted more generous access
permissions. These RFID readers may explicitly cooperate with the
Guardian, sending data containing authentication messages, context
updates, or secret keys.
The rest of this section describes the design of the RFID
Guardian, focusing on four fundamental issues: (i) auditing, (ii) key
management, (iii) access control, and (iv) authentication.
The RFID Guardian monitors RFID scans and tags in its vicinity,
serving as a barometer of (unauthorized) RFID activity. RFID auditing
is a prerequisite for the enforcement of RFID security policies, plus
it furnishes individuals with both the awareness and proof needed to
take legal recourse against perpetrators of RFID abuse.
Scan logging audits RFID scans in the vicinity, which are either
displayed (using an LCD or screen) or are logged for later retrieval.
Tag emulation decodes the RFID reader queries prior to logging the
64-bit UID (tag ID), an 8-bit command code, and annotations (like a
32-bit timestamp). Query data is logged by default, unless the flash
memory is almost full.
Audited RFID scans should be filtered to avoid overwhelming the
user with uninteresting information. For example, the RFID Guardian
might be configured to only log scans targeting tags ``owned'' by that
individual (see next section). Repeatedly polled queries (like
inventory queries, which ask tags in range to identify themselves)
will also generate a lot of noise, so it is best to have the SW
aggregate these queries (e.g., 1000x inventory query from time t1-t2).
The RFID Guardian tracks RFID tag ownership and alerts individuals
of newly appearing (possibly clandestine) tags. Ownership of RFID tags
can be transferred explicitly via the user interface or an
authenticated RFID channel (i.e., while purchasing tagged items at an
RFID-enabled checkout). Ownership of RFID tags can also be transferred
implicitly (i.e., when handing an RFID-tagged book to a friend.) The
RFID Guardian detects implicit tag acquisition by conducting periodic
RFID scans, and then correlating the tags that remain constant across
The frequency of RFID tag discovery is adjustable. Given that not
all implicit tag acquisitions are desirable, the frequency of
scanning/correlation/reporting presents a tradeoff between privacy,
accuracy, and battery life. Our opinion is that infrequent correlation
in a controlled environment is probably the most useful and least
error prone option (i.e., comparing RFID tags present at home at the
beginning and end of the day).
Modern RFID tags have a variety of security functionality, ranging
from tag deactivation commands, to password-protected memory, to
industrial-grade cryptography. These security features often require
the use of associated key values, which present logistical issues
because the keys must be acquired, stored, and available for use at
the appropriate times.
The RFID Guardian is well suited to manage RFID tag keys due to
its 2-way RFID communications abilities. Tag key transfer could occur
by eavesdropping on the RFID channel when a reader (for example, an
RFID tag ``deactivation station'') issues a query containing the
desired key information. Additionally, ``Guardian aware'' RFID readers
can transfer key information explicitly over a secure channel, or key
values can be manually entered via the user interface. The RFID
Guardian is also an appropriate medium for periodically regenerating
tag keys, re-encrypting tag data , and refreshing tag pseudonym
RFID technologists and privacy activists propose deactivating RFID
tags after sale as a means of protecting consumer privacy (and
corporate liability). However, if you consider that RFID tags
represent the future of computing technology, this proposal becomes as
absurd as permanently deactivating desktop PCs to reduce the incidence
of computer viruses and phishing. Perhaps RFID tags are in fact too
much like modern computers - their default behavior is to
indiscriminately transfer data to anyone with compatible equipment.
The hope is that modern security technologies like firewalls and
proxies can be adapted, to protect hapless RFID tags from themselves
via central monitoring and managing of the communications medium.
Coordination of Security Primitives
The RFID Guardian maintains a centralized security policy that
dictates which RFID readers have access to which RFID tags in which
situations. This security policy is implemented as an Access Control
List (ACL). The ACL resembles one used by a standard packet filter,
that allows or denies RFID traffic based upon the querying reader (if
known), the targeted tag(s), the attempted command, and the context
Permitted data types in the ACL are values (i.e., 123), text
strings (i.e., `at home,' `in a paranoid mood'), groupings (i.e.,
assigned groups of tags/readers/context/commands), and wildcards
(123*, *). The user configures the ACL, and constructs the groups via
the user interface.
Different situations call for different countermeasures. For
example, RFID tagged credit cards require less stringent security at
home than at the shopping mall. The RFID Guardian therefore offers
context awareness facilities that perceive an individual's situation
and then regulate tag access accordingly.
Well defined context like dates and times are easy to infer, but
are marginally useful for describing a person's situation, moods, or
desires. Alternately, more abstract context information can be
represented via ``context updates,'' which are arbitrary textual
strings that represent some facet of the user's situation. Context
updates could report anything. For example, an RFID reader at the
front door of a person's home might inform the RFID Guardian that it
is now leaving a protected area. Context updates are provided either
by user (via the user interface), or by authenticated ``Guardian
aware'' RFID readers.
The RFID Guardian acts as a mediator between RFID readers and RFID
tags. Just like a packet filter, the Guardian uses Selective RFID
Jamming  to enforce access control by controlling the
communications mediation. The RFID Guardian can therefore control
access for low-cost RFID tags that otherwise might not have any access
control primitives available to them.
The RFID Guardian's selective jamming scheme is currently
optimized for ISO-15693 tags, which use the Slotted Aloha
anticollision scheme (as opposed to EPCglobal's `tree-walking').
Selective RFID Jamming uses tag emulation to decode the incoming RFID
reader query, determines if the query is permitted (according to the
ACL), and then sends a short jamming signal that precisely blocks the
timeslot in which the ``protected'' RFID tag will give its response.
Figure 2: Selectively Jamming Tag #2.
There are 16 timeslots after an inventory query, so during the
first round of anticollision, the jamming has a 1 in 16 chance of
accidentally interfering any other RFID tag present. During each
subsequent round of anticollision, the reader issues another inventory
query with a slightly modified mask value, that targets a slightly
narrower range of RFID tags than before. Given enough rounds of
anticollision, the mask value will exclude the RFID tag(s) that are
being ``protected,'' allowing other tags in the vicinity to get their
responses heard by the RFID reader. This means that in practice, our
system has a negligible chance of blocking the incorrect RFID tag
responses. This makes the RFID Guardian's manner of selectively
jamming inventory queries far less-obtrusive than the Blocker Tag's
concept of ``privacy zones'' , which block entire ranges of tag
identifiers (regardless of who owns the tag.)
Some high-cost RFID tags can directly authenticate RFID readers,
but the majority of RFID tags cannot due to application constraints
(i.e., cost or power). The RFID Guardian thus authenticates ``Guardian
aware'' RFID readers on behalf of low-cost RFID tags, adapting the
subsequent access control decisions to reflect the permissions of the
newly-identified reader. Prior to authentication, the RFID Guardian
must also exchange authentication keys with RFID Readers, either ahead
of time or using on-the-fly means (ex. user interface, PKI).
After the successful authentication of a reader, the RFID Guardian
faces a practical problem: for noncryptographic RFID tags there is no
easy way to determine which RFID queries originate from which RFID
reader. The best solution would be for RFID standardization committees
to add space for authentication information to the RFID air interface.
However, until that happens, we are using our own imperfect solution:
in the last step of authentication an RFID reader announces which
queries it's going to perform, and these queries are noted as part of
an ``authenticated session'' when they occur.
The RFID Guardian prototype, shown in Figure 3, is meant to help
people solve their RFID privacy problems in a practical way.
Therefore, we have tested our system against commonly used RFID
equipment - the Philips MIFARE/I.Code Pagoda RFID Reader, with Philips
I.Code SLI (ISO-15693) RFID tags. This section will introduce the
hardware and software architecture that our prototype uses to monitor
and protect the RFID infrastructure.
Figure 3: RFID Guardian Prototype.
The RFID Guardian hardware architecture is presented in Figure 4.
Figure 4: RFID Guardian HW Architecture.
Our first salient design decision was to make the RFID Guardian a
full-fledged portable computer. We chose a ``beast'' of a
microcontroller - the Intel XScale PXA270 processor, with 64 megabytes
of SDRAM and 16 megabytes of Flash memory. We rationalized the use of
the XScale by the strict ISO-15693 timing constraints combined with
the computational load of authenticating RFID readers. (A later
section analyzes the extent to which the PXA270 is overkill.) Another
benefit of the XScale processor family is its wide deployment in
handheld devices, which eases eventual integration of the RFID
Guardian into PDAs and mobile phones.
Our prototype has a minimalist User Interface (UI) at the moment -
a serial RS-232 interface to the PC host, which contains an attached
keyboard and screen. While this is sufficient for our proof-of-concept,
we plan to add a more portable UI to the next version of the
RFID Guardian HW.
RF Design Overview
The analog part of our prototype consists of an ``RFID reader''
front end that uses an RFID reader-on-a-chip, and an ``RFID tag''
front end which required building our own custom tag emulation HW.
Our reader transmitter/receiver was implemented using an
ISO-15693 compliant RFID reader IC from Melexis (MLX90121)
together with a power stage, based on the application note AN90121_1
, that increases the operating range to 30 cm.
Our tag receiver is based on an SA605 IC from Philips. The
IC is intended for a single chip FM radio, but we used it to implement
a high sensitivity AM receiver. Because our receiver is battery
powered (as opposed to passively-powered RFID tags), it receives RFID
reader signals up to a half meter away.

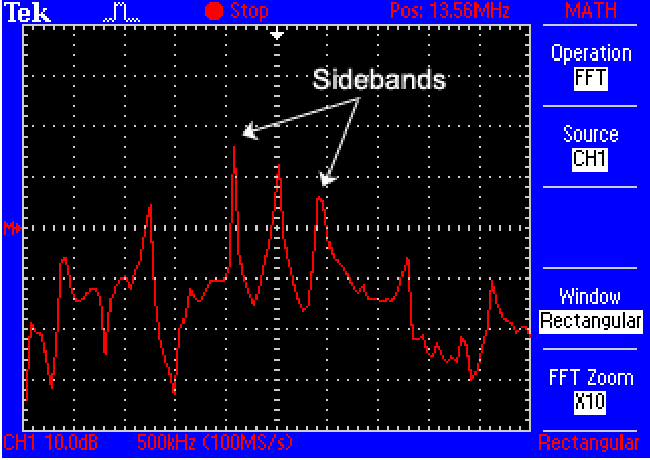

Our tag transmitter implements ``active'' tag spoofing
using an RF power stage and a dedicated digital part that generates
and mixes the required sideband frequencies, 13.56 MHz +/- 423 kHz. By
actively generating the sideband frequencies, we can transmit fake tag
responses up to a half meter.
We also use our tag transmitter as the basic HW primitive to
generate the RFID Guardian's randomized jamming signal. (This is
described further in the SW section.)
Tag Spoofing Demystified
RFID readers produce an electromagnetic field that powers up RFID
tags, and provides them with a reference signal (e.g., 13.56 MHz) that
they can use for internal timing purposes. Once an RFID tag decodes a
query from an RFID reader (using its internal circuitry), it encodes
its response by turning on and off a resistor in synchronization with
the reader's clock signal. This so-called ``load modulation'' of the
carrier signal results in two sidebands, which are tiny peaks of radio
energy, just higher and lower than the carrier frequency. Tag response
information is transmitted solely in these sidebands,[Note 2]
rather than in the carrier signal.
Figure 5 (from the RFID Handbook ) illustrates how these
sidebands look, in relation to the reader-generated carrier frequency.
The comparatively tiny sidebands have approximately 90 decibels less
power than the reader-generated carrier signal, and this is the reason
why RFID tag responses often have such a limited transmission range.
Figure 5: Normal RFID Tag Signal.
The secret to creating fake tag responses is to generate the two
sideband frequencies, and use them to send back properly-encoded
responses, that are synchronized with the RFID reader's clock signal.
The simplest way to generate these sidebands is to imitate an RFID
tag, by turning on and off a load resistor with the correct timing.
The disadvantage of this approach is that passive modulation of the
reader signal will saddle our fake tag response with identical range
limitations as real RFID tags (~10 cm for our test setup).
A superior alternative is to use battery power to generate the two
sideband frequencies. These super-powerful sidebands are detectable at
far greater distances, thus increasing the transmission range of our
fake tag response.
The RFID Guardian prototype utilizes the ``active'' tag spoofing
approach. Figure 6 shows the signal generated by our tag transmitter.
The spoofed ``sidebands'' are transmitted at a power-level roughly
equal to the reader's carrier signal. This has increased the range of
our fake tag responses - from 10 cm to a half meter away!
Figure 6: Spoofed RFID Tag Signal.
The RFID Guardian is like a watchdog; it sits with a cocked-ear,
waiting for danger to appear. It monitors real-world activity, from
unexpected RFID scans to clandestinely located tags, and reacts in
real-time lest these dangers remain undetected and undeterred.
The RFID Guardian's SW architecture reflects this event-driven
reality. Besides its real-time core, the Guardian's 12694 lines of
code provide device drivers (for our RFID HW), a protocol stack
(ISO-15693), data storage libraries, high-level system tasks, and
application libraries. The result is 254728 bytes of cross-compiled
functionality dedicated to RFID security and privacy protection.
The RFID Guardian presents a holistic system to users, but lurking
below the surface are time-critical SW routines that require central
coordination. The e-Cos Real-Time Operating System (RTOS) takes the
place of taskmaster; it ensures fast and reliable execution, while
simplifying developers' lives by handling threads, basic common
interrupt handling, and some device drivers (i.e., RS-232 driver). e-Cos
was selected primarily for its availability for the PXA270
microcontroller, but it also proved an excellent choice because it is
open-source, free of licensing costs, and has an active developer
A major portion of the RFID Guardian SW handles intermediate
processing steps; e.g., tag spoofing requires ISO-compliant frame
modulation and encoding, and scan logging requires a mechanism for
caching data in the Flash memory. This section will describe the low-and
medium-level libraries that support the main RFID Guardian
Device Drivers: Device drivers are the steering
software for the RFID Guardian's HW. Driver pairs control the RFID tag
device (tag transmitter/receiver), RFID reader device (reader
transmitter/receiver), and the jamming signal (random noise generated
by the tag transmitter). Device drivers can read/write bytes and RFID
markers (EOF, SOF, JAM), and they can also provide timing information.
eCos also conveniently provides device drivers for the RS-232 ``user
interface,'' which facilitates a connection to the user's keyboard and
Protocol Stack: Once the device drivers decode bytes
of raw RFID data, the RFID Guardian needs to make further sense out of
it; e.g., was it an RFID tag replying to an inventory query, or an
RFID reader attempting to read a data block? The ability to understand
RFID communications protocols is a prerequisite for making meaningful
high-level security decisions (e.g., was the reader's read command
authorized?) This is why the RFID Guardian contains an implementation
of Part 2 (device drivers) and Part 3 (Communications protocol) of the
Data Storage Once RFID communications have been
interpreted, the internal state of the RFID Guardian is updated by
modifying the contents of one or more data structures. Generally, this
data is stored in the volatile RAM, but ``permanent'' data structures
are cached into Flash when the processor is idle. The Journaling Flash
File System (v2) manages the RFID Guardian's Flash memory, providing
filesystem-style access, offline garbage collection, balanced erasing
of blocks, and crash resistance.
The data structures themselves collectively reflect the high-level
functionality of the RFID Guardian. Transient data structures include
the tag presence list, partially-open authentication list,
authenticated session list, context list, and timer activity list.
Permanent data structures may also include the RFID scan log, access
control list, reader authentication key list, tag ownership list, and
tag key list.
The RFID Guardian's high-level system tasks are little virtual
pieces of functionality that take turns controlling the behavior of
the system. Each task plays a different role: the tag task acts like a
virtual RFID tag, and the reader task like a commodity RFID reader.
The timer task is akin to a little alarm clock, that periodically goes
off and spurs other system components into action. The user input task
primarily relays input from the real-life user input devices to the
appropriate SW handler.
Each of these tasks uses a comparable software stack. A main loop
at the top level waits for activity on any device, and an interrupt
prompts the device driver to decode and store the frame(s). The task
then invokes the appropriate high-level application routines.
Timer Task The RFID Guardian needs to perform
activities at specific times, either periodically (i.e., polling to
populate the RFID tag presence list), or on a one-time basis (i.e.,
timing out a half-opened authentication attempt). The timer task is
responsible for keeping track of scheduled activities, and
multiplexing the XScale's high-resolution timer interrupts with the
corresponding actions that must occur at those times.
User Input Task: On rare occasions, users will want
to explicitly interact with the RFID Guardian. They may want to
configure the ACL, conduct an RFID scan, provide context data, or
execute some other kind of system command. The user input task
collects these commands from the cornucopia of available input
devices, (i.e., RS-232, keyboard/button/keypad/etc..), and reroutes
them to the system components responsible for the desired high-level
Tag Task: Tag emulation is one of the highlights of
the RFID Guardian, being frequently used to achieve the RFID
Guardian's high-level goals - RFID scan logging, authenticating RFID
readers, and spoofing one or several RFID tags. The tag task is the
entity responsible for coordinating the RFID Guardian's ``tag-like''
behavior. When activated by an interrupt from the tag receiver, the
task calls the device driver to demodulate and decode the incoming
RFID queries. This subsequently activates the aforementioned high-level
functionality, if needed.
Figure 7: `Tag'' Task Functionality.
Reader Task: The reader task, driven by SW requests
from the timer and UI, coordinates use of the Guardian's RFID reader-on-a-chip.
The task performs specified queries, (i.e., inventory,
read/write data), and interprets the tag responses. This is commonly
used for detecting (possibly covert) RFID tags, and activating on-tag
security mechanisms, if any.
Lots of high-level application functionality has been introduced
in this paper, but little has been said about the RFID Guardian's
interactions with ``Guardian aware'' RFID infrastructure (introduced
in the second section).
RFID Guardian-Reader communications use a meta-language that we
call Guardian Language (GL), which is encapsulated in standard ISO-compliant
`read/write multiple blocks' commands. GL uses an 8-bit
Distinctive Starting Block, an 8-bit GL Command and a varying amount of
Command Data. The theoretical length limit for command data is 8 kBytes,
although the practical limit is 128 bytes, which is the capacity of our I.Code
Here is how GL looks when encapsulated a `read multiple block' response:
Here is a non-exhaustive list of GL commands: Initiate Authentication,
Authentication Response, Key Update, Forward Query (proxy mode), Add Tag,
Remove Tag, Add Reader, Remove Reader, and Context Update. GL also features
non-standard configuration commands, that require some knowledge about the
RFID Guardian internal setup.
One caveat is that, because the RFID Guardian is emulating an RFID tag,
Guardian-Reader communications are constrained by master-slave interactions.
In other words, RFID readers must always initiate communications with the RFID
Guardian. Designers must keep this in mind when creating interaction patterns
for new RFID security and privacy functionality.
Case Study: Selective RFID Jamming
This section will provide a step-by-step demonstration of how Selective
RFID Jamming works.
For demonstration purposes, we have given the RFID Guardian a minimal tag
ownership list that contains only one tag (UID: 0xe0040100003b0cbd). A single
entry in an equally minimal ACL prescribes blocking all tags in the ownership
|. . .||. . .||. . .||. . .
|<ownership list>||*||*||* |
We now generate inventory queries with our Philips MIFARE/I.Code Pagoda
RFID Reader, which is driven from a Windows PC interface. Initially the RFID
Guardian is switched off, and the Philips Reader detects three tags in its
vicinity: the one tag that is in our ownership list, and two unknown tags
(UID: 0xe00401000 03b2252 and 0xe0040100003afab9). (See Figure 8 for a
8: Screenshot During Uninterrupted Query.
When the RFID Guardian is enabled, the Philips Reader's inventory queries
are immediately detected. These requests are decoded, and the RFID Guardian's
internal logic determines that the query should be blocked. The Guardian then
sends a short (ca. 350 µsec) jamming signal at timeslot 13 of the
inventory sequence, since that slot corresponds to the protected tag:
Only the two unprotected tags are recognized by the Philips reader now,
and the jamming caused a CRC error that is reported in the lower central pane
of the reader's user interface (see Figure 9).
Figure 9: Screenshot During Selective RFID
Debug output from the RFID Guardian illustrates the processing steps,
including the decision to jam at timeslot 13:
1 Request t_eof 76.877230 RFID_INVENTORY(
2 Inventory: t_eof 76.877230 s->SN 0 s->NbS 16
3 Inventory: t_eof 76.882010 s->SN 1 s->NbS 16
4 Inventory: t_eof 76.886791 s->SN 2 s->NbS 16
5 Inventory: t_eof 76.888304 s->SN 3 s->NbS 16
6 Inventory: t_eof 76.891568 s->SN 4 s->NbS 16
7 Inventory: t_eof 76.896340 s->SN 5 s->NbS 16
8 Inventory: t_eof 76.901120 s->SN 6 s->NbS 16
9 Inventory: t_eof 76.905893 s->SN 7 s->NbS 16
10 Inventory: t_eof 76.910673 s->SN 8 s->NbS 16
11 Inventory: t_eof 76.915446 s->SN 9 s->NbS 16
12 Inventory: t_eof 76.920225 s->SN 10 s->NbS 16
13 Inventory: t_eof 76.924999 s->SN 11 s->NbS 16
14 Inventory: t_eof 76.929778 s->SN 12 s->NbS 16
15 Inventory: t_eof 76.934552 s->SN 13 s->NbS 16
16 Inventory JAM t 76.934869 on s->SN 13 s->NbS 16
16a mask len 0 mask 0x0
17 Inventory: t_eof 76.939330 s->SN 14 s->NbS 16
18 Inventory: t_eof 76.944107 s->SN 15 s->NbS 16
Lines 1-1c report an Inventory request with a mask length 0, and flags
indicating a 16-slot inventory sequence. Lines 2 through 18 report End of
Frame (EOF) pulses that mark the start of a new timeslot.
(s->SN indicates the current slot number.) Line 16-16a
corresponds with timeslot 13, and it indicates the generation of a jamming
This section will analyze the performance of the RFID Guardian, under a
variety of resource constraints and attack modes.
The RFID Guardian enforces access control decisions on the behalf of RFID
tags, so real-time performance is required under both normal and hostile
conditions. After all, blocking a tag response after it has reached the
attacker is not very useful.
In the upper time-line of Figure 10 we show the timing constraints for an
inventory request-response sequence as specified by the ISO standard. Like
every other RFID message, the request is framed by a start-of-frame marker
(SOF) and an end-of-frame marker (EOF). Between these markers, an inventory
request carries between 40 (mask size is 0) and 104 (mask size is 64) data
bits. After receiving the request EOF, the tag must wait for 320.9 µsec
before starting its answer. This is the time the RFID Guardian has to
interpret reader requests and respond to them.
The lower time-line of Figure 10 shows the measured performance of the
RFID Guardian. After a complete frame is received (SOF, data, and EOF), it
needs 23 µsec to wake up the thread that monitors the receiver and parses
the request frame. Immediately before dispatching the response frame, another
5 µsec of overhead is spent in firing up the transmitter. In between
these two events, the RFID Guardian has 320.9 - (23 + 5) = 292.9 µsec to
consult its ACL (and supporting data structures) and decide whether or not to
block the RFID tag response.
Figure 10: Timing constraints.
How long this decision takes depends on how the RFID Guardian's ACL is
organized. To find a coarse upper bound on the ACL length that can be handled
by the Guardian prototype, we chose the slowest possible implementation for
the ACL: an unsorted array of UIDs that can only be traversed sequentially to
locate a specific UID. An RFID request addressed to the last item in the ACL
was sent to the Guardian, forcing it to traverse the entire list. With 2600
entries, the Guardian was able to respond in time.
The Guardian prototype is equipped with a powerful XScale processor at
high clock speed, 520 MHz. To find out if a Guardian with less processor power
would still be feasible, we varied the clock speed of the XScale. The results
are shown in Figure 11. The ACL length that the Guardian could still cope with
decreases with clock speed, but much less than linearly. This is attributed to
two causes: memory speed goes down more slowly and in coarser steps than CPU
speed; and parts of the device processing are independent of CPU speed. At 208
MHz, the Guardian prototype can process ACLs of length 1800, even with this
suboptimal ACL implementation.
11: Maximum ACL size that can be processed at a given CPU
Of course, with a hash table instead of a linear list, vast numbers of
ACLs can be searched in the available 292.9 µsec. In short, ACL length is
not likely to be a problem even on a very slow XScale.
Now let us consider how attackers will try to defeat the RFID Guardian.
They may use malicious readers or fake tags that try to confuse or lock up the
RFID Guardian, so that the tags it protects can be read anyway. The primary
defense against well-known exploits like buffer overruns must be very careful
programming of the RFID Guardian software, which is helped by its limited code
Failing that, their next attack is likely to be a DoS (Denial-of-Service)
attack to overload the RFID Guardian and prevent it from doing its job. Two
RFID Guardian resources are obvious candidates for attack: its limited radio
bandwidth and its limited memory. RFID communications always follow the
master-slave pattern, where the tag (slave) must respond after a well-defined
delay. Attacking during this delay is not feasible: it would immediately alert
the RFID Guardian and it would confuse the tags as well. Attacking between
reader commands does not constitute a DoS vulnerability of the communication
channel: it would be the same as a regular reader action. The attacker could
jam the channel, of course, but then he could not read out any tags, which is
the presumed reason he wants to cripple the RFID Guardian.
The other potential vulnerability is the limited RFID Guardian flash
memory. An attack on the flash memory may target any one of three data
structures: the tag ownership list, the tag presence list, or the scan audit
log. If an attacker with a battery-powered device simulated thousands of new
tags in an attempt to fill up the ownership list or the current list, the RFID
Guardian could warn the user about this abnormal activity.
Alternatively, the DoS attacker could try to fill up the audit logs. This
does not cause a loss in protection of the owner's tags, but it certainly
hampers the RFID Guardian's auditing capabilities. The maximum rate at which
requests can be launched is determined by the bandwidth of the radio channel
and the minimum frame size, both of which are specified by the standard. The
data rate is 26.48 kbps. The minimum frame is (SOF, 32 data bits, EOF) which
takes 1.322 ms followed by a mandatory silence of 320.9 µs, which works
out to a maximum of 613 requests/sec.
An audit log entry contains the index of the tag being targeted, an index
of the context, the command and a timestamp, which results in 2+2+1+4 = 9
bytes bytes. With 613 requests/sec, the attacker can fill up 5517 bytes of
flash memory per second. The RFID Guardian prototype has 16 MB of flash, of
which 14 MB is available for logging. Thus a maximum-speed attack would need
42 consecutive minutes of blasting away at full speed to fill the memory.
Needless to say, the RFID Guardian should be sounding an alarm long before the
memory begins to fill up, thus fulfilling its job of warning the user of an
attack. Besides, flash memory is very cheap: another 16 MB might would add
less than 2 dollars to the production cost.
|Tool Name||Tag emulation (SW)||Tag emulation (HW)||Scan Auditing
|RFID Enhancer Proxy||Y||--||Y||Y||Y||--
|RFID Guardian||Y||Y||Y||Y||Y||Y |
Table 1: RFID Tag Emulators for Security/Privacy.
To summarize, the RFID Guardian seems immune to the DoS attacks that we
can identify, either because they would also disturb regular RFID interaction,
or because the RFID Guardian has enough resources to defend itself long enough
to alarm its owner after the threat has continued for some while.
In contrast to the aforementioned Denial of Service attacks, there are a
number of attacks that are successful against the RFID Guardian.
The RFID Guardian faces the `hidden station' problem, which is a geometric
problem that depends entirely upon radio ranges. However, we assume that an
attacker wouldn't be able to maintain this for long, so we only deal with the
``single reader'' problem in this paper.
RFID readers could potentially trace the collision space, using collisions
to resolve the IDs of RFID Guardian-protected protected RFID tags. We can
improve this situation by adding some extra collisions, which will cause the
algorithm to traverse a greater part of the ID space, making it look like more
than one protected tag is present.
Another weakness of the RFID Guardian is its inability to jam reader
queries. Selective RFID jamming only jams tag responses - not queries.
However, queries can modify an RFID tag in unauthorized ways, like performing
unauthorized data writes, or tag ``killing.'' Other mechanisms can protect
RFID tags from this, like temporary tag deactivation PETs (i.e., sleep/wake
modes). However, this remains problematic for low cost RFID tags that might
not support these other modes.
Finally, attackers can evade RFID Guardian protection by tracking people
using tags with pseudonyms. If the RFID Guardian has the pseudonym list (or
PRNG seed), it can correlate the IDs, remaining aware that it is dealing with
only one tag. If the RFID Guardian doesn't have the list (or seed), it will
think that it is dealing with multiple tags that are only observed once. The
RFID Guardian also has trouble dealing with tags working with unknown
Given how great the threat of RFID technology is to privacy, it is not
surprising that other researchers are also thinking about privacy defenders.
Probably the closest work to ours is the RFID Enhancer Proxy , which
shares some similarities with the RFID Guardian. The REP, too, is an active
mobile device that performs RFID tag security management, using a two-way
communications channel between the REP and RFID Readers. However, the REP has
some key differences from the RFID Guardian. The most important differences
are as follows. First, the REP explicitly ``acquires'' and ``releases'' RFID
tag activity, which the Guardian does not require. Second, the REP's two-way
communications channel is ``out-of-band,'' which requires extra
infrastructure. Third, the ``tag relabeling'' mechanism requires RFID tags to
generate random numbers (or have a sleep mode), which many of them cannot do
(or do not have). Fourth, the REP is purely theoretical; in contrast the RFID
Guardian has been implemented and tested.
RFID tag auditing (and cloning) are supported by several devices. FoeBuD's
Data Privatizer  will detect RFID scans, find and read RFID tags, and copy
data read to new tags. The Mark II ProxCard Cloner, by Jonathan Westhues
is a more general-purpose proximity-card cloner, that supports the emulation
of several RFID frequencies and standards (the HW is elegant, but the SW is
pending). Neither of these perform all the auditing, key management, access
control, and authentication functions that the RFID Guardian does.
A less sophisticated approach to privacy protection is to block scans
irrespectively of their originating reader. The Blocker Tag (Juels)
originated the concept of `RFID blocking' as a form of off-tag access control.
It is designed to abuse the tree-walk anticollision protocol, and RFID readers
are forced to traverse the entire id namespace when trying to locate RFID
tags. This approach does not analyze incoming scans, look up information in an
access control list, and depending on what it finds, take action as the RFID
Guardian does. Also, it has not been implemented. (A purely SW-based ``soft''
blocker tag has been implemented, but it expects RFID readers to self-regulate
An active device that can detect RFID scans is the M.I.T. RFID Field Probe
. It is a portable device, created by Rich Redemske at MIT Auto-ID Center,
that integrates an RFID tag emulator and sensor probe. The HW consists of a
semi-passive tag, a power level detector, and a helper battery. The RFID field
probe gives audio and visual representations of the field signal strength and
signal quality. However, its function is not to protect its owner's privacy,
but as a tool to help vendors determine where on their pallets to attach the
RFID tag to maximize signal strength for supply-chain management applications.
Consequently, it does not have anything like our software, which is the heart
of the RFID Guardian's privacy defense.
Several other RFID-based technologies support the concept of two-way RFID
communications. Near Field Communications  is a peer-to-peer RFID-related
communications technology. NFC devices can query RFID tags, and can also
communicate with other NFC-enabled devices. However, NFC devices cannot talk
with non-NFC enabled RFID readers and do not do privacy protection.
Finally, the RFID countermeasures described in Section 1.1 are all
complimentary to the RFID Guardian, in the sense that the RFID Guardian could
leverage them as part of its framework, for helping to provide personalized
access control. However, none of them are discrete devices that protect
If we are ever immersed in a sea of RFID chips, the RFID Guardian may
provide a life raft. This battery-powered device, which could easily be
integrated into a cell phone or PDA, can monitor scans and tags in its
vicinity, warning the owner of active and passive snooping. It can also do key
management, handle access control, and authenticate nearby RFID readers
automatically, taking its context and location into account, for example,
acting differently at home and on the street. Furthermore, it can manage
access to tags with sensitive content using Selective Jamming. No other device
in existence or proposed has all of these capabilities. The RFID Guardian thus
represents a major step that will allow people to recapture some of their
privacy that RFID technology is threatening to take away.
However, what we have described here is only one step. We intend to
further develop and improve the RFID Guardian by giving the prototype more
capabilities. These capabilities include support for more frequencies and
standards, improving the communication range, and simplifying the HW design.
We also intend to further develop the security protocols that are needed for
the authentication and key management facilities, thinking particularly about
interaction requirements with the surrounding RFID infrastructure.
On a more abstract level, the RFID Guardian addresses some of the
difficulties of security administration in a world of pervasive,
decentralized, low-cost, and low-power computers. Therefore, our paper not
only offers a solution to a practical modern-day problem, but also provides a
sense of how system administration may look in the future world of ubiquitous
The authors would like to thank Serge Keijser, Tim Velzeboer, Dimitris
Stafylarakis, and Chen Zhang for their technical contributions. We also thank
Anton Tombeur, Eduard Stikvoort, and Koen Langendoen for their friendly advice
This work was supported by the Nederlandse Organisatie voor
Wetenschappelijk Onderzoek (NWO), as project #600.065.120.03N17.
More information is available at the RFID Guardian project homepage at:
Melanie R. Rieback is a Ph.D. student at the Vrije Universiteit Amsterdam
in the Computer Systems Group. Her research interests include computer
security, ubiquitous computing, and Radio Frequency Identification. Melanie
has an MSc. in computer science from the Technical University of Delft, and in
a past life, she worked as a bioinformaticist on the the Human Genome Project.
Contact her at Dept. of Computer Science, Vrije Universiteit Amsterdam, De
Boelelaan 1081a, 1081 HV Amsterdam, The Netherlands;
Georgi N. Gaydadjiev was born in Plovdiv, Bulgaria, in 1964. He is
currently an assistant professor at the Computer Engineering Laboratory, Delft
University of Technology, the Netherlands. His research and development
experience includes 15 years in hardware and software design at System
Engineering Ltd. in Pravetz Bulgaria and Pijnenburg Microelectronics and
Software B.V. in Vught, the Netherlands. His research interest include:
embedded systems design, advanced computer architectures, hardware/software
co-design, VLSI design, cryptographic systems and computer systems testing.
Contact him at Computer Engineering Laboratory, Delft University of
Technology, Mekelweg 4, 2628 CD Delft, The Netherlands;
Bruno Crispo received an M.Sc. in computer science from the University of
Torino, Italy and a Ph.D. in computer science from the University of
Cambridge, UK. He is currently an Assistant Professor of Computer Science at
the Vrije Universiteit in Amsterdam. His research interests are security
protocols, authentication, authorization and accountability in distributed
systems and ubiquitous systems, sensors security. He has published several
papers on these topics in referred journals and in the proceedings of
international conferences. Contact him at Dept. of Computer Science, Vrije
Universiteit Amsterdam, De Boelelaan 1081a, 1081 HV Amsterdam, The
Rutger F. H. Hofman has an M.Sc. in Physics and a Ph.D. in Computer
Science from the Vrije Universiteit Amsterdam. He is a research programmer in
the Computer Systems group at the Vrije Universiteit. Rutger has done lots of
development and performance tuning for parallel and distributed systems, and
his current work focus is on security-oriented systems. Contact him at Dept.
of Computer Science, Vrije Universiteit Amsterdam, De Boelelaan 1081a, 1081 HV
Amster dam, The Netherlands; https://www.cs.vu.nl/~rutger.
Andrew S. Tanenbaum has an S.B. from M.I.T. and a Ph.D. from the
University of California at Berkeley. He is currently a Professor of Computer
Science at the Vrije Universiteit in Amsterdam. His research interests are
reliability and security in operating systems, distributed systems, and
ubiquitous systems. He is the author of five books that have been translated
in 20 languages, as well as the author of over 100 published papers. He has
lectured in over a dozen countries. Tanenbaum is a Fellow of the IEEE, a
Fellow of the ACM, and a member of the Royal Dutch Academy of Sciences.
Contact him at Dept. of Computer Science, Vrije Universiteit Amsterdam, De
Boelelaan 1081a, 1081 HV Amsterdam, The Netherlands;
 Hold off on that chip, says thompson,
 ISO/IEC FDIS 15693, Identification cards - contactless integrated
circuit(s) cards - vicinity cards, 2001.
 ECMA-340, Near field communication interface and protocol
(nfcip-1), Dec., 2004.
 EPCglobal, 13.56 MHz ISM band class 1 radio frequency (RF)
identification tag interface specification.
 Feldhofer, Martin, Sandra Dominikus, and Johannes Wolkerstorfer,
``Strong authentication for RFID systems using the AES algorithm,''
Workshop on Cryptographic Hardware and Embedded Systems, LNCS, Vol.
3156, Aug., 2004, pp. 357-370.
 Finkenzeller, Klaus, RFID Handbook: Fundamentals and applications
in contactless smart cards and identification, John Wiley & Sons, Ltd.,
 FoeBuD, Data privatizer, Jul., 2005, https://shop.foebud.org/product_info.php/cPath/30/products_id/88.
 Golle, P., M. Jakobsson, A. Juels, and P. Syverson, ``Universal re-encryption
for mixnets,'' Proceedings of the 2004 RSA Conference, 2004.
 Großschädle, Johann and Stefan Tillich, ``Design of
instruction set extensions and functional units for energy-efficient public-key
cryptography,'' Workshop on RFID and Lightweight Crypto, Jul.,
 Juels, Ari, ``Minimalist cryptography for low-cost RFID tags,''
The Fourth International Conf. on Security in Communication Networks,
LNCS, Springer-Verlag, September 2004.
 Juels, Ari, Ronald L. Rivest, and Michael Szydlo, ``The blocker tag:
Selective blocking of RFID tags for consumer privacy,'' Proceedings of the
10th ACM Conference on Computer and Communications Security, ACM Press,
 Juels, Ari, Paul Syverson, and Dan Bailey, ``High-power proxies for
enhancing RFID privacy and utility,'' Proc. of the 5th Workshop on Privacy
Enhancing Technologies, 2005.
 Karjoth, Günter and Paul Moskowitz, ``Disabling RFID tags with
visible confirmation: Clipped tags are silenced,'' Workshop on Privacy in
the Electronic Society, Nov., 2005.
 Lingle, Rick, ``MIT's economical RFID field probe,'' Packaging
 Melexis, Application Note: A power booster for
MLX90121, 001 ed., Apr., 2004, https://www.melexis.com.
 Melexis, MLX90121: 13.56 MHz RFID trans- ceiver, 006
ed., Dec., 2005, https://www.melexis.com.
 Minime and Mahajivana, ``RFID Zapper,'' 22nd Chaos Communication
Congress (22C3), Dec., 2005.
 Rieback, Melanie R., Bruno Crispo, and Andrew S. Tanenbaum, ``Keep
on blockin' in the free world: Personal access control for low-cost RFID
tags,'' Proc. 13th Cambridge Workshop on Security Protocols, Apr.,
 ---------, ``RFID guardian: A battery-powered mobile device for RFID
privacy management,'' Proc. 10th Australasian Conf. on Information Security
and Privacy (ACISP 2005), LNCS, Vol. 3574, Springer-Verlag, pp. 184-194,
 Spiekermann, Sarah and Oliver Berthold, ``Maintaining privacy in
RFID enabled environments - proposal for a disable-model,'' Workshop on
Security and Privacy, Conf. on Pervasive Computing, Apr., 2004.
 Vajda, Istv&225;n and Levente Butty&225;n, ``Lightweight
authentication protocols for low-cost RFID tags,'' 2nd Workshop on Security
in Ubiquitous Computing, Oct., 2003.
 Weis, Stephen, Sanjay Sarma, Ronald Rivest, and Daniel Engels,
``Security and privacy aspects of low-cost radio frequency identification
systems,'' Security in Pervasive Computing, LNCS, Vol. 2802, pp.
 Westhues, Jonathan, For anything: proxmarkii, Dec., 2005,
Note 1: Even these ``Guardian
aware'' readers still use standard RFID hardware and air
Note 2: Sidebands are not just an
RFID-specific phenomenon - they are also commonly used to
transmit information in radio and television broadcasts, long-distance
voice communications, and amateur radio.
