MCI-Java: A Modified Java Virtual Machine Approach to Multiple Code Inheritance

Maria Cutumisu, Calvin Chan, Paul Lu and Duane Szafron

Department of Computing Science, University of Alberta

{meric, calvinc, paullu, duane}@cs.ualberta.ca

Abstract

Java has multiple inheritance of interfaces, but only single inheritance of code via classes. This situation results in duplicated code in Java library classes and application code. We describe a generalization to the Java language syntax and the Java Virtual Machine (JVM) to support multiple inheritance of code, called MCI-Java. Our approach places multiply-inherited code in a new language construct called an implementation, which lies between an interface and a class in the inheritance hierarchy. MCI-Java does not support multiply-inherited data, which can cause modeling and performance problems. The MCI-Java extension is implemented by making minimal changes to the Java syntax, small changes to a compiler (IBM Jikes), and modest localized changes to a JVM (SUN JDK 1.2.2). The JVM changes result in no measurable performance overhead in real applications.

1        Introduction

Three distinct language concepts are used in object-oriented programs: interface, code and data. The motivation for separate language mechanisms to support these concepts has been described previously [14]. The goal of the research described in this paper is to explicitly support each of these three mechanisms in an extended Java language, to evaluate the utility of concept separation, and to potentially increase demand for separate language constructs in future languages.

Researchers and practitioners commonly use the terms type and class to refer to six different notions:

Unfortunately, most object-oriented programming languages do not separate these notions. Each language models the concept notion by providing language constructs for various combinations of the other five notions. Java uses interface for interface. However, it combines the notions of implementation, representation and factory into a class construct. Smalltalk and C++ have less separation. They use the same class construct for interface, implementation, representation and factory.

In this paper we will focus on general-purpose programming languages, so we will not discuss the extent notion, which is most often used in database programming languages [15]. We also combine concept with interface, to enforce encapsulation. Finally, we combine representation and factory, since representation layout is required for creation. This reduces the programming language design space to three dimensions:

We use the generic term type to refer to an interface, an implementation or a representation.

Inheritance allows properties (interface, implementation or representation) of a type to be used in child types called its direct subtypes. By transitivity, these properties are inherited by all subtypes. If type B is a subtype of type A, then A is called a supertype of type B. If a language restricts the number of direct supertypes of any type to be one or less, the language has single inheritance. If a type can have more than one direct supertype, the language supports multiple inheritance.

Interface inheritance allows a subtype to inherit the interface (operations) of its supertypes. The principle of substitutability states that if a language expression contains a reference to an object whose static type is A, then an object whose type is A or any subtype can be used. Interface inheritance relies only on substitutability and does not imply code or data inheritance.

Table 1 Support for single/multiple inheritance and concept separation constructs in some existing languages.

Implementation (code) inheritance allows a type to reuse the implementation (binding between an operation and code) from its parent types. Code inheritance is independent of data representation, since many operations can be implemented by calling more basic operations (e.g. accessors), without specifying a representation, until the subtypes are defined. Java and Smalltalk only have single code inheritance, but C++ has multiple code inheritance.

Representation (data) inheritance allows a type to reuse the representation (data layout) of its parent types. This inheritance is the least useful and causes considerable confusion if multiple data inheritance is allowed. Neither Java nor Smalltalk support multiple data inheritance, but C++ does.

Table 1 shows the separation and inheritance characteristics of several languages: Java, C++, Smalltalk, Eiffel [17], Cecil [6] and its descendant BeCecil [5], Emerald [20], Sather [22], Lagoona [12] and Theta [9]. This list is not intended to be complete. A more general and extensive review of type systems for object-oriented languages has been compiled [15]. Although there is growing support for the separation of interface from implementation/representation, the concepts of implementation and representation are rarely separated at present. We intend to change this. The major research contributions of this paper are:

Our modified multiple code inheritance compiler (mcijavac), modified JVM (mcijava), the code for the scenarios in this paper, and the code for the java.io example are available on-line as MCI-Java [16].

2        Motivation for Multiple Code Inheritance in Java

In this Section we motivate the use of multiple code inheritance using some classes from the java.io library. Java currently supports multiple interface inheritance. Consider the Java class RandomAccessFile (from java.io) that implements the interfaces DataInput and DataOutput, as shown in Figure 1 [1]. Since Java supports substitutability, any reference to a DataInput or DataOutput can be bound to an instance of RandomAccessFile.

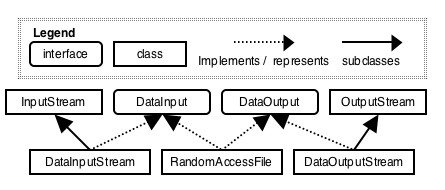

Figure 1 The inheritance structure of some classes and interfaces from the java.io library.

However, Java does not support multiple code inheritance. Much of the code that is in RandomAccessFile is identical or similar to code in DataInputStream and DataOutputStream. Although it is possible to refactor this hierarchy to make RandomAccessFile a subclass of either DataInputStream or DataOutputStream, it is not possible to make it a subclass of both, since Java does not support multiple code inheritance.

This causes implementation and maintenance problems. One common example is that duplicate code appears in several classes. This makes programs larger and harder to understand. In addition, code can be copied incorrectly or changes may not be propagated to all copies. There are many examples of code copying errors in various contexts. For example, code is often cloned (cut-and-pasted) in device drivers for operating systems [7].  If a bug is found in the repeated code, a fix must be applied to each clone.  However, if the same code is refactored into a single implementation in an object-oriented inheritance hierarchy, then any bug fix or new functionality would only have to be done once.

Two alternative techniques for reducing code duplication are mixins [1] and traits [21]. These approaches are discussed in Section 9, where they are contrasted with our multiple code inheritance technique.

2.1        Duplicate Method Promotion

The methods writeFloat(float) and writeDouble(double) are examples of duplicate methods that appear in both DataOutputStream and RandomAccessFile. There are also four methods that have identical code in DataInputStream and RandomAccessFile.

Once these duplicate methods have been found, how can code inheritance be used to share them? Figure 1 shows that we need a common ancestor type of DataInputStream and RandomAccessFile to store the four common read methods and a common ancestor type of DataOutputStream and RandomAccessFile to store the two common write methods. To share code, this ancestor cannot be an interface. It also cannot be a class, since we would need multiple code inheritance of classes and Java does not support it. In fact, it should be a multiple inheritance implementation. Figure 2 shows the common code factored into two implementations: InputCode and OutputCode. In this approach, an implementation provides common code for multiple classes.

The benefit of using implementations to promote duplicate methods may seem questionable to re-use only six methods. However, it is not only such duplicate methods that can be promoted higher in the inheritance hierarchy. Multiple code inheritance can also be used to factor some non-duplicate methods, if they are abstracted slightly. We have used three additional code promotion techniques to factor non-duplicate methods.

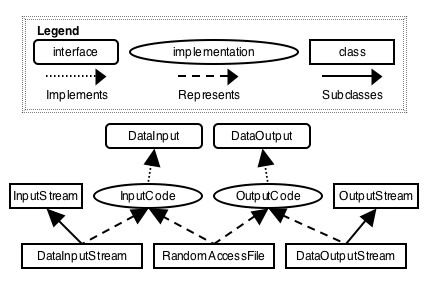

Figure 2 Adding implementations to Java, for multiple code inheritance.

2.2        Prefix Method Promotion

The first technique is called prefix method promotion. It applies when a class dependent computation is done at the start of the method and the rest of the method is identical. Consider the readByte() methods shown in Figure 3, from classes DataInputStream and RandomAccessFile. These methods differ only by a single line of code.

Figure 3 An example of using the prefix technique to promote methods.

Figure 3 shows a single common method promoted to an implementation called InputCode, which replaces both. This abstraction requires the creation of a new interface, Source, that contains one abstract method, read(). It also requires a method called source() to be declared in InputCode. A default method with code, return this, is created in InputCode and it is inherited by class RandomAccessFile. The implementation of this method is overridden in class DataInputStream with the code, return this.in. This prefix technique can be used to promote seven other methods in the same two classes.

2.3        Super-Suffix Method Promotion

The second technique is called super-suffix method promotion. It can be used to move similar methods from DataOutputStream and RandomAccessFile to the common implementation, OutputCode. Consider methods for writeChar(int) that appear in classes DataOutputStream and RandomAccessFile, as shown in Figure 4.

Figure 4 Examples of super-suffix methods that can be reused in different classes.

To replace these methods by a common method, we substitute each first line by a common abstracted line, analogous to the previous example. This abstraction requires the creation of a new interface, Sink, that contains one abstract method, write(int). It also requires a method called sink() to be declared in OutputCode.

However, there is another problem that must be solved before we can promote writeChar(int). This method has an extra line of code in class DataOutputStream, which does not appear in class RandomAccessFile. Fortunately, we can promote all lines except for this suffix line into a common method in OutputCode. This eliminates writeChar(int) from RandomAccessFile. However, in DataOuputStream we need to include the missing last line using a classic refinement technique that makes the super call shown in Figure 4.

Note that super(OutputCode) is not standard Java. It calls a method in the superimplementation, OutputCode, instead of calling a method in a superclass. In general, since there may be multiple immediate superimplementations, the super call must be qualified by one of them. This is one of the standard approaches to solving the super ambiguity problem of multiple inheritance and it will be discussed later in this paper. We can use this super-suffix technique to promote a total of six similar methods that appear in DataOuputStream and RandomAccessFile.

2.4        Static Method Promotion

The third technique for promoting non-duplicate methods is called static method promotion. For example, both DataInputStream and RandomAccessFile implement readUTF(). The class implementers must have realized that the two implementations were identical, so rather than repeating the code, they created a static method called readUTF(DataInput) and moved the common code to this static method in class DataInputStream. Then they provided short one line implementations of readUTF() in DataInputStream and RandomAccessFile that call the static method. Now that we have provided a common code repository (InputCode) that both DataInputStream and RandomAccessFile inherit from, we can eliminate the static method by moving its code to InputCode and eliminate the short methods that call this common code, since both classes now share this common instance method. This is an example where we did not actually remove repeated code. Instead, we replaced one code sharing abstraction (static sharing), that can cause maintenance problems, by a better code sharing mechanism (inheritance).

We conducted an experiment to determine how much code from the stream classes of the java.io libraries could be promoted, if Java supported multiple code inheritance. Table 2 and Table 3 show a summary of the method promotion and lines of code promotion respectively for each of our code promotion techniques.

Table 2 Method decrease in the Java stream classes using multiple code inheritance. The number marked with a * indicates that all lines of code (except for one line) in the method were promoted, so a single line method remained.

Table 3 Executable code line decrease in the Java stream classes using multiple code inheritance. All extra lines of executable code from the extra classes, Source and Sink, are also included in the third column.

For example, from Table 2 we see that there are 19 methods in class DataInputStream. Of these 19 methods, 4 were promoted since there are duplicate methods in class RandomAccessFile. An additional 8 methods out of 19 were promoted using the prefix technique illustrated in Figure 3.

Finally, one method was eliminated using static elimination. The instance method was promoted to InputCode and one static method was reduced from 40 lines to 1 line. Table 2 shows that the super-suffix technique resulted in 6 promoted methods out of 45 in class RandomAccessFile. The corresponding 6 methods in DataOutputStream (marked by an asterisk in Table 2) were not completely promoted. A shorter method was retained to make the suffix super call and to execute one or more additional lines of code.

For the line counts, we only counted executable lines and declarations, not comments or method signatures. However, more important than the size of the reductions is the lower cost of understanding and maintaining the abstracted code. Note that even though most of the method bodies of six methods move up from DataOutputStream to OutputCode, small methods remain that make super calls to these promoted common "prefix" methods. In Table 3, the third column indicates the lines that were added for an abstraction (Sink out = this.sink();) or a multi-super call (super(OutputCode).writeChar(v);). All executable lines of code in implementations InputCode and OutputCode are included in column 4 of Table 3.

Note that this abstraction required the creation of another new interface, Source, which is analogous to the interface, Sink, which was described earlier. The resulting inheritance hierarchy for the Stream classes is shown in Figure 5.

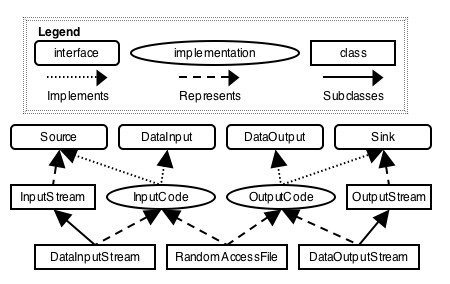

Figure 5 The revised Stream hierarchy to support multiple code inheritance.

The new interfaces Source and Sink only contain declarations of the read() and write() methods, so they contain no lines of executable code. They only exist so that they can be used as the static type of the variables in and out in the implementations InputCode and OutputCode.

Table 2 and Table 3 show that the use of multiple inheritance in Java can result in a significant reduction in the number of duplicate lines of code in library classes. This reduction can result in fewer errors during library maintenance and library extension and can therefore reduce maintenance costs [4].

3        Supporting Implementations in Java

Since Java has no concept of an implementation, we have three choices as to how to introduce it into Java: as a class (probably abstract), as an interface, or as a new language feature. We actually need to make this decision twice: once at the source code level and once at the JVM level. It is not necessary for the choices at these two levels to be the same.

At the source code level, an abstract class seems to be an obvious choice to represent an implementation. However, Section 2 clearly indicates the utility of multiple code inheritance. If implementations were represented by classes (abstract or concrete), we would need to modify Java to support multiple inheritance of classes. This would have the undesirable side-effect of providing multiple data inheritance, since classes (even abstract classes) are also used for data. Interfaces have the multiple inheritance we want but, if we use interfaces to represent implementations at the source code level, we would lose the use of interfaces for their original intent - specifications with no code.

Our solution is to introduce a new language construct, called an implementation at the source code level. However, at the JVM level, we decided to make use of the fact that interfaces already support multiple inheritance. Therefore, we did not introduce a new language concept at the JVM level. Instead, we generalized interfaces to allow them to contain code.

To implement our solution, we made independent localized changes to the compiler and to the Java Virtual Machine (JVM). Our compiler (mcijavac) compiles each implementation to an interface that contains code in the .class file. Our modified JVM (mcijava) supports execution of code in interfaces and multiple code inheritance. In addition, the JVM modifications to support multiple code inheritance are executed at load-time and the changes that affect multi-super are call-site resolution changes. Therefore, the performance of our modified JVM is indistinguishable from the original JVM. In fact, the SUN JDK 1.2.2 JVM uses an assembly-language module for fast dispatch and no changes were made to this module so the fast dispatch was preserved.

Our approach decouples language syntax changes from the JVM support required for code in interfaces and multiple code inheritance. For example, someone could propose a different language construct and syntax at the source code level and make different compiler modifications. In fact, our first implementation used a source-to-source translation approach with standard Java syntax and special comments to annotate interfaces that should be treated as implementations [8].

As long as a compiler or translator produces code in interfaces, our modified JVM can be used to execute the code. Similarly, someone can provide an alternate JVM that supports code in interfaces and use our language syntax and compiler to support implementations.

Although implementations support multiple code inheritance, they do not support multiple data inheritance, since they cannot contain data declarations. Multiple data inheritance causes many complications in C++. For example, if multiple inheritance is used in C++, an offset for the this pointer must be computed at dispatch time [11]. This is not necessary for multiple code inheritance. At first glance, it may appear that the opportunities for multiple code inheritance without multiple data inheritance are few. However, examples such as the one in Section 2 exist in the standard Java libraries and many application programs.

4        The Semantics of Implementations

To support implementations, we made two fundamental changes to the language semantics: the first to support multiple code inheritance and the second to support multi-super calls.

4.1        Semantics of Multiple Code Inheritance

The twenty-two scenarios and sub-scenarios in Figure 6 represent the common situations for inheriting code from implementations, including multiple code inheritance (note the Legend at the top of the Figure). The circled numbers and the letter f can be ignored for now, since they are related to JVM modifications that are discussed in Section 8. Other more complex scenarios can be composed from these scenarios. When the method alpha() is shown in a class or implementation, the scenario also holds if that method is inherited from a parent type. For example, in scenario 5, the alpha() method in class A may actually be inherited from a parent class or implementation. The semantics are consistent, regardless of whether a method is declared explicitly in a type or inherited from a supertype.

Some scenarios have two sub-scenarios that differ only in the order of supertypes, such as scenario 7a and scenario 7b. Syntactically, this is accomplished by varying the lexical order of the implementations. We have defined a semantics that is symmetric with respect to order, so the results are the same for both scenarios. In some languages with multiple code inheritance, such as CLOS [3], the order is significant. In our semantics, the order is not significant. However, the order-dependent sub-scenarios are included in Figure 6 so that the interested reader can trace the JVM modifications described in Section 8 to confirm that our algorithm produces symmetric inheritance semantics.

Note that when a method alpha() appears in a superclass, that superclass may actually represent the class Object. For example, scenario 5 can be used to illustrate the situation where class A represents the Object class and the alpha() method represents the toString() method.

For the scenarios in Figure 6, consider a call-site where the static type of the receiver is any type (implementation or class) shown in the scenario, the dynamic type of the receiver is class C, and the method signature is alpha().

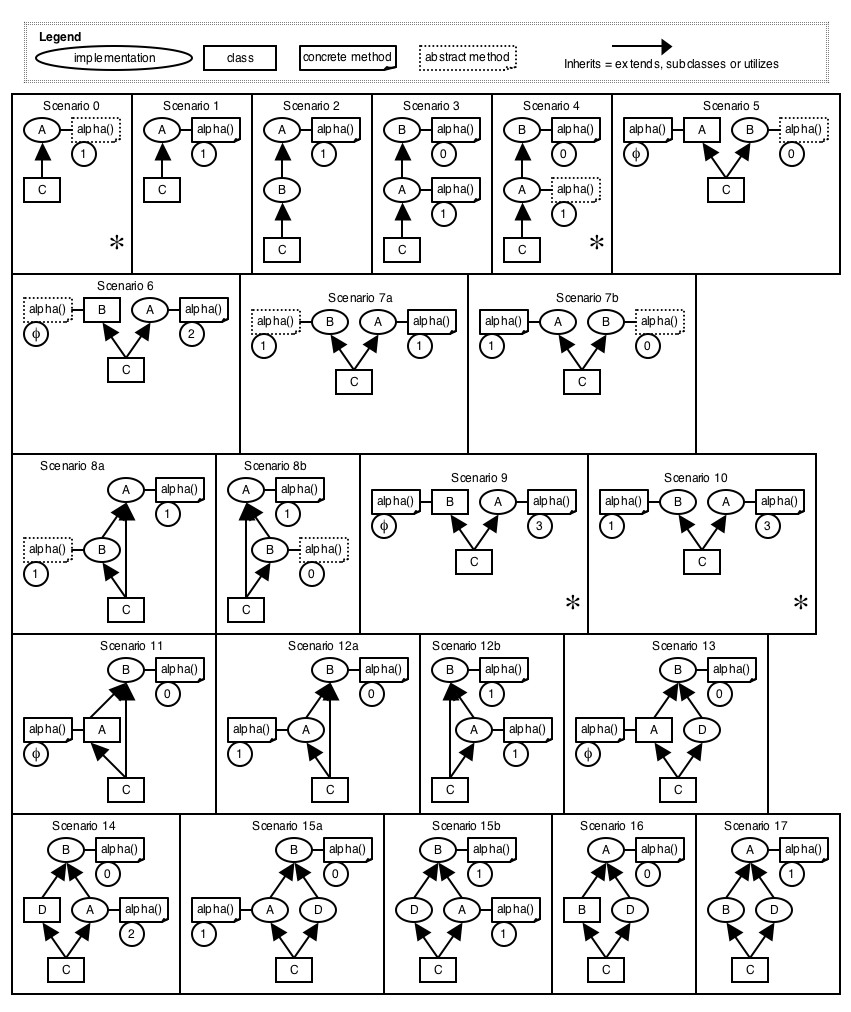

Figure 6 Inheritance scenarios for multiple code inheritance. The circles are explained in Section 8.

Scenario 0 mirrors the traditional case, where an abstract method (no code) in an interface or class is inherited in class C. Since our scenarios assume that the receiver is an instance of class C, some of the scenarios actually produce compiler errors. Such scenarios are marked with an asterisk (*) in the lower right corner. For example, scenario 0 would produce a compiler error, since it would force class C to be abstract and generate an error when the code tries to create an instance of class C. However, it is important to support such scenarios in the JVM with the correct semantics, since these scenarios can occur at runtime, if classes are recompiled in a specific order.

For example, scenario 0 can occur if implementation A is compiled with a non-abstract alpha() method, then class C is compiled and then implementation A is recompiled after changing alpha() to be abstract. If class C is not recompiled (legal in Java), then the JVM must throw an exception indicating that the code tried to execute an abstract method.

For scenarios 1 through 3, the code from implementation A is dispatched. The semantics mirror the single code inheritance semantics used by classes. Scenario 4 is an example of code inheritance suspension, where an abstract method in implementation A blocks class C from inheriting the code from implementation B. Scenario 4 mirrors the semantics for code inheritance from classes.

In scenarios 5 through 8, class C inherits code from a class or implementation along one inheritance path and an abstract method (no code) along a second path. In this case we define the code inheritance semantics for class C to inherit the code (in particular from A). Notice that scenario 5 directly mirrors the classic case where a class inherits code for a method from a superclass and implements an interface containing an abstract method with identical signature. Scenarios 8a and 8b illustrate an important principle of code inheritance suspension - an abstract method in a type can only suspend code inheritance along a path from a parent type through that type; it cannot suspend code inheritance along all paths from its parent type.

In each of scenarios 9 and 10, a multiple code inheritance ambiguity exists between two different implementations of alpha() in two parent types of class C. Therefore, the programmer is required to supply a local implementation of method alpha() in class C to clear this ambiguity. If the method in one of the parent types is desired, a method that makes a single super call to the appropriate parent can be used. Again, the order of inheritance is ignored and there is no preference for inheritance from a superclass over inheritance from a superimplementation.

Scenarios 11 through 15 are quite interesting cases. Two different multiple inheritance semantics could be defined for our language extension [19]. Strong multiple code inheritance semantics requires these scenarios to be inheritance ambiguities, since for each scenario, class C can inherit different code along different code inheritance paths. However, relaxed multiple code inheritance semantics states that if two types serve as potentially ambiguous code sources and are related by an inheritance relationship, the code in the child type overrides the code in the parent type. The code in the child type is called the most specific method. With these semantics, the inherited code in class C is the code provided by type A, for scenarios 11 through 15. We have implemented relaxed multiple code inheritance semantics in our compiler and JVM. It would be simple to implement strong semantics instead. In this case, a further decision would be required to resolve scenarios 16 and 17, since they inherit the same code along multiple paths. However, since we used the relaxed definition of multiple code inheritance semantics, these are not ambiguous scenarios and the code from implementation A is inherited by class C.

4.2        Semantics of Multi-super Calls

Even if a method is overridden, it is often desirable to invoke the original method in a supertype. However, due to multiple code inheritance, we have to choose among multiple supertypes in a super call. We saw an example of this in Figure 4. The method writeChar(int) in class DataOutputStream needed to call the overridden method code from its superimplementation OutputCode, as opposed to calling the method in its superclass, OutputStream. We call this generalization a multi-super call. We refer to a super call to a superclass as a classic super call to differentiate it from a multi-super call.

In C++, each multi-super call is a direct jump to a particular superclass that is specified lexically and it is resolved at compile-time (e.g. A::alpha()). If subsequent changes to the code result in a new class being inserted between the class that contains the call-site and the target class of the multi-super call, then any code in the intervening classes is ignored. This can result in a logic error if one or more of the inserted classes adds a method that performs some additional computations that are desired.

In the spirit of Java, we have defined a more dynamic semantics for multi-super than the static semantics defined for C++. For example, Java does not force the recompilation of sub-classes when a super-class is recompiled. Our modified Java compiler ensures that only a direct parent supertype can be used in the multi-super call. These multi-super semantics are consistent with Java's classic super mechanism, where the lookup always starts from the closest superclass and searches upwards for appropriate method code. If a new superclass is added, the call-site code does not need to be changed to take advantage of any "value-added" code that is inserted in new intervening classes.

Figure 7 shows the basic inheritance scenarios that define the semantics of multi-super. In each scenario, assume that a class or implementation (not shown in the scenario) is a direct subtype of implementation C and makes a multi-super call to implementation C. The scenarios in Figure 7 can be derived from the scenarios of Figure 6 by changing class C into implementation C. However, several of the scenarios have been excluded after this transformation, since it is impossible to have a class that is a supertype of an implementation. Therefore, scenarios 5, 6, 9, 11, 13, 14 and 16 from Figure 6 are excluded.

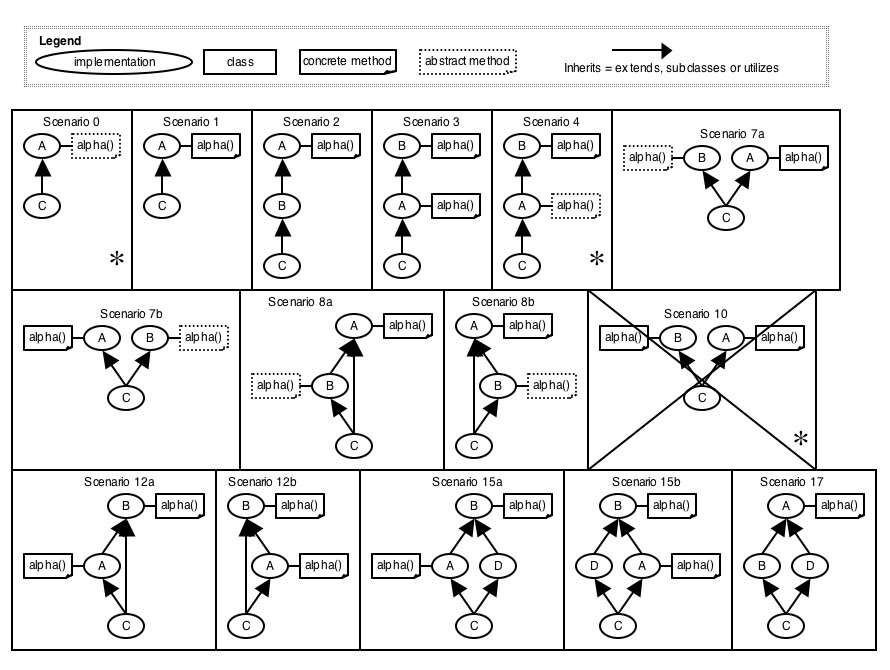

Figure 7 Inheritance scenarios for multi-super.
