Abstract

In this paper we present a prefetch technique, which incorporates a scheme similar to data streaming to minimize the response-lag. Unlike previous all or none techniques, we propose partial prefetch where the size of the lead segment is computed optimally so that only a minimum but sufficient amount of data is prefetched and buffered. The remaining segment is fetched if and only when the media is traversed. Thus, it delivers content without any increase in perceived response delay, and at the same time drastically minimizes unnecessary pre-load. The paper presents the scheme in the context of surfing in composite multimedia documents. It presents the technique and optimization scheme used for stream segmentation backed by analytical model and statistical simulation. We report remarkable increase in the responsiveness of web systems by a factor of 2-15 based on the specific situation.

Keywords: prefetch, streaming, multimedia.

1.      Introduction

The success and failure of many web systems depend on the surfer's perception of the systems responsiveness. Caching and prefetching are the two principal techniques, known for improving responsiveness for systems that involve correlated data communication. Both the techniques have been extensively used in hardware systems to offset memory access latency. Caching techniques have been studied with much interest for the Internet. Also recently much focus has been shifted to prefetching. Some insight can be gained by a comparison between the two domains.

Despite the similarity, the caching in the Internet domain seems to be a harder problem. Hardware cache operates in a more predictable environment, where the parameters such as page size, and access times in the memory hierarchy  are limited to few classes only. In comparison, the variability faced in the Internet is quite high. Apparently, the principle of locality is less conspicuous in the case of web. A number of recent studies, with various innovative caching schemes report caching efficacy in the range of 30-60% [4,7,10]. In comparison, a well-designed hardware cache can achieve a hit rate as high as 90% [1,18]. While several protocol issues are known to be involved in such performance degradation (such as validation requirement, and presence of Cookies and CGI scripts) but we also suspect one of the deeper reasons is the limited locality of reference. In the web, there is no short-term iterative construct such as 'while' of 'for' loops in the causal chain above. Consequently, it is not a complete surprise that the hit ratio is poorer here than in processor caches.

While, caching helps the case of repetitive references, prefetching reduces response lag for newer resources. It might be the case that prefetching may play much more important role in web than in hardware. A number of current studies, including ours, reported about another two times speedup with prefetching. Prefetching has also some additional complexity in the Web. Decision points mostly bifurcate the control flow tree in hardware due to the if-then construct. In contrast, the degree of branching in web is very high since there is no limit on the number of links in a page. In hardware quite often all the parallel branches are prefetched- and in some cases conditions can be pre-evaluated to determine the prefetch path. Neither is practical for web systems. We have also observed that prefetching often faces limitation due to excessive document transfer, which are never used later.

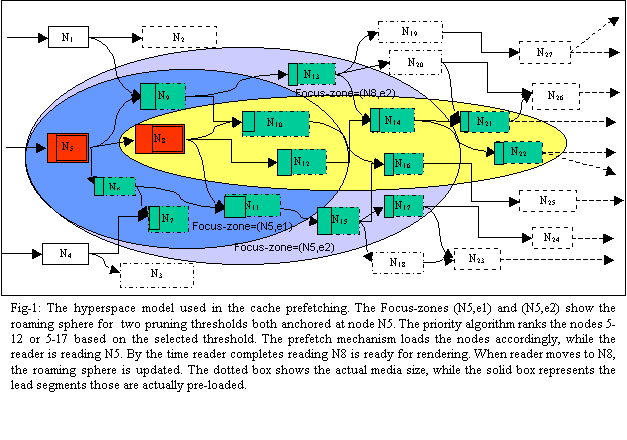

In this paper, we focus on this critical sub-problem-- ranking prefetchable date bytes. We discuss a technique, which provides optimum ranking of the prefetch nodes based on analytic considerations. In addition, we also show a technique where only a sub-part is fetched from the selected nodes. It cleverly uses the concept of fragment streaming to minimize the pre-load, without compromising the responsiveness gained by the prefetching in the first place. Each node is optimally divided into two parts-- the lead and the stream segments. During its operation, the system loads two parallel streams. In one, it fetches the stream segment of the current document, while in the other it prefetches the lead segment of candidate nodes.

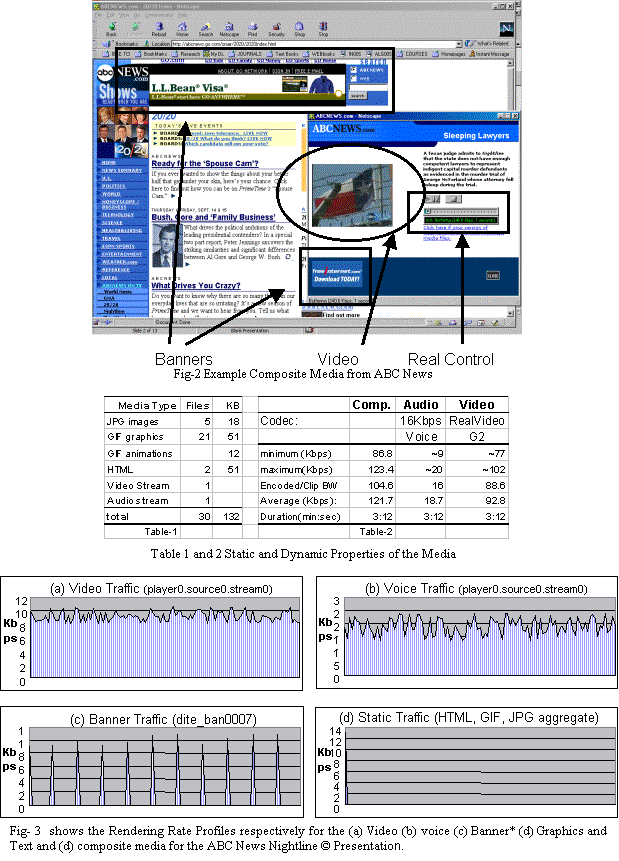

Also we present the prefetch technique for an environment, which considers composite multimedia documents. An example is given is Fig-2 which shows a snapshot of a typical multimedia material from ABC Newsã website, serving combination of news summaries, images, voice integrated video clip as well as GIF animated banner advertisements from single link. Web pages with multiple embedded entities of various modalities such as applets, banners, audio, video clips, are becoming very common in power sites where responsiveness is critically valued. These are now typically composed of various media elements with varying playback requirements. In this paper, we also demonstrate how the size and mix of the lead segment can be computed optimally for such composite multimedia documents so that only a minimum but the right composition of individual media elements from these pages are prefetched and buffered. This problem has not been addressed before to such level.

2.      Related Works

The Internet caching has been studied for quite some time [1,7,18]. It also has several implementations such as Harvest, Squid and CacheFlow [3,26]. The research in prefetching has gained momentum more recently [8,9,14]. In one of the pioneering studies, Kroeger et. al. demonstrated that with ample knowledge of future reference a combined caching and prefetching can reduce access latency as much as 60% [18,27]. The year after, Jacobson and Cao [14] proposed a prefetching method based on partial context matching for low bandwidth clients and proxies. Palpanas and Mendelzon [20] demonstrated that a k-order Markovian prediction engine similar to those used in image compression can improve response time by a factor of up to 2. Both these methods used variants of partial matching of context (past sequence of accessed references) for prediction of future web reference. These works suggested prefetching in-order of highest likely hood of access.

Pitkow and Pirolli [21] investigated various methods that have evolved to predict surfer's path from log traces such as session time, frequency of clicks, Levenshtein Distance analyses and compared the accuracy of various construction methods. This Markov model based study noted that although information is gained by studying longer paths, but

conditional probability estimate, given the surf path, is more stable over time for shorter paths and can be estimated reliably with less data. Also of interest is the work by Cohen and Kaplan [4] who cited problems from bandwidth waste in prefetch, and as opposed to document prefetch suggested pre-staging only the communication session- such as pre-resolving DNS, pre-establishing of TCP connection and pre-warming
