Archipelago: An Island-Based
File System For Highly Available And
Scalable Internet Services Minwen Ji, Edward W. Felten, Randolph Wang, and Jaswinder Pal Singh Department of Computer Science, Princeton
University {mji, felten, rywang, jps}@cs.princeton.edu Abstract
Maintaining availability in the face of failures is a critical requirement for Internet services. Existing approaches in cluster-based data storage rely on redundancy to survive a small number of failures, but the system becomes entirely unavailable if more failures occur. We describe an approach that allows a cluster file server to isolate failures so that the system can continue to serve most clients. Our approach is complementary to existing redundancy-based methods: redundancy can mask the first few failures, and failure isolation can take over and maintain availability for the majority of clients if more failures occur. The building blocks of our design are self-contained and load-balanced file servers called islands. The main idea underlying island-based design is the one-island principle: as many operations as possible should involve exactly one island. The one-island principle provides failure isolation because each island can function independently of other islands' failures. It also helps the file system scale with the system and workload sizes because communication and synchronization across islands are reduced. We implemented a prototype island-based file system called Archipelago on a cluster of PCs running Windows NT 4.0 connected by Ethernet. The measurement of micro benchmark shows that Archipelago adds little overhead to NTFS and Win32 RPC performance; while the measurement of operation mixes based on NTFS traces shows a speedup of 15.7 on 16 islands. 1. Introduction NT clusters are an important tool for large I/O-intensive applications such as file servers, Web servers, and other Internet services. A wide variety of research projects on cluster file systems have explored approaches to building cluster file systems that provide high availability and scalability. This paper discusses a new approach to maximizing availability on a cluster file server. We use the percentage of requests that succeed despite the failure of one or more servers as the availability metric, our goal in this work is maximize this percentage. There are two complementary approaches to maximizing availability. First, we can use redundancy to maintain complete availability in the face of a small number of failures; second, we can try to isolate failures in order to serve as many requests as possible even though some cannot be served. These approaches are complementary, since we can use redundancy to mask the first few failures, and then use isolation to cope with any additional failures. This paper describes an approach to cluster file system design that provides failure isolation. We divide the nodes in the system into groups called islands. An island might be a single node, or it might be a group of nodes that use redundancy within the island to mask failures. In either case, island-based design strives to serve as many client requests as possible when one or more islands have crashed or are unavailable. The main idea underlying island-based design is the one-island principle: as many file system operations as possible should require the participation of exactly one island. The one-island principle provides good failure isolation because each island can function independently of other islands' failures. In other words, the failure of 1 out of n islands in an island-based file system renders only 1/n data inaccessible. The one-island principle allows island-based systems to scale efficiently with the system and workload sizes because communication and synchronization across islands are reduced. Our motivation of failure isolation is analogous to the motivation of fault containment in Hive [27]. Hive, an operating system for large-scale shared-memory multiprocessors, attempts to "contain" a failed part so that it does not bring down other parts. The target application of an island-based file system is the data storage for those Internet services that prefer to serve as many clients as possible rather than to go entirely offline when partial failures are present, that are medium to large scale, e.g. tens to hundreds of PC's connected by commodity local area networks such as Ethernet, and that expect occasional node failures and network partitions. Examples include email, Usenet newsgroup, e-commerce, web caching, and so on. We evaluated the island-based design by statistical analysis of the access patterns of existing systems. The results show that the partial availability provided by island-based file system is useful to Internet services because a temporary partial failure can be made unnoticeable to the majority of clients. In one example, if 1 out of 32 islands is down for an hour, we expect that 93.8% clients during that hour will not notice the temporary partial failure. On average 99.8% operations involve a single island and hence do not require communication or synchronization across islands. We implemented a prototype of island-based file system called Archipelago on a cluster of PCs running Windows NT 4.0 connected by Ethernet. The measurement of micro benchmarks shows that Archipelago adds little overhead to NTFS and Win32 RPC performance; the measurement of operation mixes based on NTFS traces shows a speedup of 15.7 on 16 islands. To quantitatively motivate the potential advantage of island-based design, let us examine the temporary or permanent data loss ratios under partial failures in existing cluster file systems and island-based file systems with the same redundancy schemes. We modeled the data loss ratio in case of partial failures in cluster file systems (CFS) built on top of virtual storage layers, such as Frangipani [1] and xFS [4], under various redundancy schemes. The results show that CFS loses a significantly larger portion of data than the virtual storage it loses in a partial failure because the data in a surviving server will be inaccessible if any server containing a piece of metadata needed to access the surviving data fails. For example, with the loss of 1 out of 32 non-redundant virtual storage servers or 3.1% non-redundant virtual storage space, CFS is expected to lose 63.8% data in files and directories. The detailed analytic models can be found in our technical report [14]. We suggest that the temporary or permanent data loss of an existing redundant file system can be reduced by a failure isolation scheme without altering the underlying redundancy scheme. We observe that many existing redundant storage systems are divided into groups and that data redundancy is applied within groups, but not across groups. It results either from the nature of the redundancy scheme, such as mirroring pairs, or from performance optimization, such as RAID-5 striping groups [4]. By configuring each redundant group as an independent file system, we can always achieve better availability than by running a single file system on top of the whole storage system. We change the data loss example above by assuming that each of the 32 virtual storage servers is a RAID-5 single-parity stripe group of 4 physical nodes and that xFS [4] runs on the 128 nodes as a single file system. If we run an independent xFS in each group, we expect to lose only 3.1% vs. 63.8% data when we lose at least 2 nodes in the same group. The challenge is how to evenly, automatically and dynamically partition a single large file system into a cluster of independent components without causing inconsistency across components in the face of partial failures.
Figure 1 gives an overview of an island-based file system in a typical configuration. An island consists of a server process running on top of a local file system. Client applications view the island-based file system as a single system and access it through local file system switches and stubs. Islands and clients are connected by commodity local area networks such as Ethernet. Let us examine two important issues in island-based design, data distribution and metadata replication. 3.1
Hash-based data distribution We designed a new data distribution strategy for island-based file systems: data is distributed to islands at directory granularity by hashing the pathnames of the directories to island indices. We choose directory granularity rather than block, file or sub tree granularity because most file system operations involve a single directory and hence satisfy the one-island principle, and directories are finer grained than sub trees so as to allow load balance. We choose hashing instead of recursive name lookup because hash functions can be computed on the client machines without contacting any servers. We choose to hash pathnames instead of low-level integer identifiers such as inode numbers because pathnames are the only information that a client can possibly have without contacting any servers, and they are independent of internal representations of file systems. Clients determine which island to contact for a directory or a file in that directory by hashing the full pathname of the directory to an island index in two steps: first, hashing the pathname to a bucket (an integer) with a universal hash function [7]; second, hashing the bucket to an island index with an extendible hash table [8]. The universal hash function used in an island-based file system is a consistent mapping from a variable-length character string to a 32-bit integer and has good distribution in the output space independently of the input space. A universal hash function can evenly distribute an arbitrary set of directories to buckets; however, it does not have control on the workload distribution across directories; therefore, an additional level of indirection is necessary to handle the hot spots and dynamic load changes. A subset of the 32 bits is used as the index to the extendible hash table and the table entries are island indices. As load imbalance across islands increases or islands are permanently added or removed during system reconfiguration, the table entries are reassigned to islands to rebalance the load using a bin-packing algorithm. The reassignment is made monotonic, i.e. each island either loses data or gains data, but not both. Therefore, only a minimal amount of data needs to be migrated between islands. Inside each island, we store directories in a skeleton hierarchy. We call the file system running inside each island the internal file system. An internal file system can be an instance of any existing file system such as a local file system, a replicated file system or a cluster file system. The skeleton hierarchy in an island contains the directories hashed to this island index and their ancestor directories up to the root, and is stored in the unmodified internal file system as a normal tree. This way, islands can function independently of others' failures and we can leverage the functions of the internal file systems. The consequence of storing data in skeleton hierarchies is the replication of certain metadata or directory attributes. 3.2 Usage-based metadata replication Although it might not take much space to replicate metadata across islands if it accounts for a small portion of the entire system, updates to replicated metadata will have to be done in all replicas and hence violate one-island principle. Therefore, we use a usage-based adaptive replication scheme in the island-based design, i.e. we replicate metadata that is more frequently used to a higher degree. To help us explain the usage-based metadata replication, we introduce two terms, directory owner and parent owner. The directory owner of a directory is the island to which the directory is hashed. The parent owner of a file or directory is the directory owner of its parent directory. A file resides in exactly one island, its parent owner. A directory will be replicated in its parent owner, in its directory owner and in all the parent owners of its descendent directories. Therefore, the replication scheme can automatically adapt to the usage of the metadata. In particular, the root directory is replicated in all islands; files are not replicated across islands; intermediate directories are replicated to various degrees. However, only some directory attributes, not the directory contents, need to be replicated. Directory contents are the lists of names and addresses of sub directories and files. Only the directory owner keeps a complete copy of the directory contents; other replicas have partial contents or no contents. Changes to directory contents, e.g. adding or removing files, need to be done in the directory owner only. Directory attributes include name, size, security, time stamps, read-only tag, compressed tag, etc.. Changes to directory attributes will, however, affect multiple replicas. We want to replicate only those attributes that are needed when a descendent of the directory is looked up. We divide directory attributes into two categories, static attributes and dynamic attributes, based on their access patterns. A static attribute is more frequently read than written, and a dynamic attribute is more frequently written than read. Attributes such as name, security, read-only tag and compressed tag are static. Attributes such as size and time stamps are dynamic. We replicate the static attributes and do not replicate the dynamic attributes. We use a read-one-write-all policy to maintain consistency of the static attributes; the overhead of updates is acceptable since static attributes rarely change. We read and write dynamic attributes in a single island, the directory owner.
Figure 2 gives an illustration of the skeleton hierarchy and metadata replication. 3.3 Evaluation We evaluated the load balance and storage overhead in island-based file systems by statistical analysis of the contents of existing systems. Detailed measurements and analysis can be found in our technical report [14]. We summarize the results as follows: · Only a small portion of storage is needed for replicating directory attributes (0.1% to 0.5% per island or 0.3% to 7.7% in total in our experiments). · Load imbalance (average number of bytes per island dividing its standard deviation) resulted from the hashing algorithm in island-based file systems is low (0.0001 to 0.0279 in our experiments) in spite of the unbalanced load across directories or hot spots. 4.
Protocols and other design
issues To make the island-based design a viable solution, we need to address the issues of rebalance, consistency, recovery, etc. in addition to data distribution and metadata replication. We use standard approaches that are tailored to island-based file systems, as we will briefly describe below. As discussed in the previous section, the hash function in data distribution can be changed to rebalance the load across islands when load imbalance exceeds a threshold or when islands are permanently added to or removed during system reconfiguration. We use a two-phase commit protocol [16] in the rebalance procedure so that the hash table is updated in all islands atomically in the face of partial failures. In the first phase, load information (number of bytes) is collected from all islands and all islands are prepared for the rebalance. In the second phase, a new hash table is computed according to the load information, and is either updated in all islands or aborted if any island is inaccessible. The hash table is replicated in all clients of the file system as well as in all islands. The table has an entry per directory bucket and the number of buckets is a constant factor of the number of islands; therefore, the table size is proportional to the number of islands. (The universal hash function can map multiple directories to the same bucket. See Section 3.1.) A client is asked to update its hash table when any server detects its out-of-date copy using piggy-back information in regular operations. How often the rebalance procedure needs to be invoked depends on the load imbalance that can be tolerated. We expect that a reasonable threshold can be set so that the rebalance procedure is invoked at a non-disruptive frequency, e.g. once every weekend. A trace-driven study of the online reconfiguration of a web server running on an island-based file system shows that data migration in the rebalance procedure is made transparent to the web server in terms of both functionality and performance [14]. Therefore, we do not expect the rebalance procedure to have a noticeable impact on client operations. 4.2 Consistency protocol Since certain states, e.g. static directory attributes, are replicated across islands, a cross-island protocol is necessary to keep the replicas consistent in the face of island failures and network partitions. Cross-island operations in island-based file systems include CreateDir and RemoveDir, which involve two islands, SetDirAttr, SymLinkDir and DeleteLinkDir, which involve all islands, and RenameDir, which involves a variable number of islands depending on the directory to be renamed. The island-based design eases the consistency maintenance in two ways. First, the majority of operations involve a single island, hence do not require a cross-island protocol for consistency. Second, all cross-island operations on the same object are coordinated by a single island, i.e. the directory or parent owner; hence synchronization can be done with centralized control per object, which eases the protocol design. The single coordinator property of the protocol ensures that no conflicting updates will occur even in the face of network partitions, hence largely relaxes the synchronization semantics. We designed and implemented a protocol that uses logical clock synchronization [15], logging [10] and two-phase commit [16] for atomicity and serialization of cross-island operations. In particular, we choose to maintain the following invariants in the face of island failures and network partitions: 1. All operations on the same object are serialized, i.e. clients observe them in the same order in all islands. 2. All operations by the same client thread are serialized, i.e. clients observe them in the same order in all islands. 3. Operations by different clients can be serialized if the clients interact with each other by accessing the same object(s) in the file system. 4. The ordering relations are transitive, i.e. if operation 1 is observed to happen before 2 and 2 before 3 then 1 is observed to happen before 3. We designed and implemented a fairly standard recovery protocol for islands to recover from various combinations of failures back to consistent state. Cross-island operations are logged on disk if they cannot be committed in all involved islands due to island failures or network partitions. A failed or disconnected island will exchange logs with other islands upon reconnection to those islands. In particular, we choose to maintain the following invariants in the state transitions of a recovering island r: 1. All logged operations from other islands will be committed in r in the ascending order of their time stamps. That is, operations serialized in real time will be committed in the same order as if r had not failed. 2. No client requests or requests that indirectly affect clients' view of the system state will be processed in r until all logged operations have been committed in r. That is, the inconsistent state of r, if there is any, is made invisible to clients. 4.4 Other design issues Island-based file systems inherit most functions from their internal file systems, such as metadata structures, disk space allocation, I/O scheduling, server-side caching, locking, local security, recovery, etc.; therefore, we are not concerned about all the low-level details in file system design and implementation. We extended certain functions, such as symbolic links and renaming directories, to adapt to the island-based environment. Interested readers should refer to our technical report for more information about the design, implementation, and evaluation of our prototype [14]. We have implemented a prototype of island-based file system called Archipelago on a cluster of Pentium II PCs running Windows NT 4.0. NTFS [13] is used as the internal file system. NTFS uses extensive caching and name indexing for better performance and logs metadata changes for local recoverability. NTFS can be configured to run on a group of disks with parity striping for data redundancy. An Archipelago server runs on each machine and forms an island. Each client accesses files through a local stub, which forwards the request to a server through Windows remote procedure call (Win32 RPC). The server is implemented as a user-level process. For expediency, our prototype client is implemented as a stub .dll that redirects requests for Archipelago files directly to servers, bypassing the in-kernel file system drivers. This solution is adequate for experimental purposes, although it does not provide total seamless integration with existing applications. A more complete solution would implement a full installable file system driver [20]. We believe the performance difference in these two solutions to be negligible compared with the time to service file system requests in a distributed file system. The server and stub are implemented in C++, and consist of 3088 and 5415 lines of code, respectively. The server program is linked with the stub library for code reuse purpose. In addition, there are 24042 lines of automatically generated C code for RPC and system call interception. In this section, we present the selected measurements to answer the following questions. 1. How many clients will likely notice a partial failure in an island-based system? (Section 6.1) 2. What is the overhead of island-based design in simple cases? (Section 6.2) 3. How many operations require cross-island communication and synchronization? (Section 6.3) 4. How do cross-island operations affect the overall scalability of an island-based file system? (Section 6.4) 6.1 Impact of partial availability on web clients The effective availability of an island-based file system with partial failures depends on the number of distinct directories that clients access because a partial failure in the system causes a random set of directories to be inaccessible.
We compute the histograms of clients and requests by the distinct directories they touched from the access logs of the web server running on our site [24]. We assume that the island-based file system acts only as a content provider to the web server, i.e. accesses to control information or executables of the web server itself do not count in our statistics. We group the HTTP requests into clients by the hostnames or IP addresses in the requests, and within each client, we group requests into directories by the URLs in the requests. We compute the histograms from two months' traces, July 1998 (137248 clients and 1304975 requests in total) and January 1999 (166804 clients and 1297428 requests in total), using a time window size of an hour. The results, in Figure 3, show that the largest portion (48.3%) of clients accessed only 1 distinct directory during every hour and the largest portion (17.9%) of requests were issued by clients who accessed 2 distinct directories during every hour. Requests are more scattered across bins in the histogram because larger bins have more accesses and hence more weights. We computed the histograms by dividing the traces into other time windows ranging from 30 minutes to 8 hours, but there was no significant difference across time windows.
Given the statistics of distinct directories, we compute the expected availability of the island-based file system for data, clients and requests, respectively, shown in Figure 4. Since the majority of web clients access a small number of distinct directories, the expected availability for this class of clients is high in spite of the fact that a partial failure in the system causes a random set of directories to be inaccessible. For example, if 1 out of 32 islands is down for an hour, we expect that 93.8% clients of the web server during that hour will not notice the temporary partial failure. In this section, we present the results of running single client micro benchmarks on Archipelago in various configurations. The machines used in our experiments have Pentium II 300 MHz processors, 128 MB main memories and 6.4 GB Quantum Fireball IDE hard disks for use by Archipelago. The PCs are connected by a 3COM SuperStack II 100Mbps Ethernet hub. The PCs run Windows NT Workstation 4.0 and the hard disks for Archipelago are formatted in NTFS. The set of micro benchmarks consists of 9 phases and each phase exercises one of the file system calls: CreateDir, SetDirAttr, CreateFile, SetFileAttr, ReadDir, WriteFile, ReadFile, DeleteFile and RemoveDir. The data set for the micro benchmarks is an inflated project directory that consists of 3600 directories, 3876 files and 154.4 MB of data in files. The 3876 files are stored in 540 directories and the rest of the directories are empty. Disk space is pre-allocated for each file in the CreateFile phase. The transferred block size in the WriteFile and ReadFile phases is 64 KB or the file size, whichever is smaller. Each test is run more than 3 times and the results shown in this section are the averages.

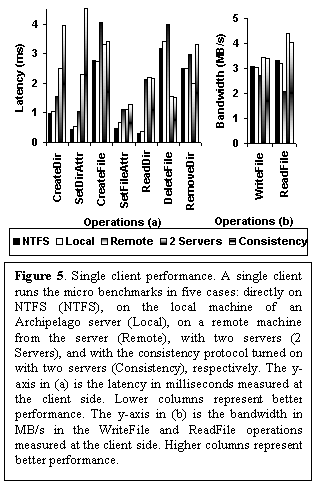

We ran the micro benchmarks with a single client in five cases: directly on NTFS (NTFS), on the local machine of an Archipelago server (Local), on a remote machine from the server (Remote), with two servers (2 Servers), and with the consistency protocol turned on with two servers (Consistency), respectively. Figure 5 shows the bandwidth in WriteFile and ReadFile and the response times in other operations, all measured at the client side. The difference between the NTFS and Local cases is caused by the overhead of computing hash functions. This overhead is low compared to the operation time itself. The difference between the Local and Remote cases is caused by the communication overhead (Win32 RPC on TCP/IP and 100 Mbps Ethernet) between the client and the server, i.e. 0.48 ms latency and 8.67 MB/s bandwidth in our experiments. There are two causes for the difference between the Remote and 2-Server cases: the cross-island operations such as CreateDir and SetDirAttr involve an additional server in the latter case and there was more total file system buffer cache in the latter case. The difference between the 2-Server and Consistency cases is caused by the overhead of the consistency protocol. The results show that island-based design adds little overhead to NTFS and Win32 RPC performance and that the consistency protocol slows down the cross-island operations but does not have a noticeable impact on one-island operations. We ran the same micro benchmarks with 1 to 16 servers and clients. The results, not shown here [14], indicate that the one-island operations scale linearly with the system and workload sizes. Two-island operations scale less efficiently and all-island operations do not scale because the consistency protocol requires 2*k uni-cast messages per cross-island operation, where k is the number of islands involved in the operation. Therefore, the overall scalability depends on the actual operation breakdown. 6.3 Operation breakdown in NTFS traces Previous studies of file system traces indicated that the cross-island operations are rare [17] [9] [18]. However, it is well known that file access patterns are highly dependent on the operating systems where the traces were taken. Since we implement Archipelago on Windows NT as opposed to UNIX, in which the Sprite and NFS traces were taken, we feel it important to study the file access patterns in NTFS. We choose 7 workstations running Windows NT 4.0 and collected statistics on operations by running a trace program on each workstation. The users of the workstations include three graduate students, a software engineer, a home user and several lab users. The trace programs were run for 2 to 7 days and collected 30,391 to 480,385 total events. The trace program forks a thread to wait on each file system related event such as FileAdded through the NTFS event notification interface ReadDirectoryChangesW [19]. We present the events in Table 1 and infer the operation breakdown from them.
|
