Design and Implementation of a Framework for Efficient and Programmable Sensor Networks

Athanassios Boulis, Chih-Chieh Han, and Mani B. Srivastava

Networked and Embedded Systems Laboratory (NESL), EE Dept. UCLA

{boulis, simonhan, mbs}@ee.ucla.edu



Abstract – Wireless ad hoc sensor networks have emerged as one of the key growth areas for wireless networking and computing technologies. So far these networks/systems have been designed with static and custom architectures for specific tasks, thus providing inflexible operation and interaction capabilities. Our vision is to create sensor networks that are open to multiple transient users with dynamic needs. Working towards this vision, we propose a framework to define and support lightweight and mobile control scripts that allow the computation, communication, and sensing resources at the sensor nodes to be efficiently harnessed in an application-specific fashion. The replication/migration of such scripts in several sensor nodes allows the dynamic deployment of distributed algorithms into the network. Our framework, SensorWare, defines, creates, dynamically deploys, and supports such scripts. Our implementation of SensorWare occupies less than 180Kbytes of code memory and thus easily fits into several sensor node platforms. Extensive delay measurements on our iPAQ-based prototype sensor node platform reveal the small overhead of SensorWare to the algorithms (less than 0.3msec in most high-level operations). In return the programmer of the sensor network receives compactness of code, abstraction services for all of the node’s modules, and in-built multi-user support. SensorWare with its features apart from making dynamic programming possible it also makes it easy and efficient without restricting the expressiveness of the algorithms.*

I. Introduction

Wireless ad-hoc sensor networks (WASNs) have drawn a lot of attention in recent years from a diverse set of research communities. Researchers have been mostly concerned with exploring applications such as target tracking and distributed estimation, investigating new routing and access control protocols, proposing new energy-saving algorithmic techniques for these systems, and developing hardware prototypes of sensor nodes.

Little concern has been given on how to actually program the WASN. Most of the time, it is assumed that the proposed algorithms are hard-coded into the memory of each node. In some platforms the application developer can use a node-level OS (e.g. TinyOS) to create the application, which has the advantages of modularity, multi-tasking, and a hardware abstraction layer. Nevertheless the developer still has to create a single executable image to be downloaded manually into each node. However, it is widely accepted that WASNs will have long-deployment cycles and serve multiple transient users with dynamic needs. These two features clearly point in the direction of dynamic WASN programming.

What kind of dynamic programmability do we want for WASNs? Having a few algorithms hard-coded into each node but tunable through the transmission of parameters, is not flexible enough for the wide variety of possible WASN applications. Having the ability to download executable images into the nodes is not feasible because most of the nodes will be physically unreachable or reachable at a very high cost. Having the ability to use the network in order to transfer the executable images to each and every node is energy inefficient (because of the high communication costs and limited node energy) and cannot allow the sharing of the WASN by multiple users. What we ideally want is to be able to dynamically program the WASN as a whole, an aggregate, not just as a mere collection of individual nodes. This means that a user, connected to the network at any point, will be able to inject instructions into the network to perform a given (possibly distributed) task. The instructions will task individual nodes according to user needs, network state, and physical phenomena, without any intervention from the user, other than the initial injection. Furthermore, since we want multiple users to use the WASN concurrently, several resources/services of the sensor node should be abstracted and made sharable by many users/applications.

One approach of programming the WASN as an aggregate is a distributed database system (e.g., [21]). Multiple users can inject database-like queries to be autonomously distributed into the network. The WASN is viewed as a distributed database and the query's task is to retrieve the needed information by finding the right nodes and possibly aggregate the data as they are routed back to the user. This approach ignores though the fact that information is not always resident in nodes but sometimes has to be retrieved by custom collaboration among a changing set of nodes (e.g., target tracking). Thus even though the database model is programming the network in the desirable way, it is not expressive enough to implement any distributed algorithm.

The other approach to WASN programmability that is used by our framework, and is gaining momentum lately, is the "active sensor" approach. This term was used in [20], to describe a family of frameworks that try to task sensor nodes in a custom fashion, much like active networking frameworks task data network nodes. The difference is that while active networking tasks are reacting only to reception of data packets, active sensor tasks need to react to many types of events, such as network events, sensing events, and timeouts. Active sensor frameworks abstract the run-time environment of the sensor node by installing a virtual machine or a high-level script interpreter at each node. For example, single instructions of the scripts (or bytecodes) can send packets, or read data from the sensing device. Moreover, the scripts (or bytecodes) are made mobile through special instructions, so nodes can autonomously task their peers.

The difficulty in designing an active sensor framework is how to properly define the abstraction of the run-time environment so that one achieves compactness of code, sharability of resources for multi-user support, portability in many platforms, while at the same time keeping a low overhead in delays and energy. Our proposal of such a framework, called SensorWare, employs lightweight and mobile control scripts that are autonomously populated in sensor nodes after a triggering user injection. The sensor node abstraction was made in such a way so that multi-user accessibility is given to all of the node's modules (e.g., radio, sensing devices) while also creating other services (e.g., real-time timers). Considerable attention was given to the portability and expandability of the framework by allowing the definition of new modules. By choosing the right level of abstraction the scripts are compacted to 10s-100s of bytes. For the non-trivial application examined in section V.A, the SensorWare script is smaller than the code of other frameworks with comparable capabilities in algorithm expressiveness (e.g. other active sensors scripts, binary images).

Our implementation and porting of SensorWare in several sensor node platforms shows that the size of the framework is small enough (<180Kbytes) to fit in most current sensor node designs. Moreover, extensive measurements in our prototype iPAQ-based sensor node platform reveal the delay and energy overheads of SensorWare. Every SensorWare script command has a delay less than 0.3msec showing the limits of real-time operation. Note that the script commands have a high-level of abstraction (i.e., each command performs multiple low-level operations). Experiments with both compiled and interpreted versions of the scripts are conducted in order to explore the energy trade-off space between different representations of an algorithm.

Section II discusses in depth the nature of WASNs, approaches to WASN programmability, and the general idea of our approach. Section III presents related work. Section IV presents SensorWare's architecture. Section V illustrates how is SensorWare ported to a platform and explains a moderately large script solving a real problem. Section VI presents our current implementation and the measurements we acquired through it. Finally, section VII concludes the paper.

II. Motivation and Background

A.   Wireless Ad hoc Sensor Networks

Figure 1 shows an example of a WASN, highlighting its main characteristics. An ad hoc network of miniature, resource-limited, static, wireless, sensor nodes is being used to monitor a dynamic physical environment. The use of low power communication and the need for diversity in sensing necessitates a multi-hop, distributed architecture [24]. Typically a user queries the network (consider the term “query” in the broad sense, not just database query), the query triggers some reaction from the network, and as the result of this reaction the user receives the information needed. The reaction to the query can vary from a simple return of a sensor value, to a complex unfolding of a distributed algorithm among some or all of the sensor nodes, such as a collaborative signal processing algorithm or a distributed estimation algorithm. Furthermore, there are multiple users who are transiently connected to the network; each having different needs in requested information.

Figure 1: Wireless Ad-hoc Sensor Network

These systems are quite different from traditional networks. First, they have severe energy, computation, storage, and bandwidth constraints. Second, their overall usage scenario is quite different from traditional networks. There is not a mere exchange of data between users and nodes. The user will rarely be interested in the readings of one or two specific nodes. The user will be interested in some parameters of a dynamic physical process. To efficiently achieve this, the nodes have to form an application-specific distributed system to provide the user with the answer. Moreover, the nodes that are involved in the process of providing the user with information are constantly changing as the physical phenomenon is changing. Therefore the user interacts with the system as a whole. The WASN is not there to connect different parties together as in the traditional networking sense but to provide information services to users.

As a consequence, efficiently designed WASNs operate in a fashion where a node's actions are affected largely by physical stimuli detected by the node itself or nearby nodes. Frequent long trips to the user are undesirable because they are time and energy consuming. This decentralized (i.e. not all traffic flows to/from user), autonomous (i.e., user out-of-the-loop most of the time) way of operating, is called “proactive computing” (as opposed to interactive) by David Tennenhouse [29]. We also adopt the term “proactive” throughout the paper to denote an autonomous and non-interactive nature.

Efficiently designed WASNs are application-specific distributed systems that require a different distributed proactive algorithm as an efficient solution to each different application problem. Given the nature of SNs, one can coarsely define two classes of problems in their design. First, the application-specific problem: How does one find the most efficient distributed algorithm for a particular problem? Second, the generic problem: How does one dynamically deploy different algorithms into the network, what is the programming model that will implement these algorithms, and what general support does one need from the framework? The second class of problems is the focus in this paper, emphasizing in the description of our own framework, i.e., SensorWare.

B.   Approaches to WASN programmability

As mentioned in the introduction, a popular approach to dynamic WASN programmability views the WASN as a distributed database. The data exist in the network and have to be found, probably processed in predefined ways (e.g., aggregated) and delivered to the user. Heidemann et al. [10], closely follow this model without explicitly employing traditional database terms and mechanisms. They focus on a data-driven low-level naming scheme based on attributes. A query describes the data it is looking for and directed diffusion [15] is used as the underlying routing protocol. The data can be processed with predefined filters as they are routed back to the user. Other systems, such as Cougar [1], focus more on transferring the SQL semantics of traditional databases to the distributed setting of WASNs. In this case, the naming system developed in [10] is replaced by an SQL equivalent. Each node is equipped with a fixed database query resolver. As queries arrive to a node, the local resolver decides on the best, distributed plan to execute the query and distributes the query to the appropriate nodes. The more recent and probably more advanced system that follows the database model is TinyDB [21] developed in Berkeley. Their main focus is aggregate queries (e.g., min, max, avg) thus they provide special optimizations for them (e.g., exploit the shared medium, perform hypothesis testing).

The strong point of the database approach is that it offers an intuitive way to extract information from a WASN hiding the complications of embedded and distributed programming. The model’s limitation though is that there are only pre-defined ways to process the data, which implies that only certain types of applications (i.e. applications that were studied by the specific researchers and are mainly aggregation applications) are addressed in the most efficient way by the database model. If a new way to process and react to the data is needed by application N&U (New-and-Unexplored), this can only be done at the user node (assuming that the human-controlled user node is easily upgradeable). Consequently, the algorithmic pattern to address application N&U under the database model will be an iteration of the generalized steps: 1) partially processed data arriving to the user node, 2) data undergoing custom processing and 3) based on the result a new database query is issued. In most cases, this is not the structure of the most efficient algorithm to solve an application problem.

C.   SensorWare

Our proposal seeks to remedy the limited flexibility problem at the expense of increased responsibility for the programmer. SensorWare provides a language model powerful enough to implement any distributed algorithm while at the same time hiding unnecessary low-level details from the application programmer and providing a way to share the resources of a node among many applications and users that might concurrently use the WASN. A distributed algorithm can be viewed as a set of collaborating programs executing in a corresponding (often time-varying) set of nodes. In SensorWare these programs are sensor-node control scripts. The sensing, communication, and signal-processing resources of a node are exposed to the control scripts that orchestrate the dataflow to assemble custom protocol and signal processing stacks.

Equally important is the role of SensorWare in the dynamic deployment of the distributed algorithms into the network. Usually this means that a distributed algorithm has to be incorporated in several sensor nodes, which in turn means that these sensor nodes have to be dynamically programmed. A user-friendly and energy-efficient way of programming the nodes keeps the user out-of-the-loop most of the time by allowing sensor nodes to program their peers. By doing so, the user does not have to worry about the specifics of the distributed algorithm (because the information on how the algorithm unfolds lies within the algorithm), and the nodes save communication energy (because they interact with their immediate neighbors and not with the user node through multi-hop routes). In order to facilitate the user-friendly and energy-efficient dynamic deployment of an algorithm the scripts are made mobile using special language commands and directives. A script can replicate or migrate its code and data to other nodes, directly affecting their behavior. The replication or migration of a script will be called “population” in the paper. The user "injects" the query/program into the network, and the query autonomously unfolds the distributed algorithm into the nodes that should be affected.

A usage scenario can be like the following: A user sends a query to the sensor network. The query is a script, a state machine in its simplest form, which is injected to one or more sensor nodes. The script will describe among other things how it is going to populate itself to other nodes. The process of population can continue depending on events and the current state. For example as the events of interest are moving to a different area, the scripts can move along with them, possibly trying to predict their next move. The populated scripts will collaborate among themselves in order to extract the information needed by the user, and when this information is acquired it is sent back to the user. Although the scripts are defining behavior at the node level, SensorWare is not a node-level programming language. It can be better viewed as an event-based language since the behaviors are not tied to specific nodes but rather to possible events that depend on the physical phenomena and the WASN state.

It should be also noted that this model comes at a cost, compared to the database model. The programmer has to explicitly take care of the distribution of the algorithm, so only the complications of embedded programming are hidden.

III. Related Work

SensorWare falls under the family of active sensor frameworks. Its closest relatives in the traditional networks realm are Mobile Agent frameworks. Other active networking frameworks exhibit similarities, such as the scripting abstraction. In this section we only consider work that tries to make WASNs programmable using active sensor concepts. Therefore, general mobile-agent and active-network platforms are not presented, nor any distributed database systems for WASNs are further discussed.  The interested reader can refer to [2] for a comprehensive comparison of SensorWare with mobile agent platforms, as well as with an active networking framework called PLAN [11].

An active sensor framework for WASNs is currently being developed in Berkeley under the name Maté. Maté [20] is a tiny virtual machine build on top of TinyOS [13]. TinyOS is an operating system, designed specifically for the Berkeley-designed family of sensor nodes, generically named "motes" [12][13]. Maté's goal is to make a WASN made of motes dynamically programmable in an efficient manner. This includes the capability to dynamically instruct a mote to execute any program, and expressing this program in a concise way. They achieve this by building a virtual machine (VM) for the motes. The virtual machine supports a very simple, assembly-like language, to be used for all needs of mote-tasking. Programs (called capsules) written on the VM language can be injected to any node and perform a task. Furthermore the capsules have the ability to self-transfer themselves by using special language commands. This model seems extremely like our own in SensorWare. Indeed, Maté shares the same goals as SensorWare as well as the same basic principles to achieve these goals. Differences appear though when one looks thoroughly into each platform's implementation.

Maté, like its substrate TinyOS, was built with a specific platform in mind: the extremely resource-limited mote. The main restriction for the developer of mote-targeted frameworks (such as an OS or a VM) is memory. The newest version of a mote called mica offers 128Kbytes of program memory and 4Kbytes of RAM. An older version called rene2 has 16Kbytes of program memory and 1Kbyte of RAM. Maté, with an ingenious architecture, supports both platforms. Being so memory constrained, Maté has to sacrifice some features that would make programming easier and more efficient. First, a stack-based architecture with an ultra-compact instruction set (all instructions are 1 byte) is adopted which is reminiscent of a low-level assembly language or the byte code of the Java VM. This kind of model makes programming of even medium-sized tasks difficult. Furthermore, due to the ultra-compact instruction set, many 1-byte instructions are needed to express a medium complexity algorithm, which in turn leads to large programs, compared to a higher-level, more abstracted scripting language. The size of programs is important since the code is transmitted/received using the radios of the nodes spending energy for every transmitted/received bit. Second, the behavior of a program when radio packets are received is rather rigid. A handler to process such events is essentially stateless in Maté. Thus, if a new pattern of packet processing is needed, a new handler has to be transferred through the network. This imposes an overhead in energy consumption and execution time. Third, because there is only one context (i.e., handler) per event (e.g., clock tick, reception of packet) multiple applications cannot run concurrently in one mote.

SensorWare cannot fit in the restricted memory of a mote. SensorWare targets richer platforms that we believe are going to be the mainstream in sensor node design in the immediate future. Such platforms (e.g., [26]) include a 1Mbyte of program memory and 128Kbytes of RAM. Having the luxury of more memory, SensorWare supports easy programming with a high-level scripting language, as well as concurrent multi-tasking of a node so that multiple applications can concurrently execute in a WASN. The programming model and properties of SensorWare are extensively discussed in section IV.

Particularly instructive is to study the relationship between SensorWare’s mobile scripting approach and the mobile code approach in Penn State’s Reactive Sensor Network [25] (RSN) project under DARPA’s SenseIT program [27]. RSN’s focus is on providing an architecture whereby sensor nodes can: (i) download executables and DLLs, identified by URLs, from repositories or their cache, (ii) execute the program at the local node using input data which itself may be remotely located and identified by a URL, and (iii) write the data to a possibly remote URL. The RSN model is in essence Java’s applet model generalized to arbitrary executables and data, and combined with a lookup service. The focus of RSN is quite different from SensorWare. Differences include: (i) RSN provides a general lookup and download service, (ii) RSN does not seek to provide a scripting environment with an associated sensor node resource model for use by scripts, and (iii) RSN’s notion of mobility is download oriented, as opposed to SensorWare’s approach of a script which can autonomously spawn scripts to remote nodes. RSN views sensor nodes as network switches with dynamically adaptable protocols, trying to directly map the motivation and methods of classical active networks into sensor networks. Unfortunately such an approach does not address the basic problems of sensor networks. Although one might be able to construct some distributed applications using the above scheme, by no means the creation and diffusion of distributed proactive applications into the network is supported by its architecture.

Finally, extremely relevant is the work that is being conducted in University of Delaware by Jaikaeo et al. [17] called SQTL (Sensor Querying and Tasking Language). Having the same goals as our research, but starting from a different point (database-like queries), the researchers end up with the same basic solution as SensorWare, namely a tasking language for sensor networks. To lively demonstrate the relevance to our work we are quoting an excerpt from [17].”We model a sensor network as a set of collaborating nodes that carry out querying and tasking programmed in SQTL. A frontend node injects a message, that encapsulates an SQTL program, into a sensor node and starts a diffusion computation. A sensor node may diffuse the encapsulated SQTL program to other nodes as dictated by its logic and collaboratively perform the specified querying or tasking activity.”

SQTL fits in a more general architecture for sensor networks called SINA (Sensor Information Networking Architecture) [28]. SINA uses both SQL-like queries as well as SQTL programs. Some of its main features include: 1) hierarchical clustering, 2) attribute-based naming, 3) a spreadsheet paradigm for organizing sensor data in the nodes. SQL-like queries use these three features to execute simple querying and monitoring tasks. When a more advanced operation is needed though, SQTL plays the essential role by programming (or “tasking” as the researchers from Delaware call it) the sensor nodes and allowing proactive population of the program. In SINA, SQTL is used as an enhancement of simple SQL-like queries. The framework is there mainly to support the queries not the mobile scripts. As a consequence, SQTL scripts do not have all the provisions that SensorWare scripts have. The most important of them are: 1) Rich sensor-node-related APIs (e.g. for networking, sensing). 2) Diverse rules for mobility. A SQTL script can only specify the nodes to be populated. SensorWare first checks if the script is already in the remote node and offers a multitude of possibilities depending on how many instances of the script are already running in the remote node. 3) Code modularity in order to share functionality and avoid redundant code transfers 4) Support for multi-user scripts. 5) Resource management in the presence of multiple scripts running in the node.

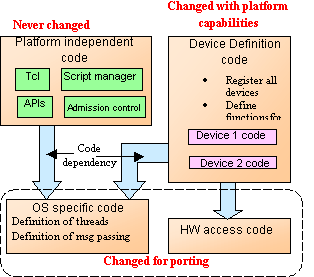

IV. Architecture
